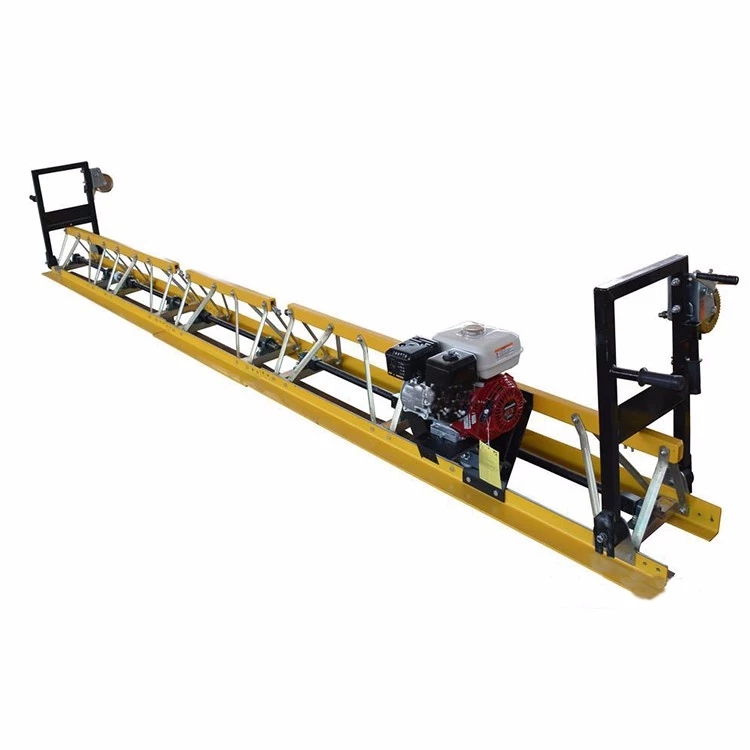

GASOLINE CONCRETE ROLLER PAVER
Use super universal unit and special bolt connect with single unit.If there is need to arch camber,easily adjust the camber 5 -10°,construction do not need to go back and forth and using a vibrator.
A trip can complete pulp, compaction and leveling, high efficiency, excellent effect.
Dynamic configuration:
Engine: Honda petrol engine GX160 GX270 GX390
Motor: high quality copper motor 4 KW 5.5 KW 7.5 KW
Length of the configuration:
Every half a meter as one specification,when customer orders,please chose the construction machinery width more than 0.5m. For example, if the road width is 10m, you should 10.5m wide bump-cutter machine.
Main Features
1).Intelligent handle control mode
2).Automatic walk----Reduce labor intensity, improve efficiency
3).Adjustable work length from 3m to 8m-Improve adaptability of construction
4).The vibrator rod has the system of automatic rise and fall , so the piling depth could be controlled by operator.And the rod could be lifted for easy walk when transferring site.
Machine Parts
Model :HW-219
Paving width:≥3m
Paving thickness:300mm
Walking speed:8-10m/min
Diameter of roller:219 mm
Exciting frequency:32Hz
Exciting force:5.52KN
Weight:1600kg
Size:L*1500*700mm
Main Features

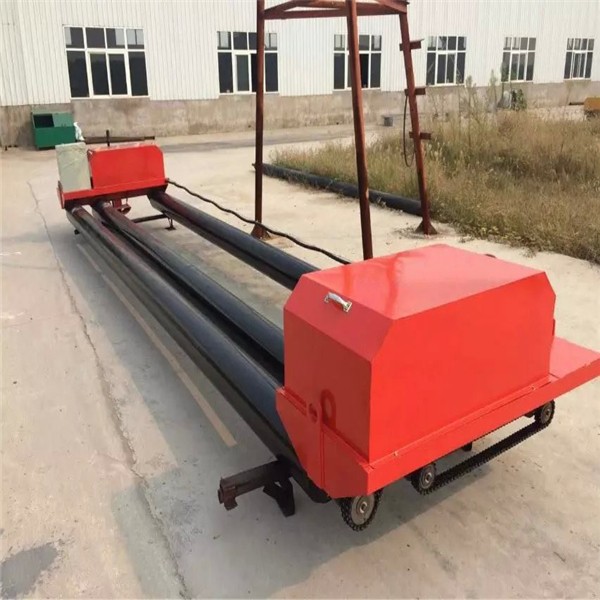

Model:HW-219A
Paving width:3-8m
Blectric Motor Power:3-7.5kw
Diesel Engine Power:30HP
Electric Generator Power:24kw
Paving thickness:200-300mm
Walking speed:9-12m/min
Diameter of roller:219 mm
Size:L*1800*1000mm
