- Cutting Depth:
- 160-185mm
- Power(W):
- 9HP
- Rotary Speed:
- 160-185mm
- Power Source:
- Gasoline Engine
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Warranty:
- 1 Year
- Condition:
- New
- Place of Origin:
- china
- Brand Name:
- HW
- Voltage:
- 220/380V
- Weight:
- 130KG
- Dimension(L*W*H):
- 930*565*1020mm
- Certification:
- ISO
- Running Speed:
- 10-13M/min
- Product name:
- mini concrete asphalt road cutter machine
- Depth Adjustment:
- Handle Rotation
- Water Tank capacity:
- 35L
- cutting width:
- 5-8mm
- depth adjustment:
- handle rotation
- Driving Mode:
- manual push
- disc size:
- 400-500mm
- max.speed:
- 3600rpm
- fuel tank:
- 6.1L
- packing size:
- 1000*540*840mm
- Supply Ability:
- 1000 Set/Sets per Week mini concrete asphalt road cutter machine
- Packaging Details
- standard wooden box for mini concrete asphalt road cutter machine
- Port
- Qingdao
- Lead Time:
Quantity(Sets) 1 - 20 >20 Est. Time(days) 15 To be negotiated

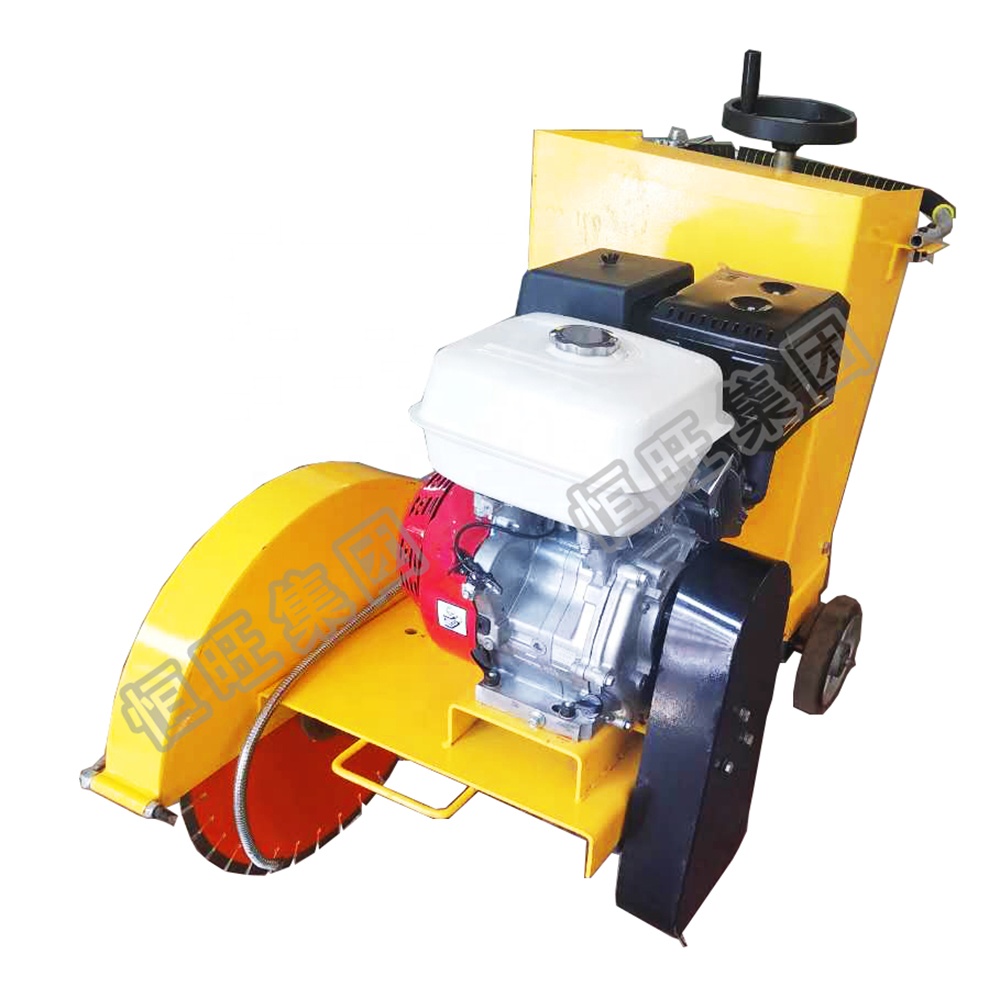

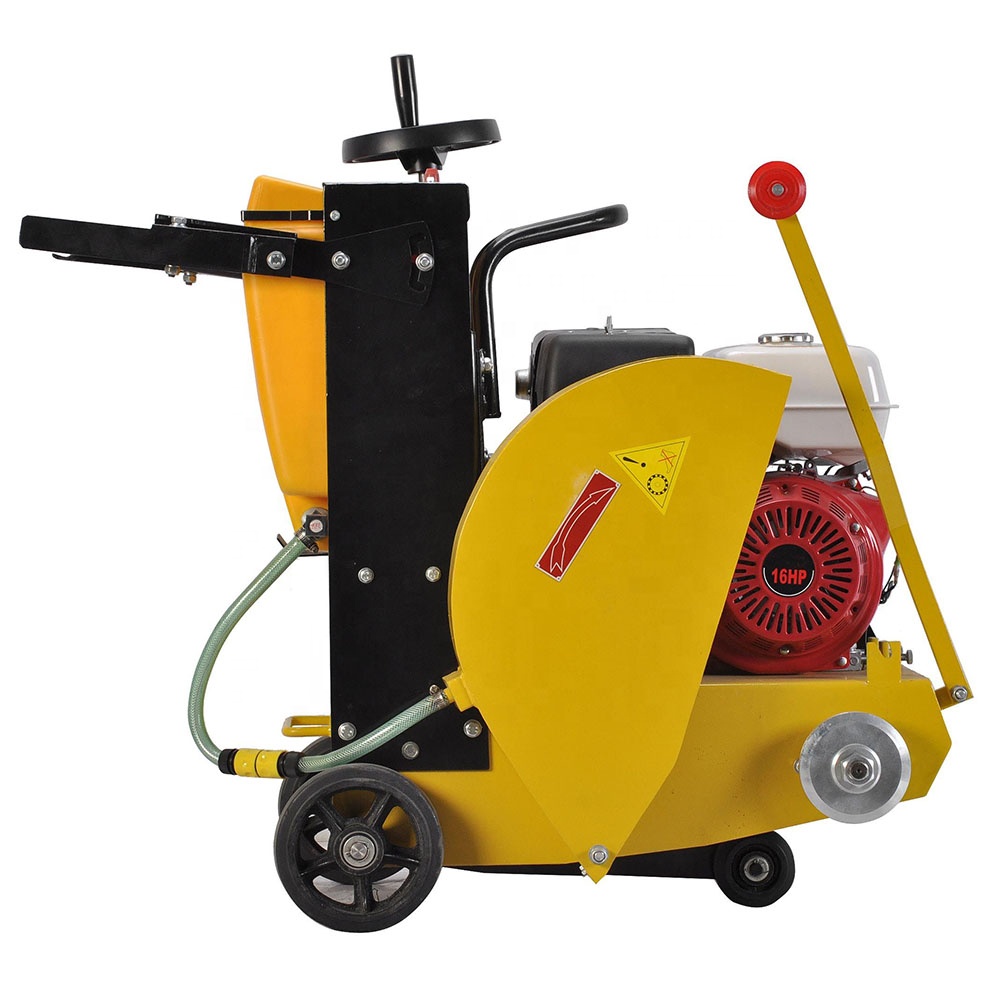

Mini concrete asphalt road cutter machine:
Concrete Cutter is used for cutting concrete, masonry, brick, asphalt, tile, and other solid materials. It is a walk-behind concrete cutter, can option the gasoline,petrol engines. The saw blade is diamond sawblade, popularly used for cutting concrete, asphalt, stone, etc. The enlarged bearing, reinforced power shaft.
Concrete road cutting machine can be a small hand-held cut-off concrete saw, a big walk-behind concrete cutter or other styles, besides the gasoline, petrol engines; it can also be powered by diesel, hydraulic or pneumatic pressure, or electric motors. The cutter blades used on concrete cutters are often diamond cutter blades to cut concrete, asphalt, stone, etc.
Main features of mini concrete asphalt road cutter machine:
1.Double water pipe---better cooling both side of blade
2.Rustless/ABS water tank---providing an optimum flow and volume of water for the blade
3.Super-rigid box frame---ensuring straight auts while resisting warping and vibration
4.Hinged front,lift-up blade guard--- to conveniently replace the diamond blade
5.Adjustable height handle---to esaily raise or lower cutting depth

SPECIFICATION FOR CONCRETE ASPHALT ROAD CUTTER MACHINE | |||
Model | HW-400 | HW-500 | HW-600 |
Length * Width*Height (mm) | 1200*400*820mm | 1980*630*900mm | 1815*540*800mm |
Blade Dimensions | 400mm | 500mm | 600mm |
Cutting Depth | 130 mm | 180mm | 230mm |
Cutting depth adjustment | Screw | Screw | Screw |
Cutting speed | 1-2.5m / min | 1-2.5m / min | 1-2.5m / min |
Propulsion | Hand push | Hand push | Hand push |
Water tank capacity | 38L | 38L | 49L |
Engine lubricating oil capacity | 1.1L | 1.5L | 1.8L |
Rated power | 8.5KW | 8.5KW | 20KW |
Rated speed | 3600rpm | 3600rpm | 3600rpm |
Idle speed | 1500±150rpm | 1500±150rpm | 1500±150rpm |
Air displacement | 390cm3 | 390cm3 | 620cm3 |
Fuel tank capacity | 6.0liters | 6.0liters | 6.0liters |
Fuel consumption | 1.1liters / hour | 1.1liters / hour | 2.2liters / hour |
Fuel grade | Above 90# unleaded gasoline | Above 90# unleaded gasoline | Above 90# unleaded gasoline |








Packing for mini concrete asphalt road cutter machine:
We will send the electric concrete road cutter machine picture which you have orderd, then packing it with standard export wooden box after you have confirmed the machine is ok .
Different machines" package will be different. We usually supply export wooden box ,carton box package. If it is a big machine and production line machine , it will be loaded in the container directly .
Delivery for mini concrete asphalt road cutter machine:
1. Delivery by sea :After it was delivered to the seaport . We will tell you the shipping time and arrival time . Finally, we"ll send you all original documents by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .
3.Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .

Mini concrete asphalt road cutter machine

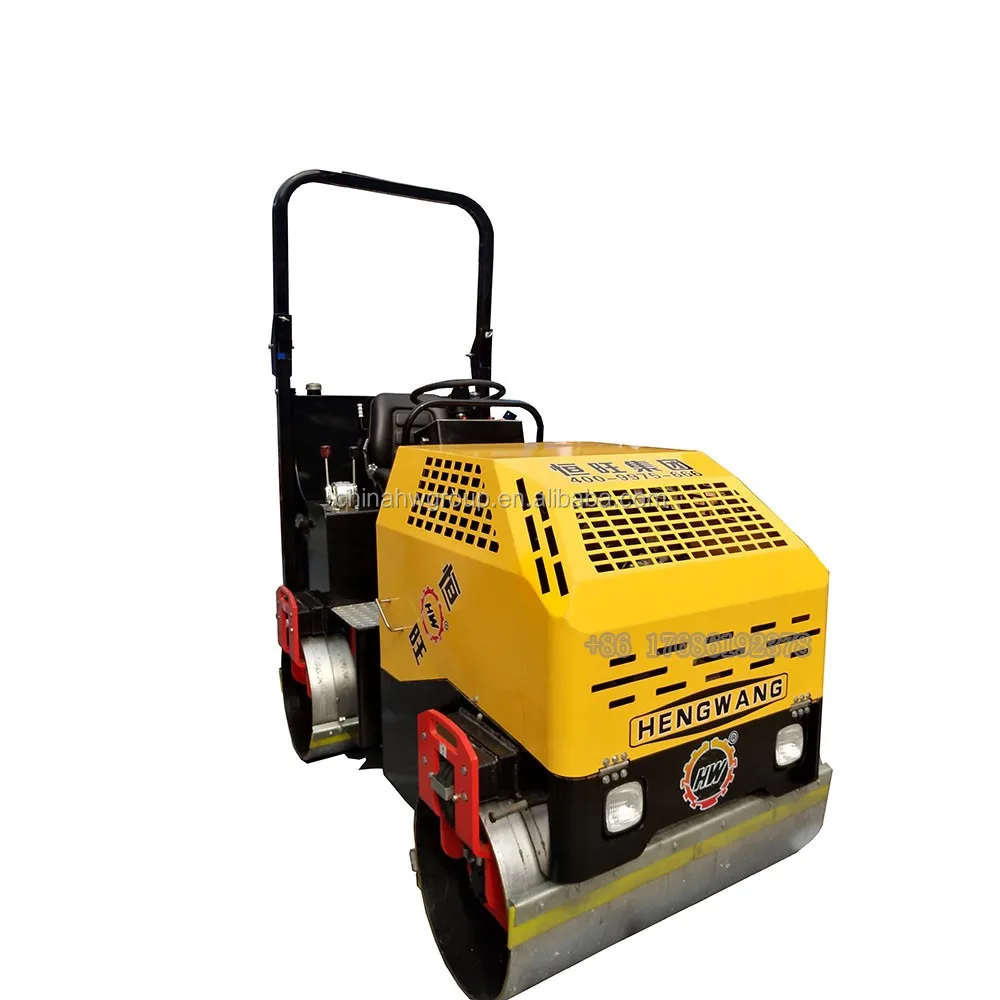

Our company manufacture all kinds of road construction equipment,such as ligh tower,road roller,tamping rammer and so on.If you also need this machine,pls contact us,we can give you a nice price.


Shandong Hengwang Group Co.,Ltd
Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of mini concrete asphalt road cutter machine. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.



MOQ,Payment,Loading port,price term,OEM
1.Payment : I:100% T/T
II:30% advaced and the balance paid before delivery
III:credit letter at sight
2.MOQ:1Pcs
3.Port of loading: Qingdao Port or others
4.Price term:FOB Qingdao price
5.OEM:we are pleased to be your OEM factory
