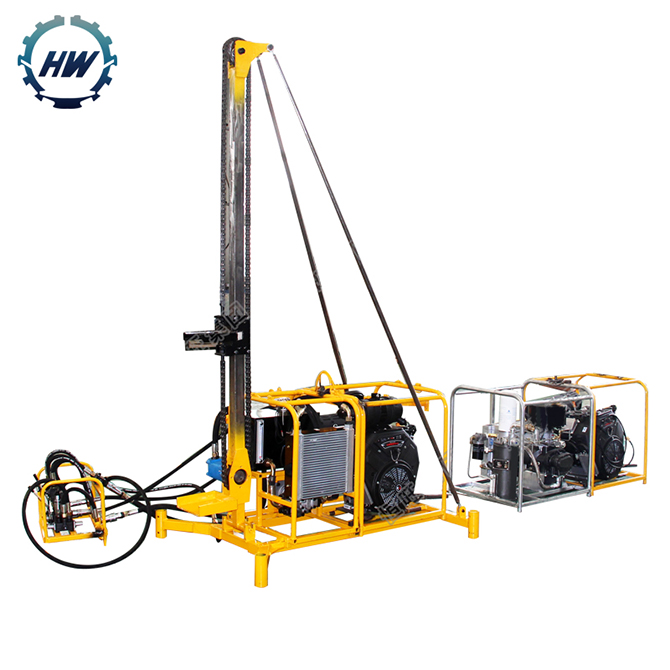

Small mine drilling rig water well
Click on the image to view the original image
Product： views：4Small mine drilling rig water well
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:50
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Drilling Speed:
1920r/min
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW-600
Voltage:
220V
Power(W):
28kw
Dimension(L*W*H):
1524*500x300mm
Certification:
CE ISO
Range of Spindle Speed(r.p.m):
26/3600
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, No after-sales service, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Usage:
Coal
drilling depth:
30M
Engine:
gasoline engine
Core Sample drill power::
35hp
with compressor:
3.5m3
Feature:
High Drilling Efficiency
Cylinder diameter::
90mm
Drill pipe:
42mm
Weight:
280kg
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
hard rock drill machine Packing within wooden case
Port
Qingdao Shanghai Tianjin Dalian
Lead Time:
Quantity(Sets)1 - 100 >100
Est. Time(days)8To be negotiated
Video Description
Product Description

Since:


Since the end of 2008.a new product that our company mountain drilling rig accounted for 90% of China"s market,best-selling degree is self-evident,snapping up to buy most of China"s mountainous region,for instance,Chong qing,Guizhou and other regions in Sichuan and so on.For the convenience of export,company gave further improvement,machine accessories mostly adopts imported parts,especially the proportional valve performance is superior.Welcome friends from all over the world to come to cooperate.Thanks.


Applicable terrain:

HW30 portable drill is mounted with hydraulic top-driven system with compact and strong structure to work in the toughest working condition. It can be used in any of the most difficult area that vehicles can not access, such as: sharp mountain, hill, heavy forest, etc. It has good performance in drilling on hard rocks in high efficiency.

Different selection of drilling methods:

HW30 has sufficient drilling capability in different drilling methods: air drilling, mud drilling, auger drilling or with DTH hammer.Can choose to use gasoline engine or diesel engine as the power of drilling rig.The reliability, efficiency and quality reputation has been set up among clients by several thousands units of portable drill rigs used in different countries.

Portability and disassembly:

The rig can be disassembly into different modules within 10 minutes. The weight of the heaviest module is less than 100kg. Helicopter lifting hook are mounted on each rig,can be carried in a mountain area by a man!
The drilling rig has nominated performance: in the area that altitude 0-3000m above sea level, -10°Cand +56°Cambient temperature in dusty environment.

Main features:

The rig is installed with safety, caution and environmental protection signs, and it meets with the requirement of HSE.
All the connections, no matter mechanical connection, or electrical wires, or hoses, are quick connections or quick couplings.
All quick-coupling/connectio
Belt tension strengthen facility to extend belt life.
Load sensing hydraulic system to provide enough power of hoisting and rotation.
Operating in the ambient temperature from –10℃ to +56℃ in dusty environment.
Low speed and compact power swivel
Two mast stabilizers with angular adjustment within 30°.
Adjustable legs to stabilize the drill rig.
High capacity for air flushing with a drag bit or percussion drilling in rock with DTH hammer.
Compliant with HSE requirements.


SPECIFICATIONS FOR DRILLING RIG MACHINE
Model
HW-600
Max. hoist capacity
15KN
Drilling depth
30-60m
MAX. pressure of hydrulic system
20Mpa
Drilling method
Air shock drilling
Spiral drilling and mud drilling(alternative)
Borehole diameter
Air shock drilling(mm)
Lithostratigraphy70-9
Loose stratum75-95
Mud drilling(mm)
75-90
Drill pipe(diameterxlength)
Air shock drilling(mm)
60*1500
Mud drilling(mm)
Power head
rated torque(N.m)
800-900
Drilling speed range(r/min)
0-135
Drilling machine pressure and lifting function
Feed pressure(N)
5500-6000
Lifting force of drilling tools (KN)
12-16
Maximum lifting speed of drilling tools(m/s)
0.71-0.81
Engine power(kw)
20/3600
Hydraulic system
Flow(L/min)
0-60
Working pressure(Mpa)
20
Air compressor unit
Model/configuration number
Fuel injection screw type/a set
Air volume(m3/min)
3.8
Working pressure(Mpa)
0.8
Engine power(kw)/Drilling speed9r/min)
26/3600
Detailed Images

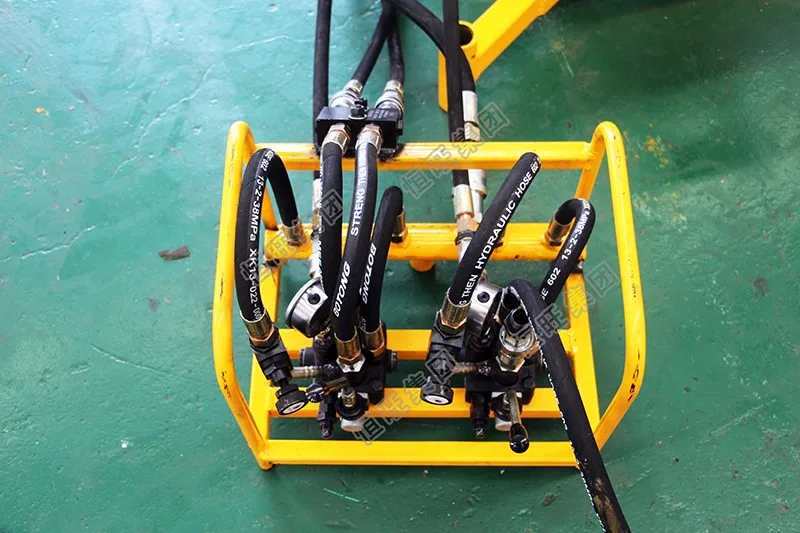

Hydraulic proportional valve

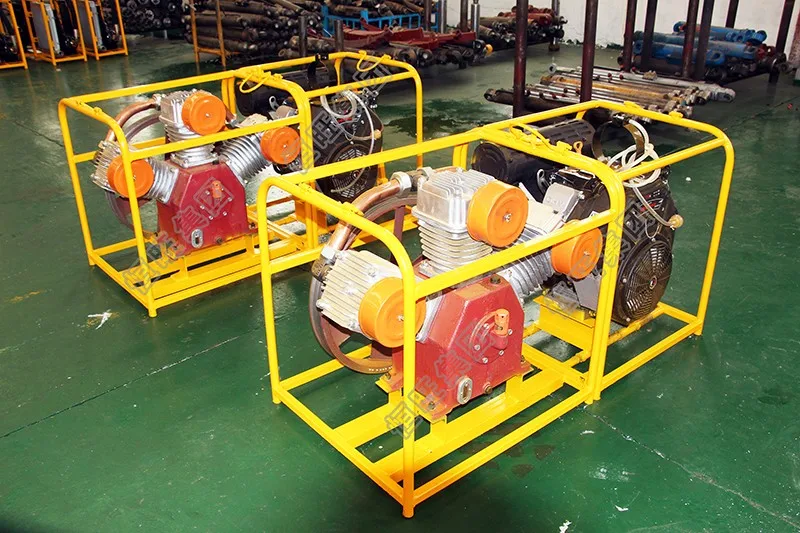

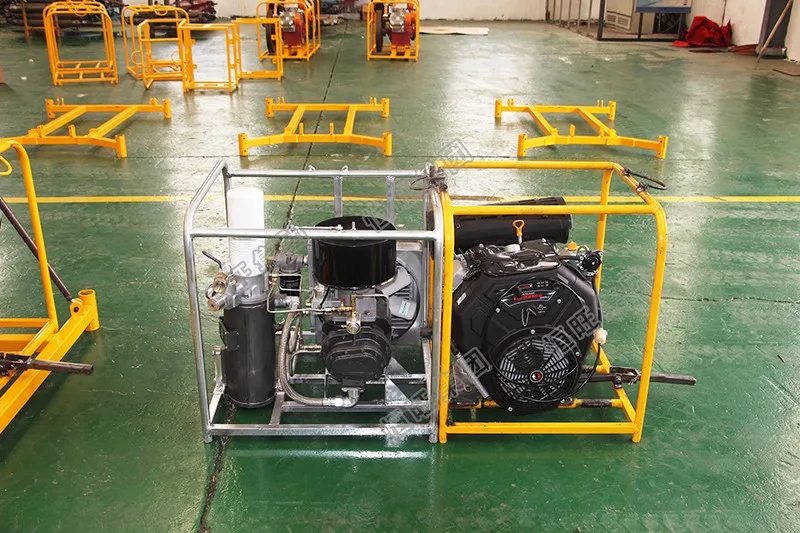

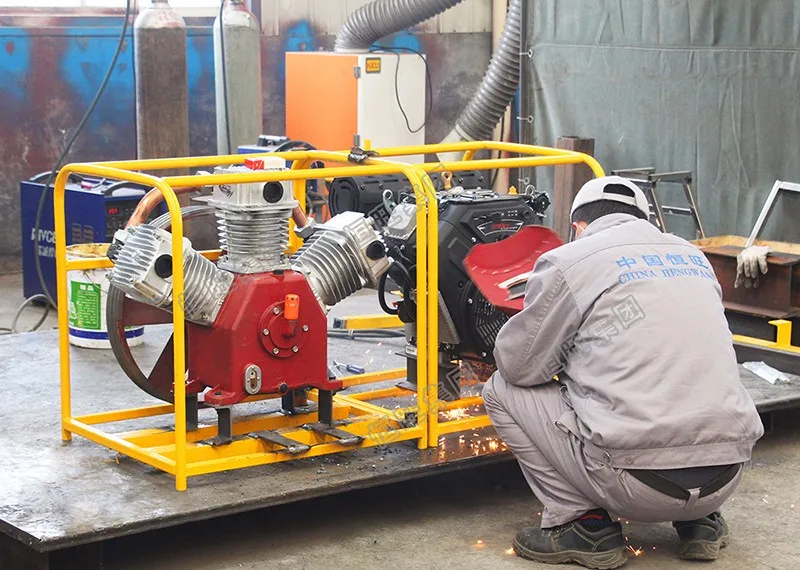

            Compressor


                          Hydraulic pump

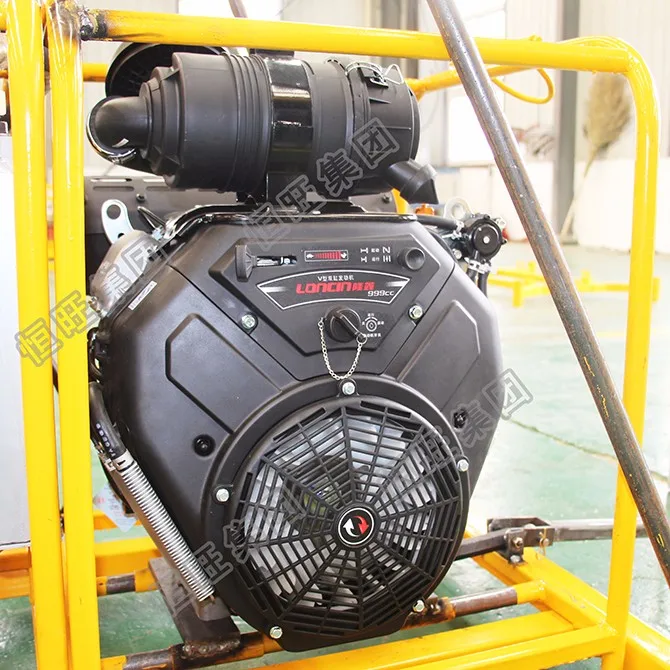

                        Gasoline Engine

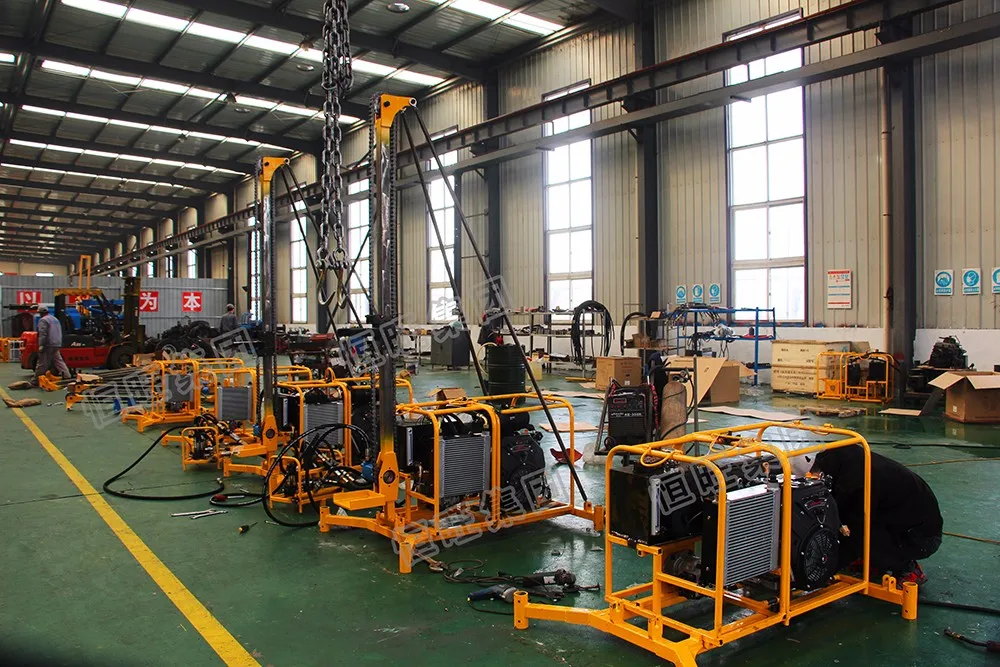

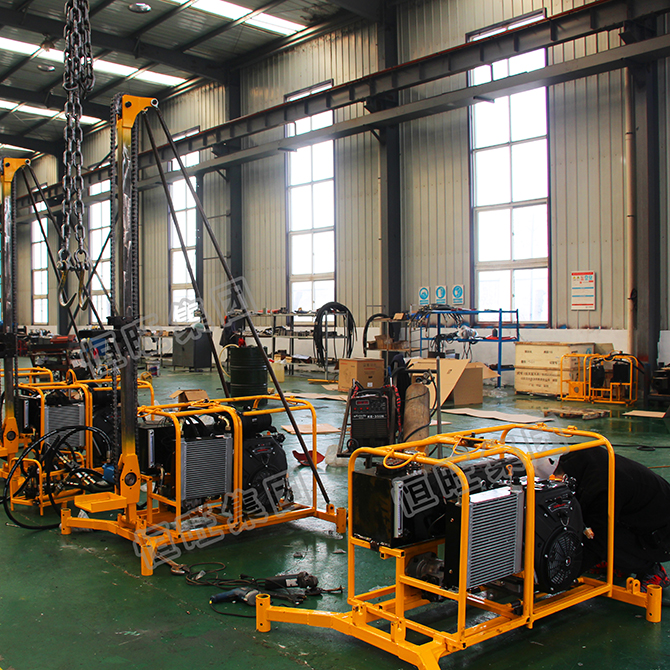

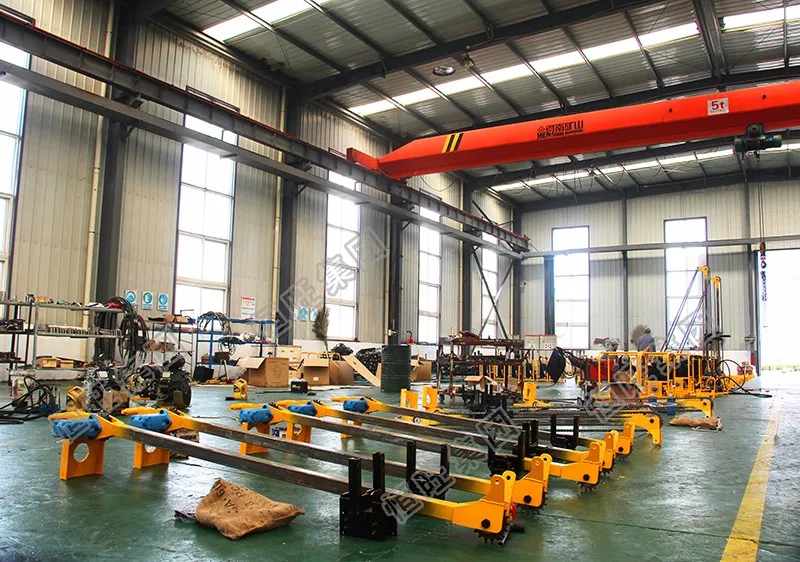

                               Assembling

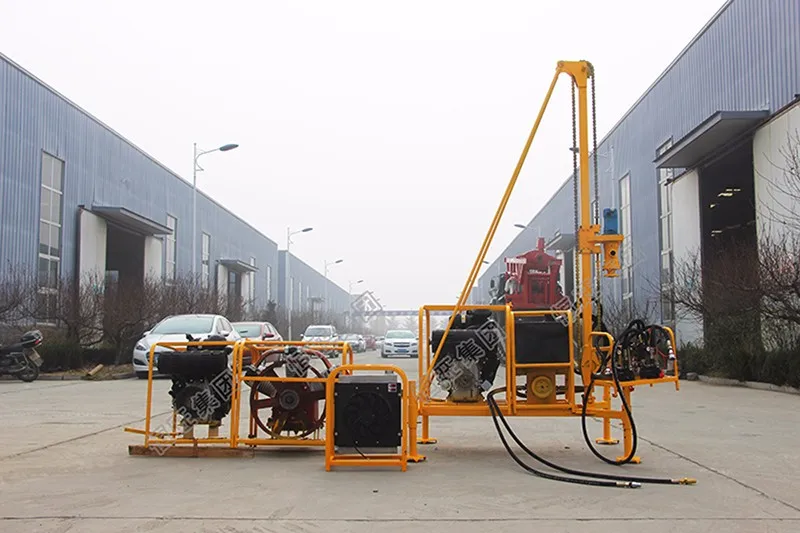

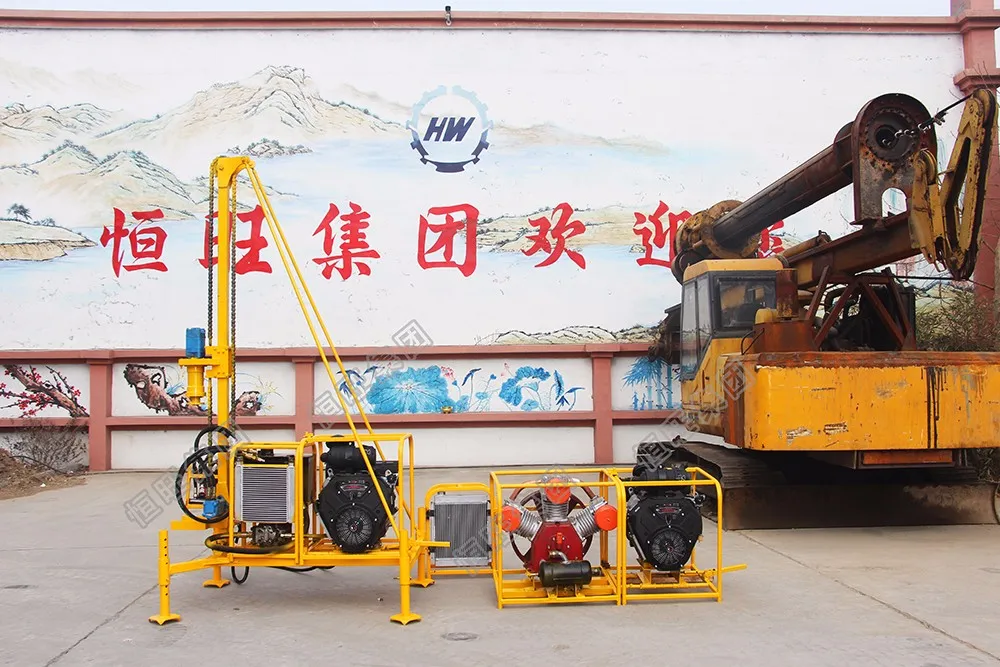

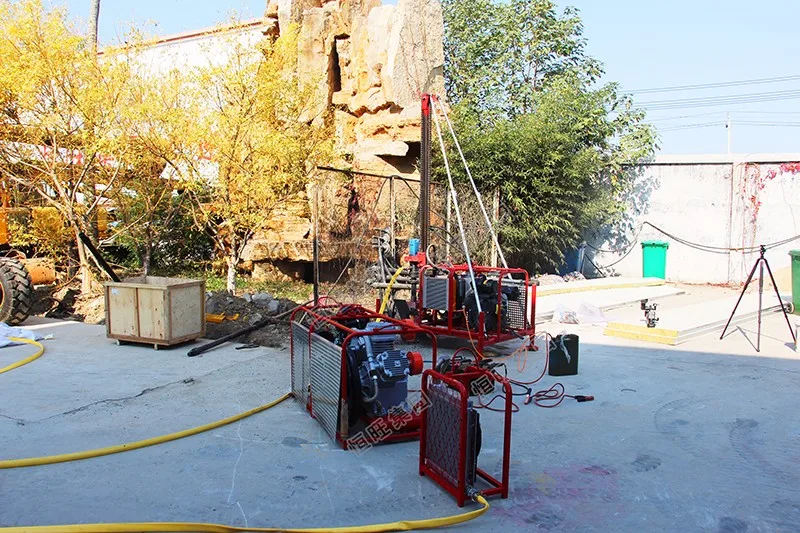

                                     Tower


Our Company
Certifications
Packing & Shipping
