Hydraulic bore well crawler drilling machine hydraulic price

Click on the image to view the original image

Product：	views：3Hydraulic bore well crawler drilling machine hydraulic price
Branch：	HW
Type：	hydraulic drilling rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:50

Product Details

Overview

Quick Details

Condition:: New

Type:: hydraulic drilling rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: 220V/380V

Dimension(L*W*H):: 2750*950*1770mm

Weight:: 1600KGS

Warranty:: 5 years

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service

Model Number:: HW-160S

Maximum open:: 300MM

Work pressure:: 1.5Mpa

Drilling angle:: 90~75

Supply Ability

Supply Ability:: 50 Unit/Units per Week

Packaging & Delivery

Packaging Details: Standard exported box of Borehole mud pump for drilling rig crawler mounted bore deep drilling machine

Port: Qingdao/Shanghai/Dalian/Tianjin

Lead Time:

Quantity(Units)	1 - 50	>50
Est. Time(days)	8	To be negotiated

Product Description

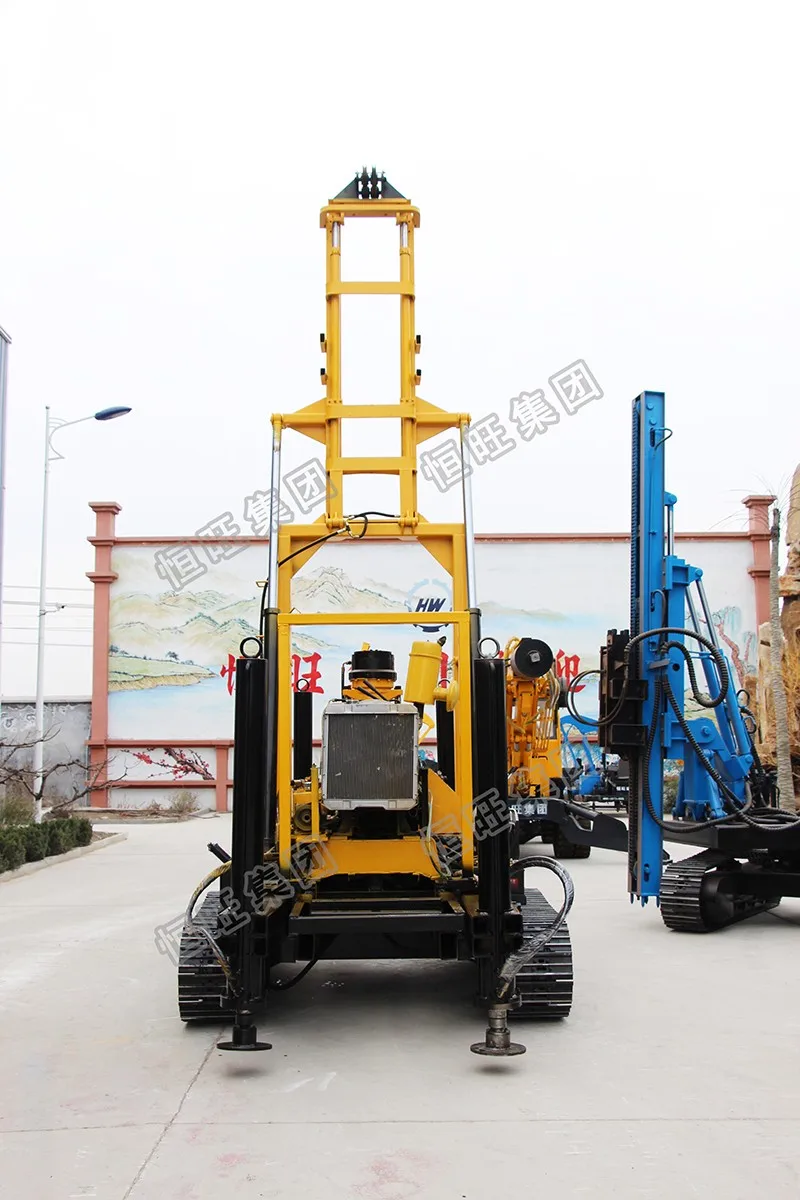

Tractor mounted cheap water well drilling rig portable water well drilling machine price

HW-230 portable water well drilling rig equipped with BW-160 mud pump and 22HP diesel engine, Max. drilling depth can be 160m with the opening diameter of 75-300mm, trailer, crawler, and tractor chassis for choice.

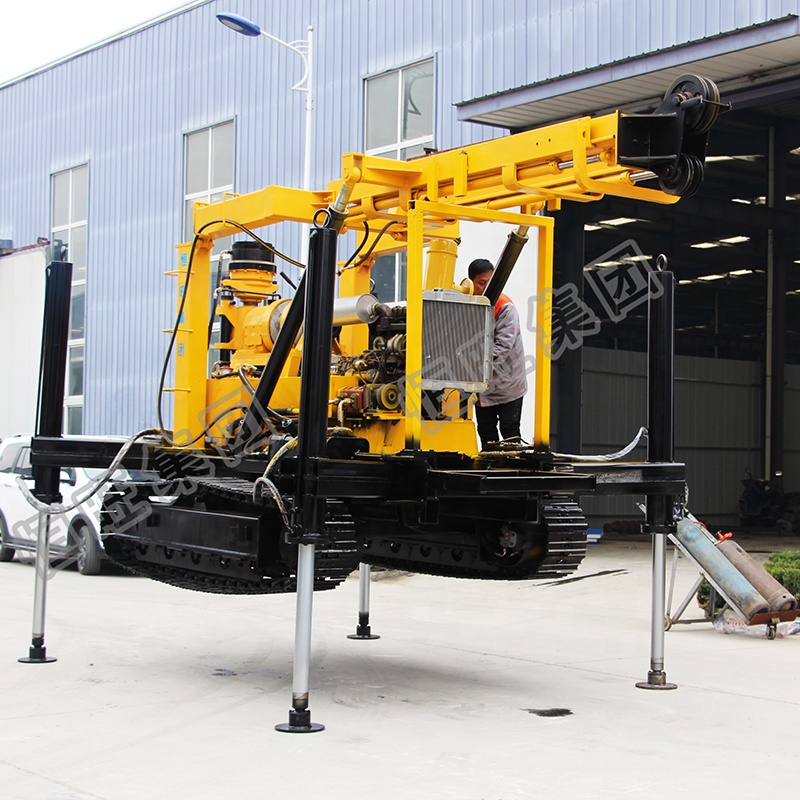

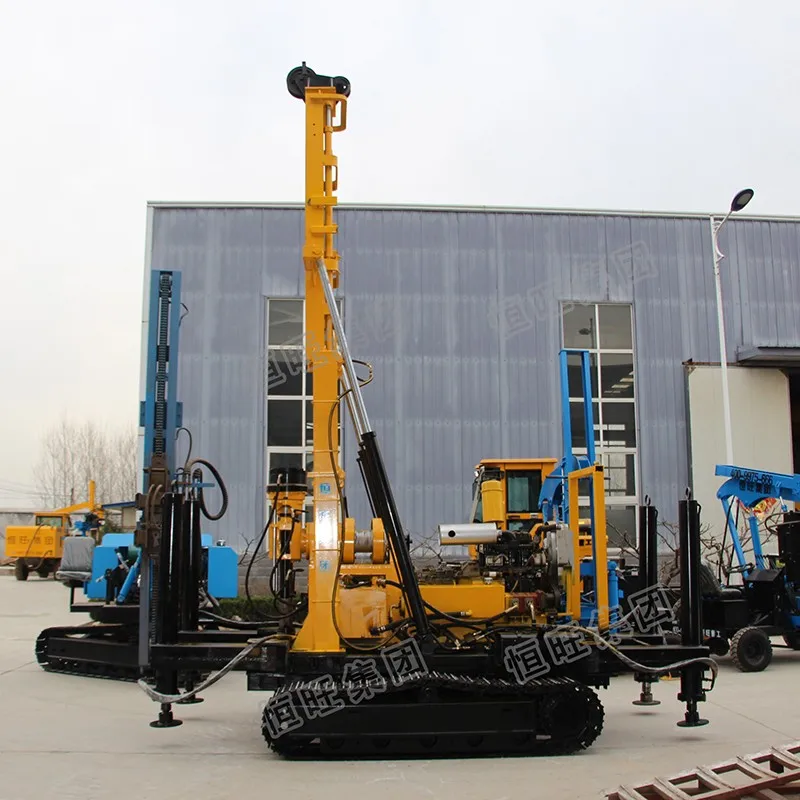

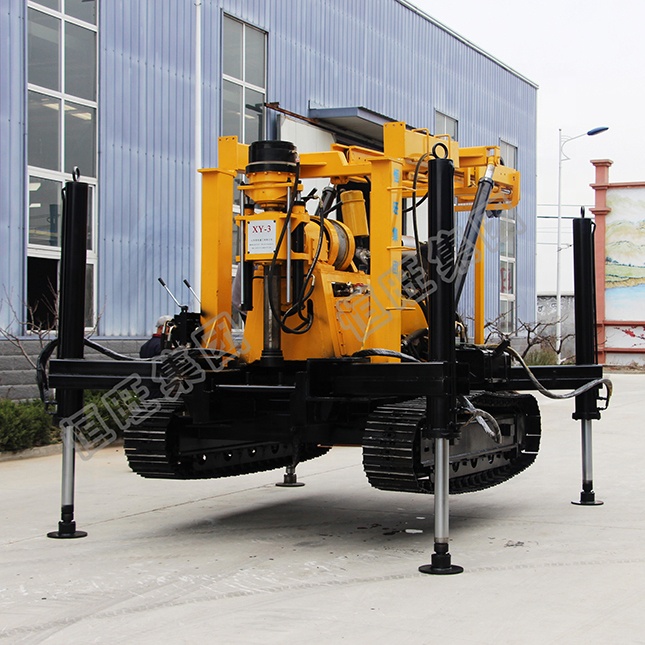

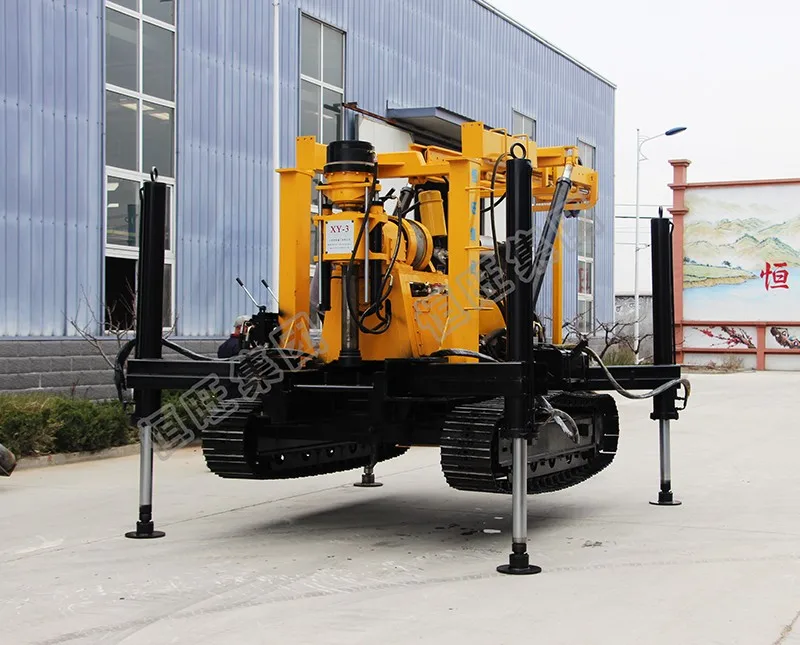

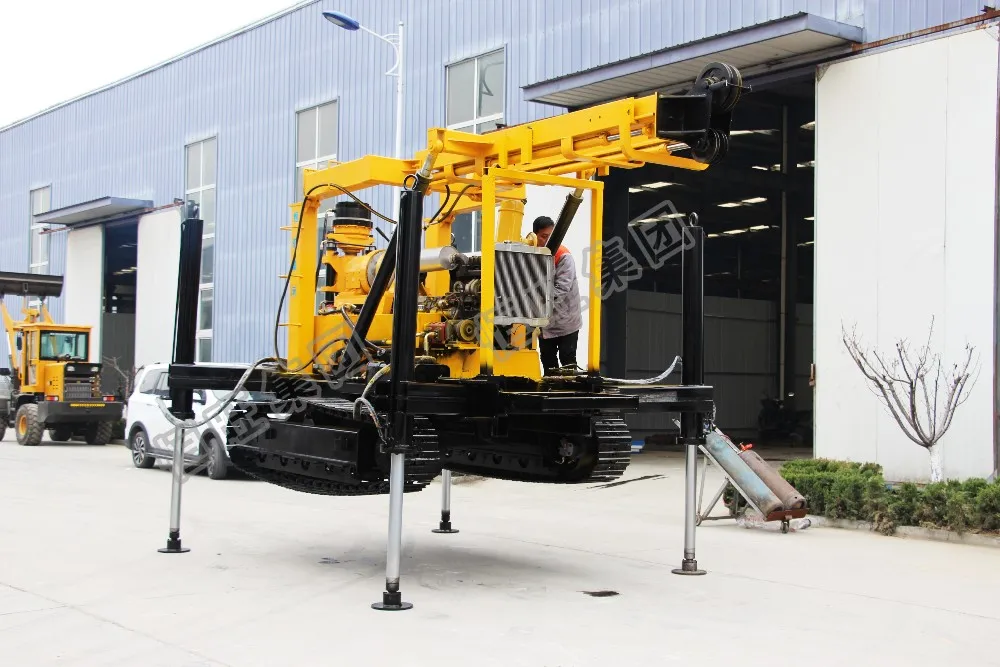

a. the machine is equipped with crawler chassis device, easy to move with fast speed.

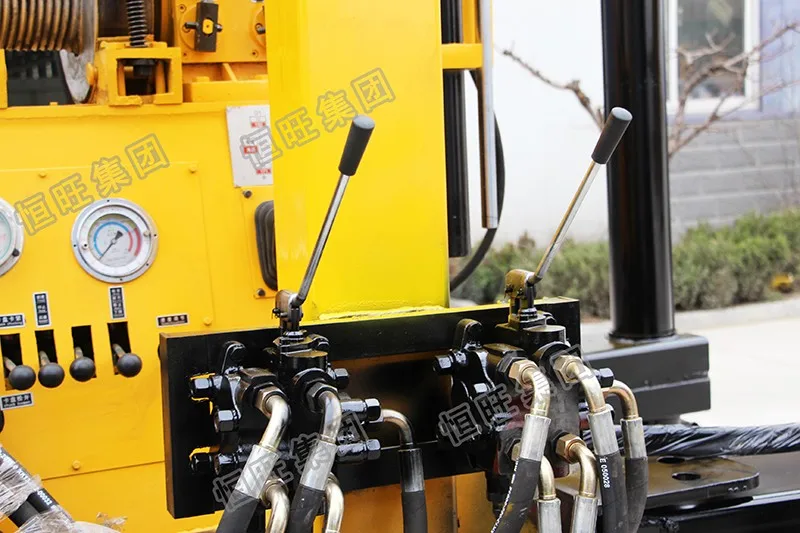

b. hydraulic oil pressure feed device, improve drilling efficiency.

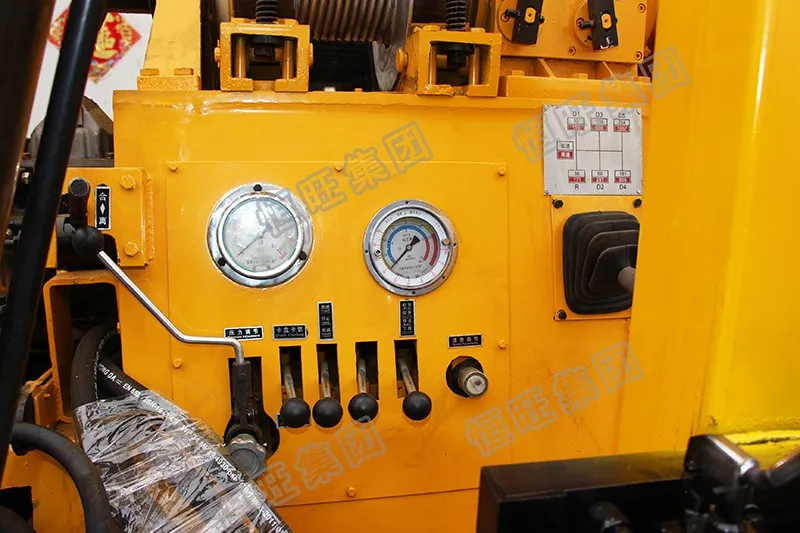

c. pressure gauge display the condition of the bottom of the drill hole.
d. drill mast controlled by hydraulic cylinder, improve the efficiency diesel engine adopt the electric starter, to reduce the labor intensity.

SPECIFICATIONS FOR WATER DRILLING RIG
Drilling depth		160m
Maximum borehole caliber		300mm
Minimum borehole caliber		75mm
Diameter of Drill pipe		42/50/60mm
Drilling angle		90°~75°
Weight(Not include power)		1600kg
Unity machine dimension		27509501770mm
2.Vertical Spindle
Spindle rotating speed		64/128/287/557r/min
Spindle stroke		450mm

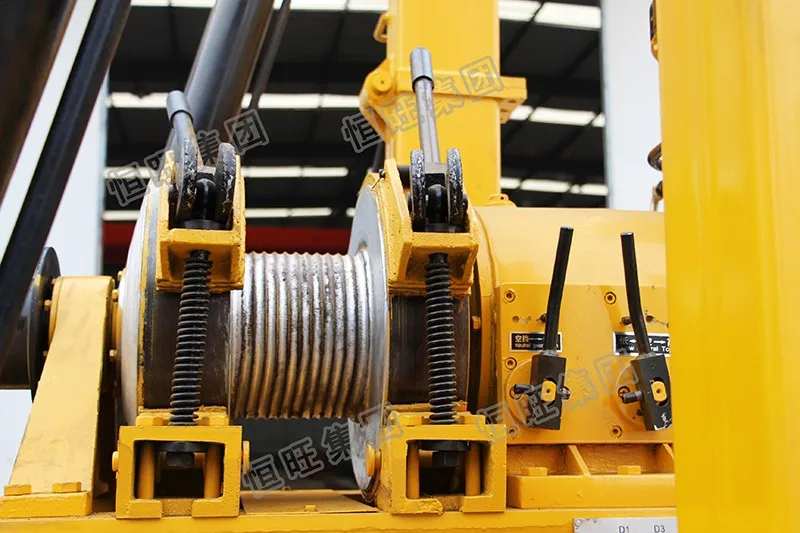

3.Hoist
Max. single line lifting capacity		2400kg
Reel lifting speed		1.64m/s
Steel wire rope diameter		13mm
Steel wire rope capacity		35m
Hug floodgate diameter		245mm
Hug floodgate belt width		70mm
Movable distance		400mm
4. Mud pump
Type		BW-160
Type		Horizontal Single Cylinder with double function
Max. Discharge		Diesel engine 170L/min/Electrical Motor 140L/min
Max. Pressure		3MPa
Work Pressure		1.5MPa
5. Power
Diesel engine		22HP
Electric Motor		15KW
6. Drilling tower
Type		Integrated on drilling rig

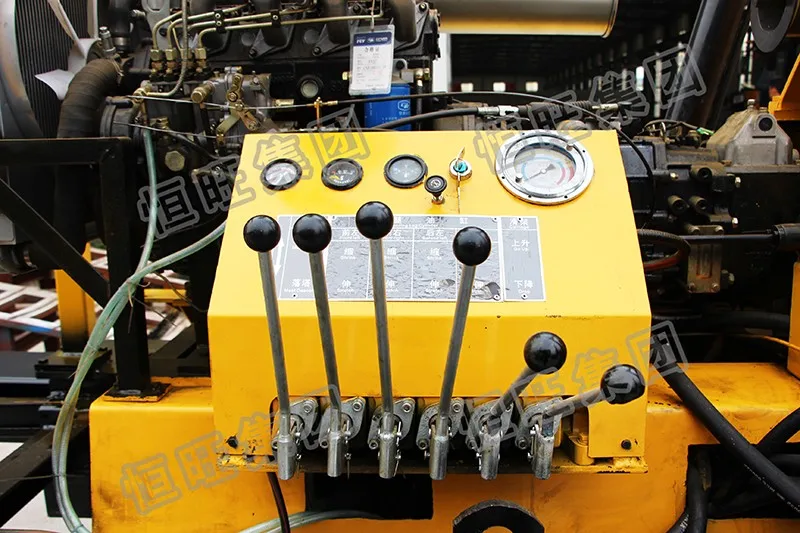

Control system		Hydraulic
7. Trailer chassis
Type		4 wheels
