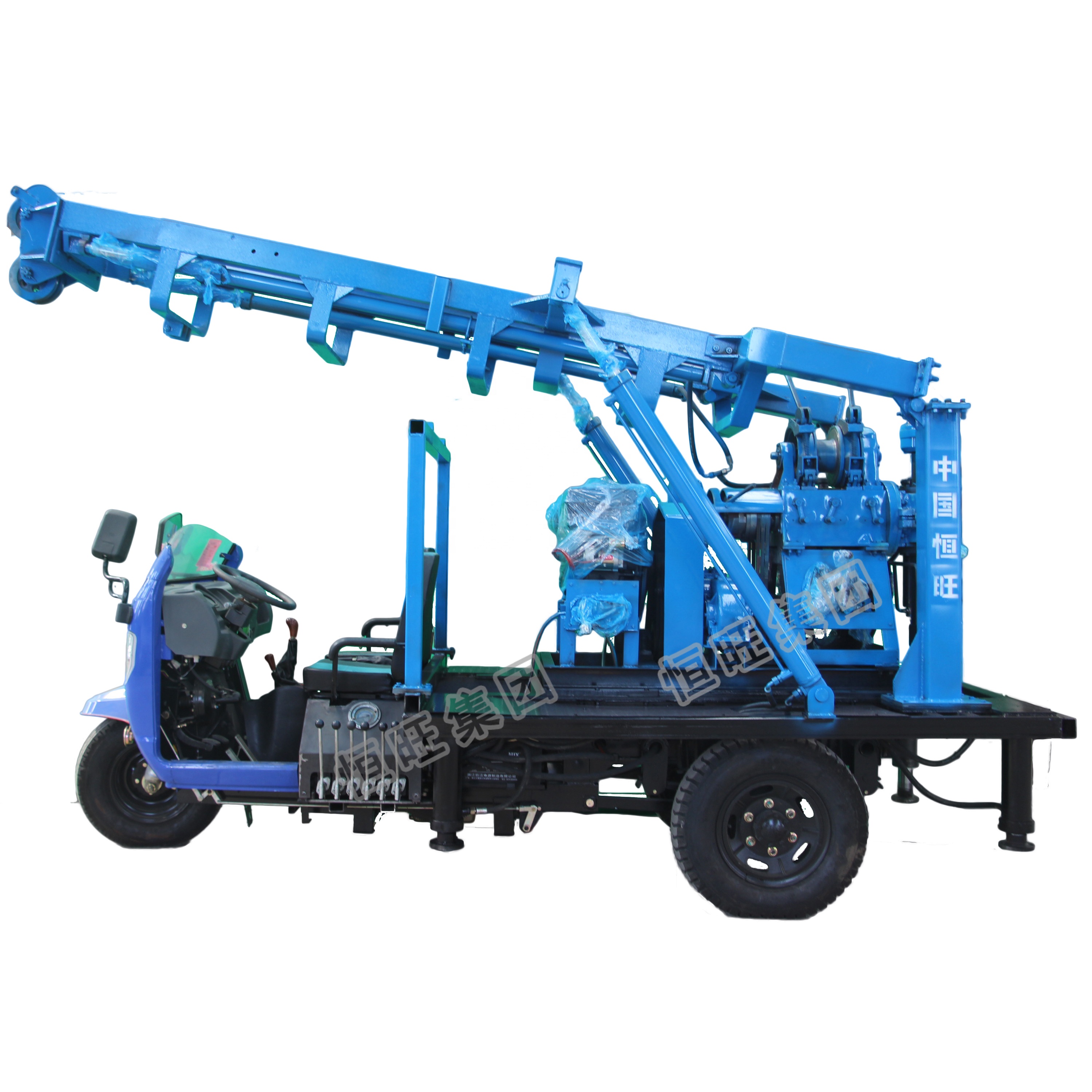

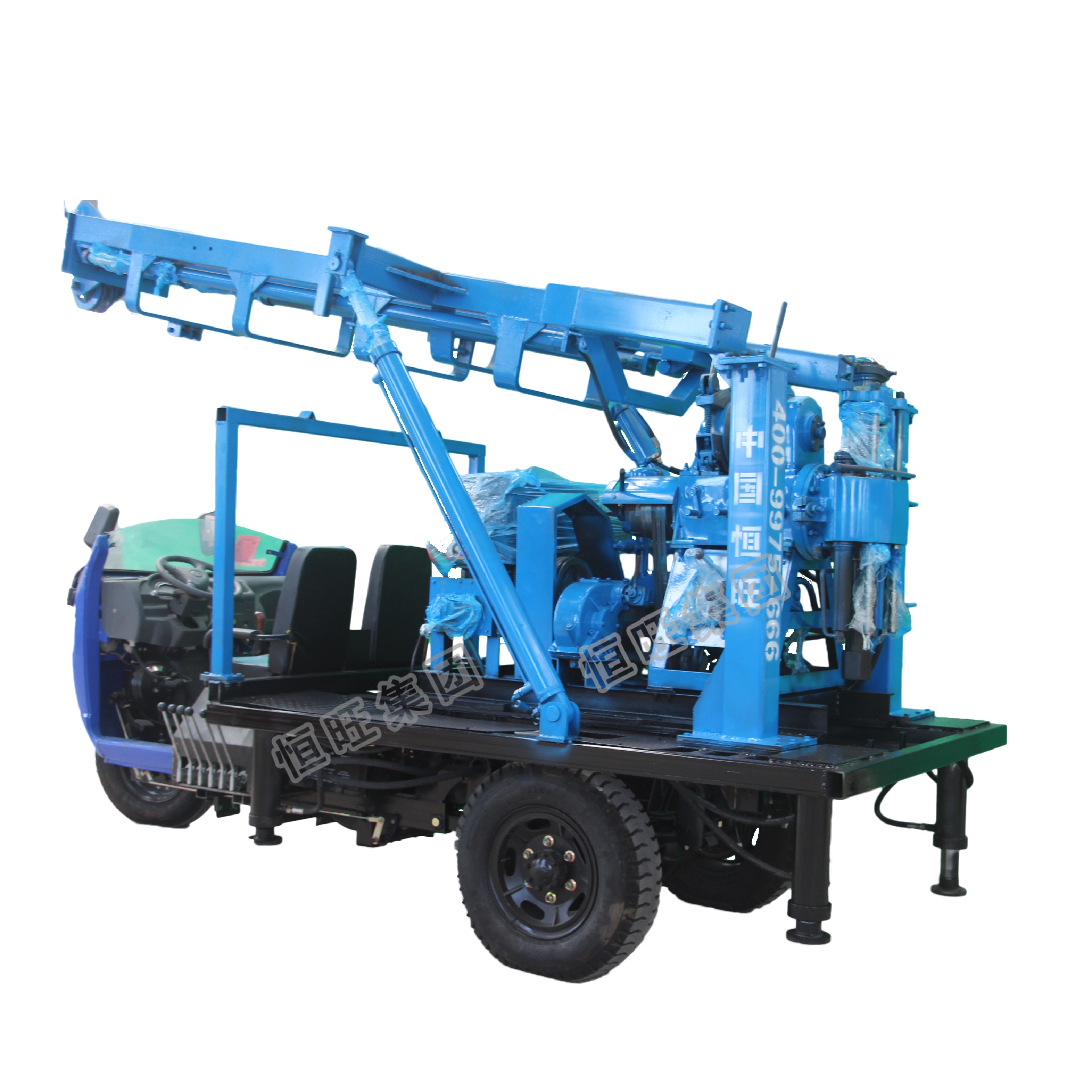

Tricycle water well drilling rig china
Click on the image to view the original image
Product： views：3Tricycle water well drilling rig china
Branch： HW
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:50
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Water Well
Dimension(L*W*H):
4m*1.7m*2.3m
Weight:
3000kg
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
Drilling depth:
230m
Drill rod diameter:
42mm/50mm/60mm
End hole dia.:
500mm/273mm
Matching engine power:
15kw
Stroke:
450mm
Supply Ability
Supply Ability:
50 Set/Sets per Week
Packaging & Delivery
Packaging Details
drilling rig Standard wooden case packing
Port
QINGDAO,XIAMEN,TIANJIN,NINGBO
Lead Time:
Quantity(Sets)1 - 50 >50
Est. Time(days)7To be negotiated
Product Description

Water well drilling rig

Water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc

SPECIFICATIONS FOR HW-230S TRICYCLE WATER DRILLING RIG
Machine Specification
Model
HW-230S
Drilling depth
230m
Open hole dia.
Soil/Rock
500mm/273mm
Machine Specification
End hole dia.
75mm
Drill rod dia.
42mm/50mm/60mm
Drill angle
90-75o
Matching engine power
15kw
Weight without engine
3000kg
Machine Dimension L*W*H
4m*1.7m*2.3m
Spindle
Speed(r/min)
64/128/287/557
Stroke(mm)
450
Tricycle chassis
Model
wuzheng
7YP-1475D1
Emission standard
GB 19756-2005(II)
Rated power
18.3kw
Tricycle chassis
Rated power
2200r/min
Drill Mast
Rated load
18ton
Effective height
6.5m
Mud pump
Flow
160L/Min
Max. Pressure
1.3Mpa
Back and forth
165 times/min
Inlet hose dia.
51mm
Outlet hose dia.
32mm

Main Features

1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency, saving labor force.
4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.

Our Company

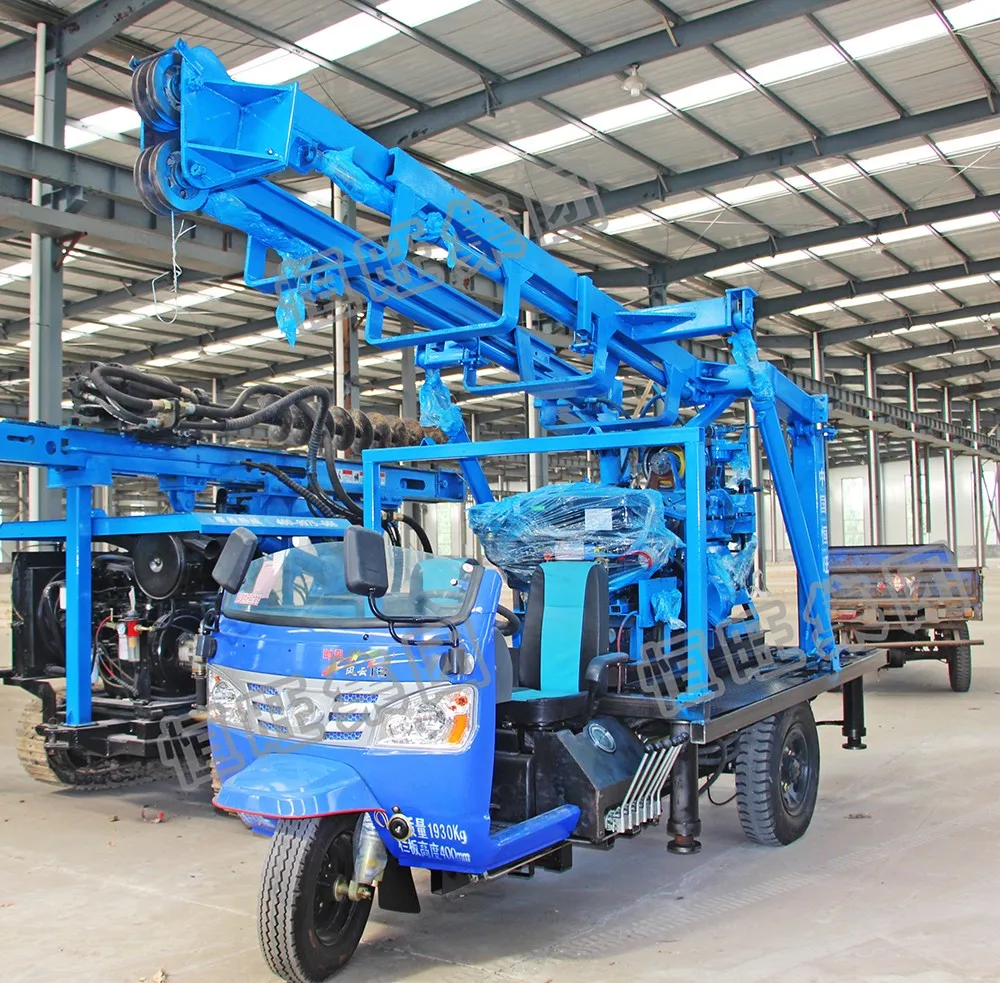

Detailed Images
