Overview
Quick Details
- Dimension(Long * Breadth * High):
- 3490*1820*2150
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Online support, Free spare parts
- Condition:
- New
- Brand Name:
- HW
- Place of Origin:
- Shandong, China
- Type:

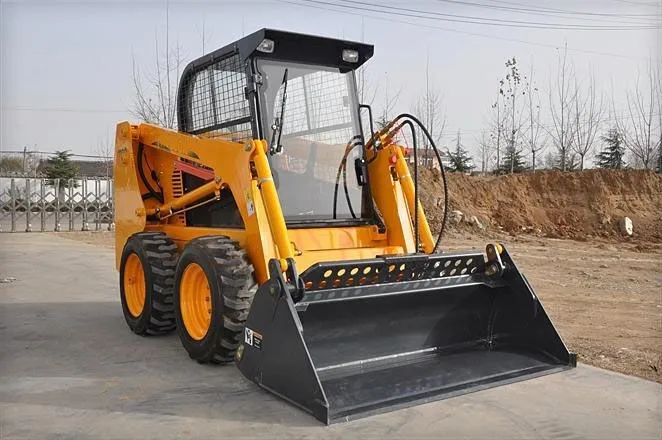

- Skid Steer Loader
- Moving Type:
- Wheel Loader
- Certification:
- iso
- Rated operating capacity:
- 850kg
- Tipping load:
- 1700kg
- Bucket capacity:
- 0.45-0.5m3
- Operating weight:
- 3300kg
- Max. travel speed:
- 12km/h
- Tires:
- 12/16.5NHS
- Overall dimensions:
- 3490*1820*2150mm
Packaging & Delivery
- Packaging Details
- wooden case
- Port
- Qingdao
- Lead Time:
Quantity(Sets) 1 - 1 2 - 6 >6 Est. Time(days) 3 12 To be negotiated
Video Description
Product Description

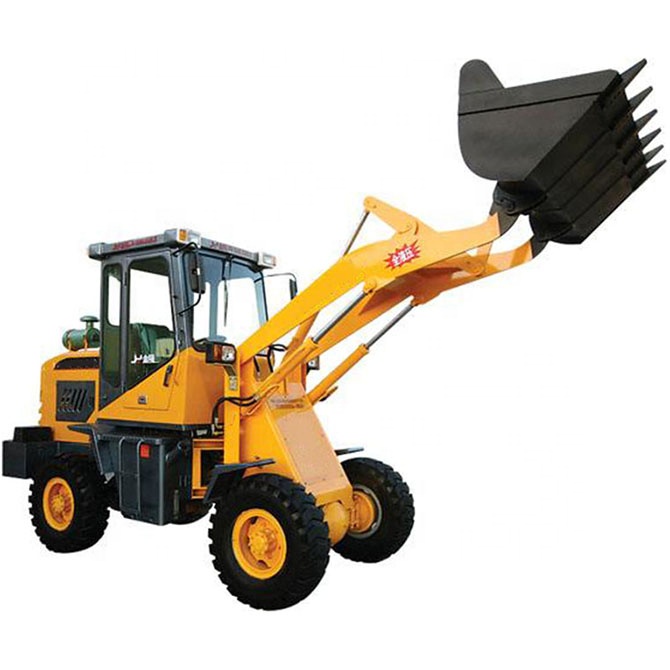

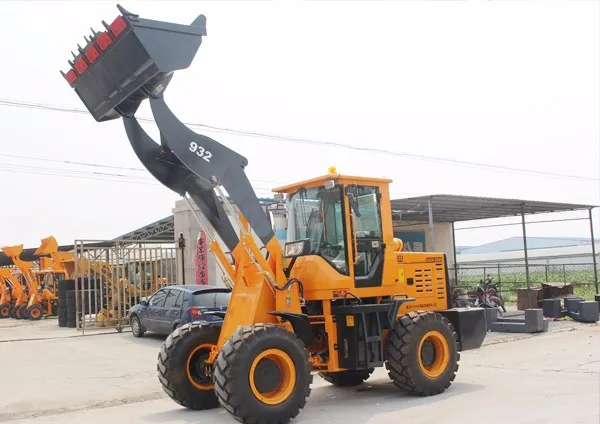

The loader machine adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle,the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy,the forest farm, the military project, and so on.
It also can be used in carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise.Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. The driving force loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long.
The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good.The drive"s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.
Detailed Images
Specifications | ||
Rated operating capacity | kg | 850 |
Tipping load | kg | 1700 |
Bucket capacity | m3 | 0.45-0.5 |
Operating weight | KG | 3300 |
Max. travel speed | km/h | 12 |
Hydraulic pump flow | L/min | |
Fuel tank capacity | L | 90 |
Tires | 12/16.5NHS | |
Overall dimensions | MM | 3490×1820×2150 |
Dimensions | ||
Height at maximum extension | MM | 4000 |
Height to bucket hinge pin | MM | 3100 |
Width with bucket | MM | 1830 |
Track width | MM | 1500 |
Wheelbase | MM | 1085 |
Ground clearance | MM | 200 |
Dump angle | 30° | |
Dumping height | MM | 2400 |
Rollback at ground | 26° | |
Angle of departure | 20° | |
Engine | ||
Maker/Model | xinchai 498 | |
Net power | 61.2hp/2500rpm | |
Displacement | L | 3.2 |
Optional | Prehest starting assist system for extreme cold weather,Cab fitted with a heater as standard,Air conditioner |
