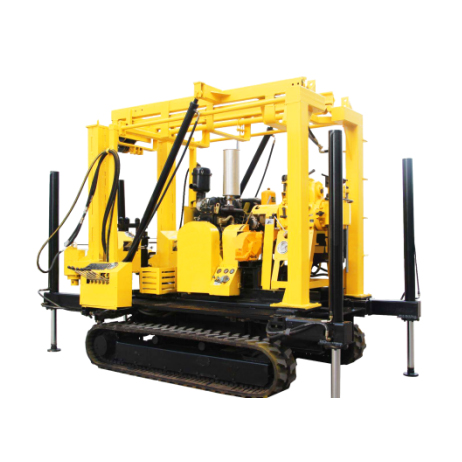

DTH water well rotary drilling rig for sale
Click on the image to view the original image
Product： views：3DTH water well rotary drilling rig for sale
Branch： HW
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:50
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Water Well
Weight:
4200kg
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
Work air pressure:
0.7-1.6Mpa
Air consumption:
7-15m3/min
Drilling diameter:
83-130mm
Drilling depth:
50m
Supply Ability
Supply Ability:
50 Set/Sets per Week
Packaging & Delivery
Packaging Details
Packing in container
Port
Qingdao/Shanghai/Dalian/Tianjin/Ningbo port
Lead Time:
Quantity(Sets)1 - 50 >50
Est. Time(days)7To be negotiated
Product Description

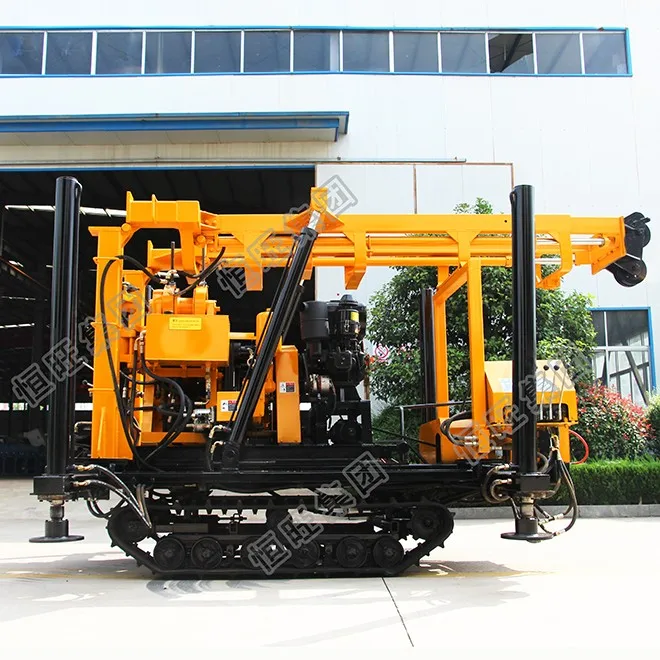

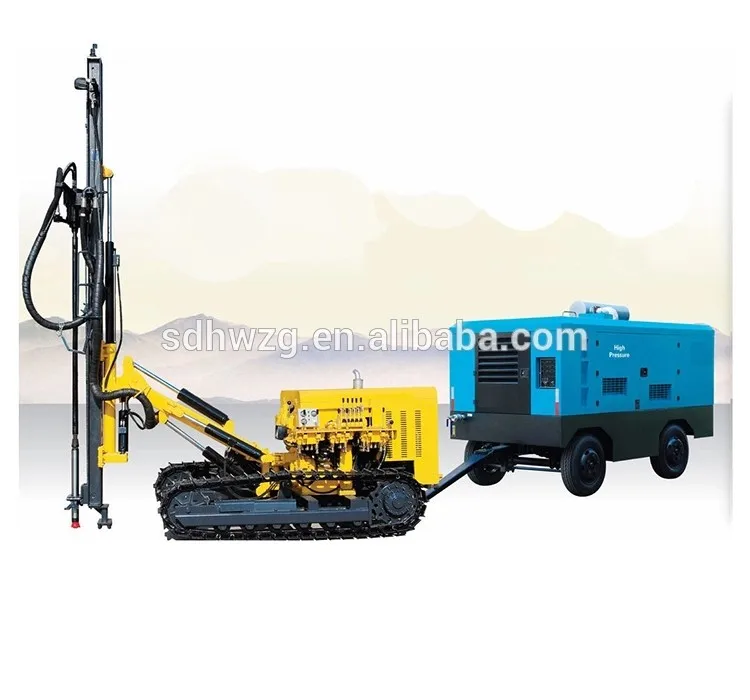

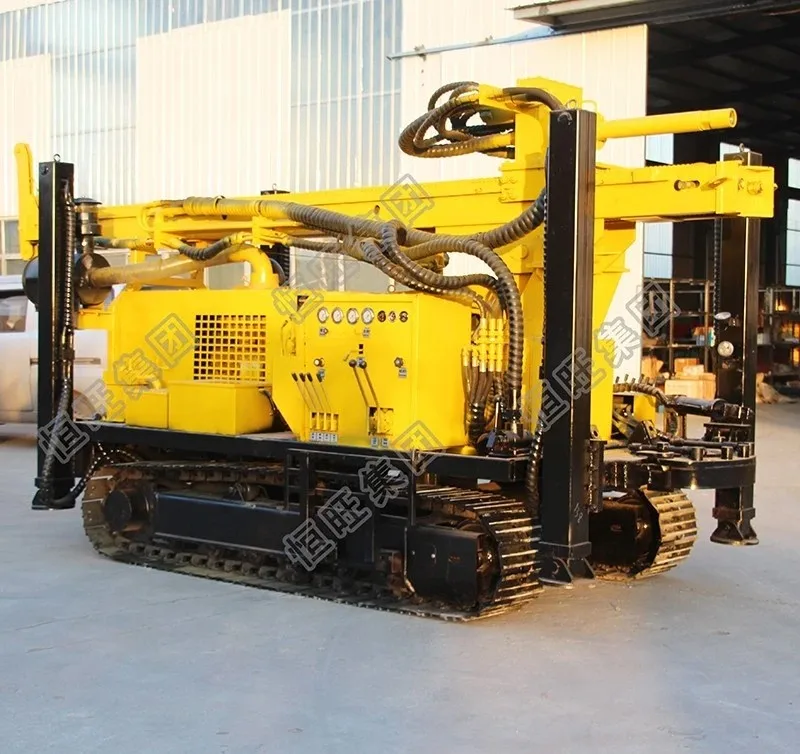

HQD-50/HQG-60 Crawler DTH Drill rig

Easy maintenance hydraulic pump group: pneumatic motor drive hydraulic pump group and placed outside the hydraulic tank, oil pump ans motor with soft connection and can be freely disassembled, which make the pump stable and reliable, easy maintenance.

Strong propulsion, slewing gear: Reducer has turbine. Worm drive, push and pull, to achieve self-locking.

Rotary reducer with gear, low speed, big torque, it has easy maintenance.

Centralized controlled of the operating mechanism:

Drilling rig has advanced hydraulic system and pneumatic system, all actions are centralized control, it is easy to operate.

Operate the hydraulic control valve to achieve the functions of lifting the boom, swinging and pitching, swing angle, forward(backward) and leveling of the track. To ensure multi-directional drilling and stability of the rig.


SPECIFICATIONS FOR CRAWLER DTH DRILL RIG
Working air pressure
0.7-1.6Mpa
Air consumption
7-15m3/min
Drilling diameter
83-130mm
Drilling depth
50m
Drill rod length
2000mm
Drill rod diameter
60mm
Max lifting force
24KN
Boom pitch angle
0-90o
Max rail swing angle
Left 14o,Right 35o
Traction climbing ability
25o
Stand-alone climbing ability
30o
Walking speed
1-2km/h
Rotating speed
Slow speed 0-96r/min /Fast speed 0-120r/min
Rotating torque
1500N.m
Engine
Diesel engine YN27 (39kw)
Total weight
4200kg
