- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Electric
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Water Well
- Voltage:
- 380V
- Dimension(L*W*H):
- 2500*1000*1300MM
- Weight:
- 1600KG
- Certification:
- ISO9001
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support
- MODEL:
- HQZ150
- Drilling dia.:
- 100-254mm
- Drilling depth:
- 200m
- Drolling direction:
- to the ground45°-90°
- One time advance length of the drill:
- 1500mm
- Eletric motor power:
- 11kw
- Drill swing speed:
- 52rpm
- Air Pressure:
- 1.45-2.5Mpa
- Air consumption:
- 15-27m3/min
- Color:
- Customised
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 280X120X140 cm
- Single gross weight:
- 1400.0 kg
- Package Type:
- WOODEN CASE
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Set) 1 - 100 >100 Est. Time(days) 5 To be negotiated

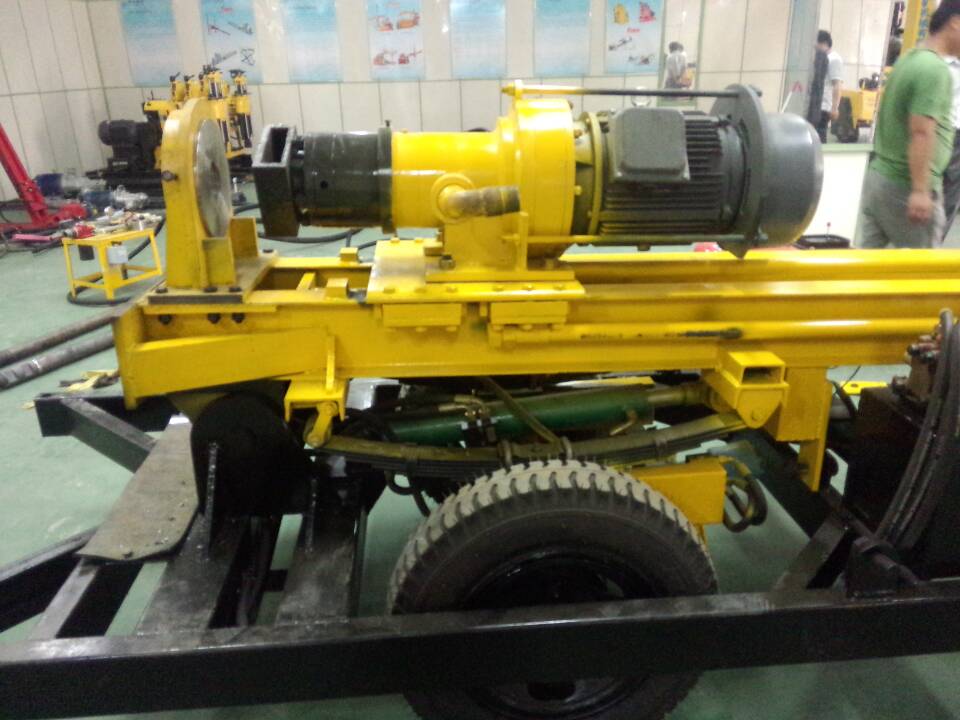

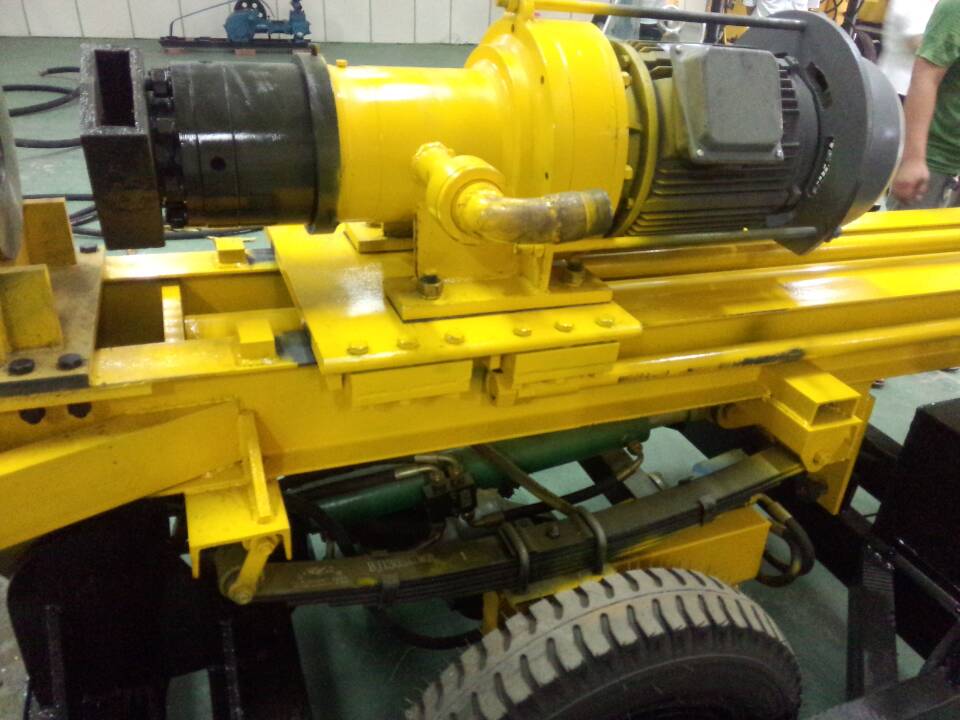

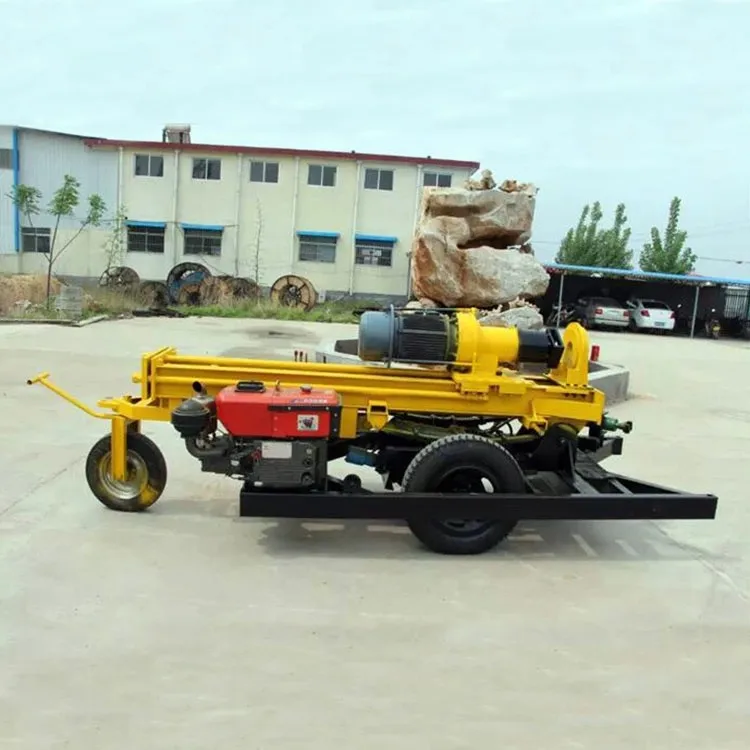

HQZ series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The rig can be Chuanzao work on different formations, drilling diameter up to 219mm. The rig adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
Features:
1.High drilling efficiency, power provided by energy saving motor
2.High efficiency, large rotary torque
3.Simple structure and easy to move
4.Adopt consummate design, long service life
5.Easy to operating
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
