- Type:
- Rock Splitter
- Condition:
- New
- Application:
- stone splitter
- Motor Type:
- AC Motor
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Dimension(L*W*H):
- 450*410*700MM
- Certification:
- ISO
- Warranty:
- 1 Year
- After-sales Service Provided:
- Free spare parts, Online support, Video technical support, Field installation, commissioning and training
- Name:
- Hydraulic Rock Splitter
- Useage:
- Stone Splitting
- piston diameter:
- 80mm
- drilling diameter:
- 45mm
- cheese block length:
- 350mm
- crack width:
- 10~40mm
- Theory of separatist force:
- 600T
- The actul split force:
- 480T
- Key word:
- Stone Splitting Tools
- Split time:
- 5~15s
- Supply Ability:
- 10000 Set/Sets per Year
- Packaging Details
- wooden case
- Port
- Qingdao
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 7 To be negotiated

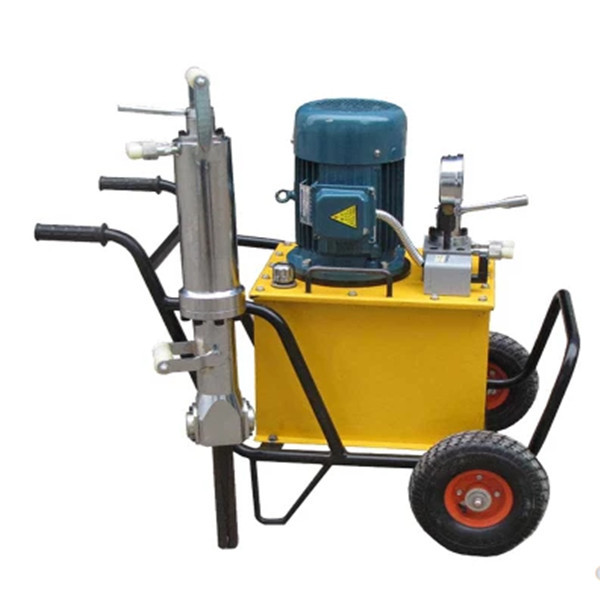

Big stone secondary breaking splitting rock machine
Product Application

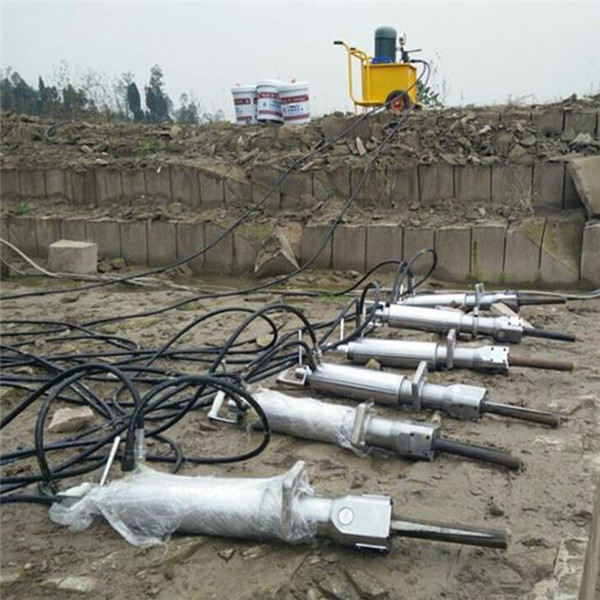

The Rock splitter is our newly developed product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. Rock splitter can develop a very huge splitting force (Maximum 1000T) when it put into the pre-drill holes of rock or concrete, and crack it into pieces within several seconds.
Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition.
It is also an indispensable tool in construction, river dredging, salvation etc
Rock spliter gun parameters | ||||||
model | HW80-250 | HW80-350 | HW80-450 | HW90-250 | HW90-350 | HW90-450 |
piston diameter | 80mm | 80mm | 80mm | 90mm | 90mm | 90mm |
drilling diameter | Φ42mm | Φ45mm | Φ50mm | Φ42mm | Φ45mm | Φ50mm |
drilling depth | 500mm | 550mm | 600mm | 500mm | 550mm | 600mm |
cheese block length | 250mm | 350mm | 450mm | 250mm | 350mm | 450mm |
crack width | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm |
splitting time | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s |
Theory of separatist force | 600T | 600T | 600T | 800T | 800T | 800T |
The actul split force | 480T | 480T | 480T | 480T | 480T | 480T |
weight | 28Kg | 29Kg | 30Kg | 31Kg | 32Kg | 33Kg |
Power pack parameters | ||
electric motor | gasoline engine | diesel engine |
100kg | 130kg | 140kg |
40L | 65L | 40L |
4KW | 7Hp | 8HP |
55-60 | 55-60 | 60Mpa |
2-13 | 2-13 | 2-13L/min |
2-7 | 3-8 | 1-8 |




Main Features
1. The quarrying and mining industry (mining chunk of blocks, chunks of blocks divided, remove chunks of waste rock, etc.)
2.Construction engineering (tunneling, underground tunnel excavation, artificial river mining, artificial rivers, rock digging ditches, etc.)
3.Demolition works (concrete and reinforced concrete demolition, demolition of old buildings, old pier demolition, etc.)
4.Chemical, metallurgical production and overhaul works (smelting furnace overhaul, various kiln bricks construction demolition materials engineering, etc.)
5, the various rescue and relief (earthquakes, mine clearing and other work, traffic accidents rescue work)
