- Dimension(L*W*H):
- 1750*700*1100mm
- Weight:
- 650kg
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, No after-sales service
- Condition:
- New
- Power Type:
- Electric, Electric
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Product name:
- Concrete Pump
- Work form:
- S pipe valve type
- Max throughput:
- 5m3/h
- Max aggregate size:
- 20mm
- Application:
- Concrete Pump Boom Truck
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 17.5X7X11 cm
- Single gross weight:
- 655.0 kg

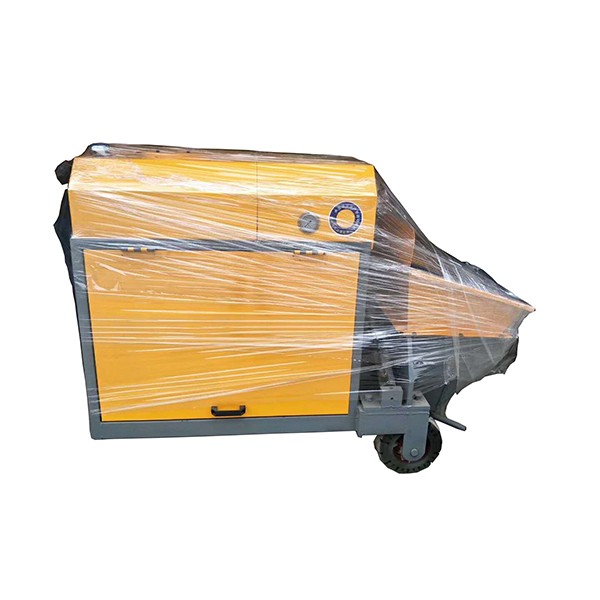

- Package Type:
- Packing in wooden box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Set) 1 - 500 >500 Est. Time(days) 7 To be negotiated

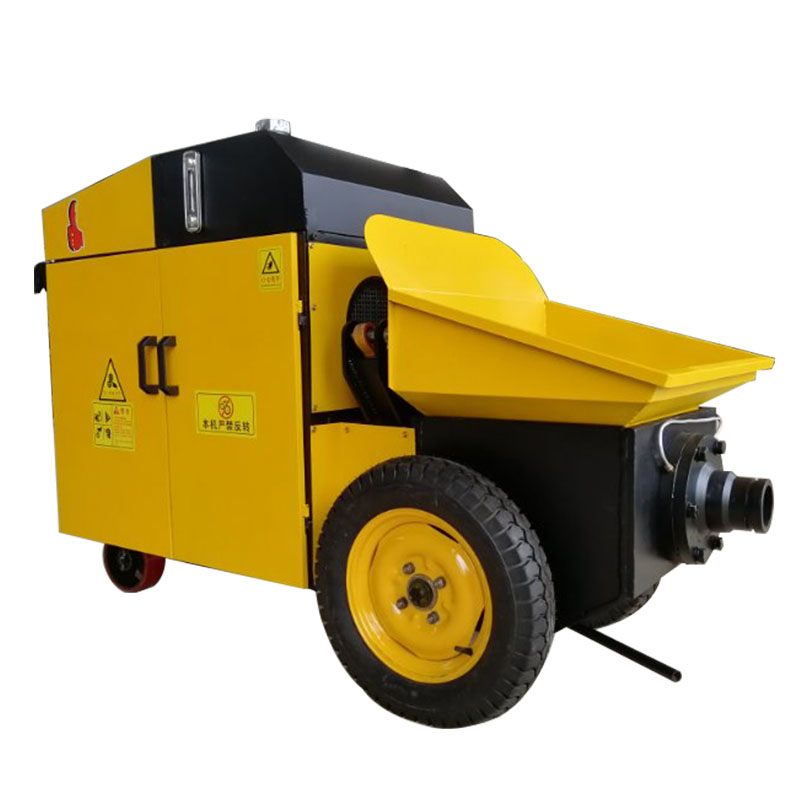

Concrete pump
Concrete pump is a kind of composite pumping requirements of concrete pump, through the horizontal or vertical installation of pipelines, the scene of the continuous conveying to the pouring fine stone concrete conveying equipment, widely used in the second post filling, floor heating engineering, roofing, wall of high-rise building, reservoir and hydropower station, port, wharf, basic processing soft foundation reinforcement grouting subway tunnel backfill grouting bolt support in mine construction.
Main Features
1) The use of the pump power is very small, only 15 kw, in under the condition of no power supply can work only with a small generator.
2) Is a small volume of concrete pump, is the ideal choice for many narrow construction environment.
3) Pump configuration is high, the hydraulic operation, stable performance, compact structure, low fault rate and long service life.
4) Using automatic air compressor piston structure technology, working pressure pumping distance, the height at the pump.
Machine Parts

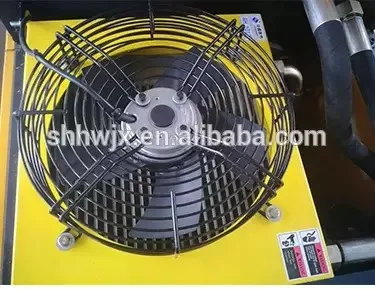

Name: Heat dissipation system
Through fan cooling, stable control below 55 degrees, machine can work for a long time.
Better than radiator cooling, more convenient.

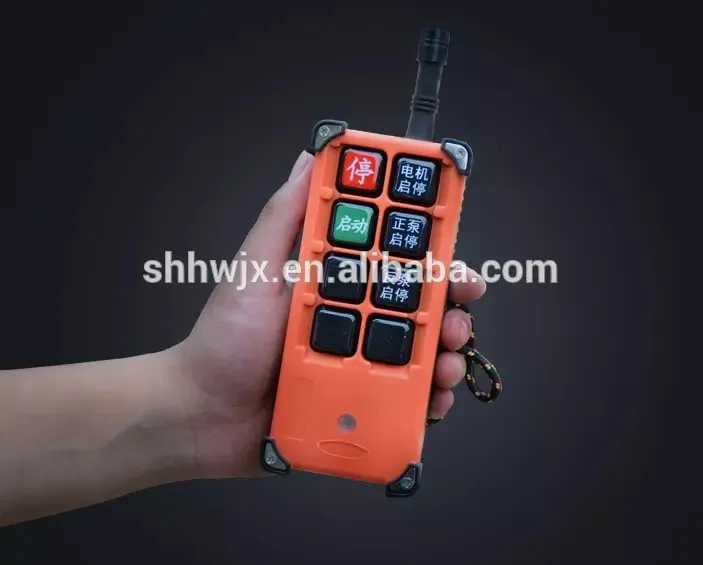

Control system
It can be controlled remotely, up to 100 meters.
Waterproof, anti falling, more convenient and safer.

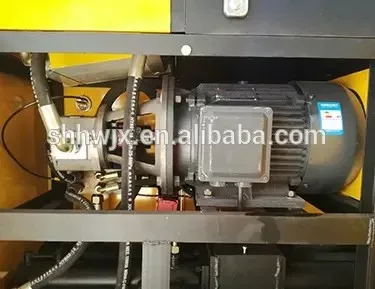

Motor
Using international copper main motor.
Long service life.
