Overview
Quick Details
- Applicable Industries:
- Retail, Construction works
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Water Well
- Voltage:
- 380
- Dimension(L*W*H):
- 2.4*0.8*1.3m
- Weight:
- 960kg
- Certification:
- ISO
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
- Name:

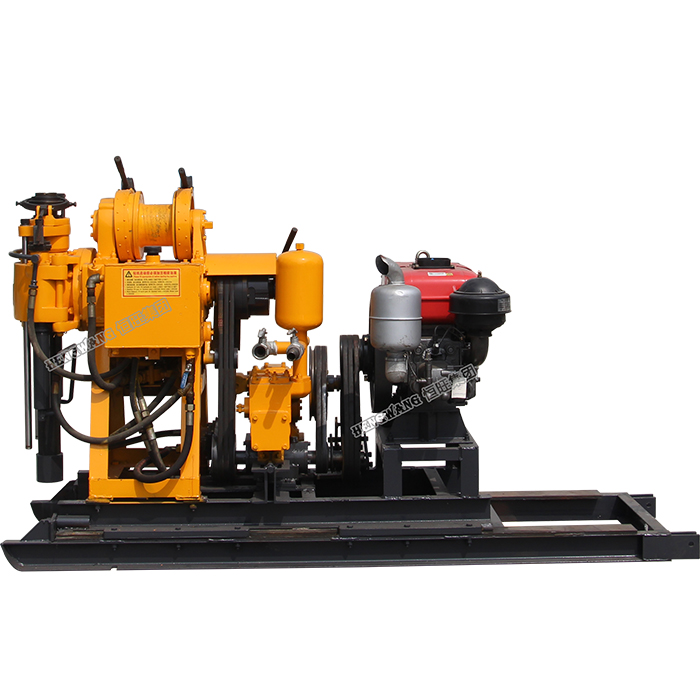

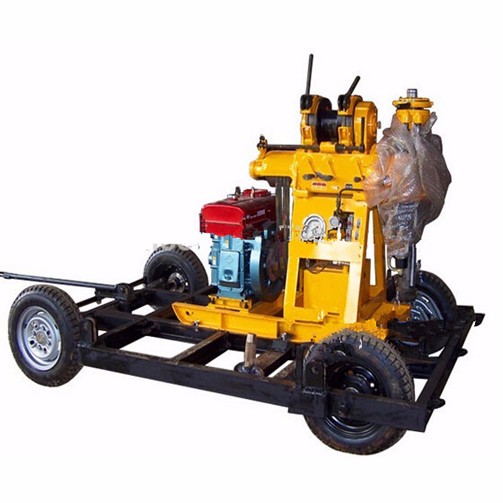

- Borehole Drilling Rig
- Drilling depth:
- 160m
- Drillingdiameter:
- 75mm-160mm
- Drill rod diameter:
- 42mm,50mm
- Drill angle:
- 90-75
- Engine power:
- 15kw
- Machine Dimension:
- 2.4*0.8*1.3m
- Drill mast height:
- 4.5m
- mud pump flow:
- 95l/min
- Mud pump max. pressure:
- 1.2Mpa
Supply Ability
- Supply Ability:
- 1000 Set/Sets per Year 200m depth bore hole portable rotary water well drill rig
Packaging & Delivery
- Packaging Details
- wooden case for 200m depth bore hole portable rotary water well drill rig
- Port
- Qingdao
- Picture Example:
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 5 To be negotiated
