Product Description

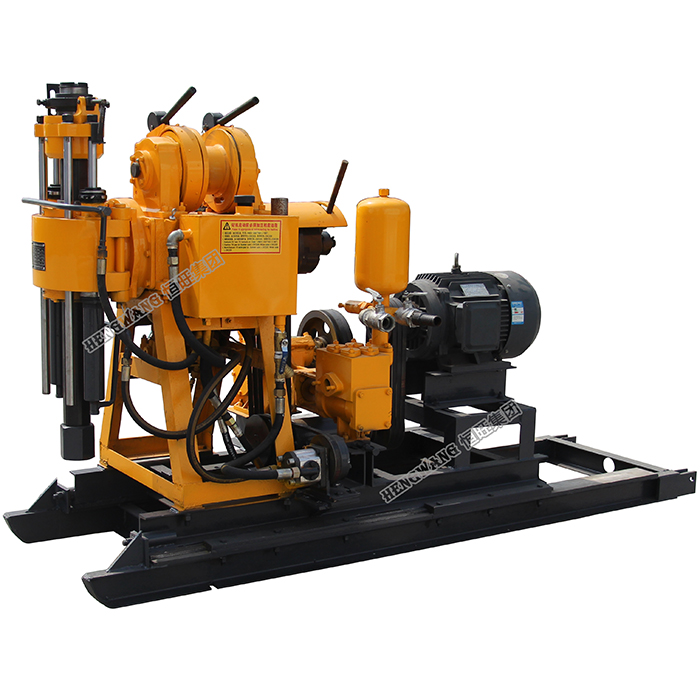

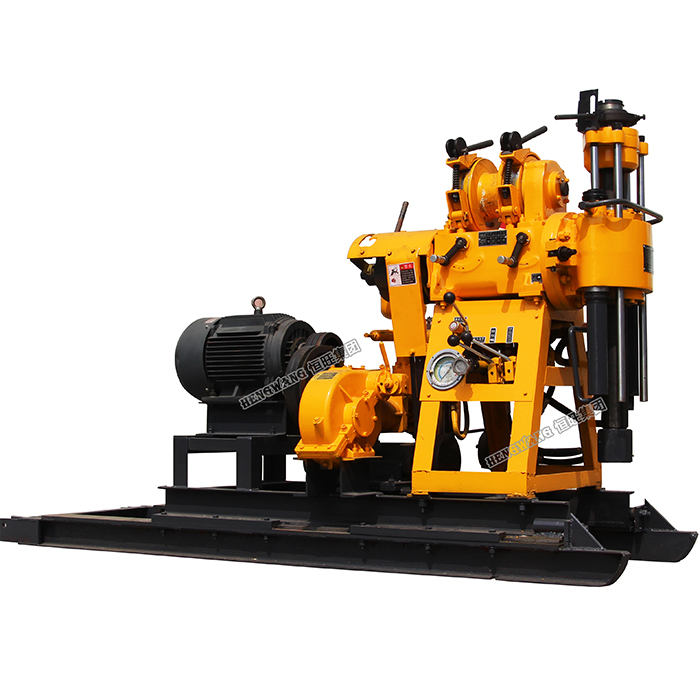

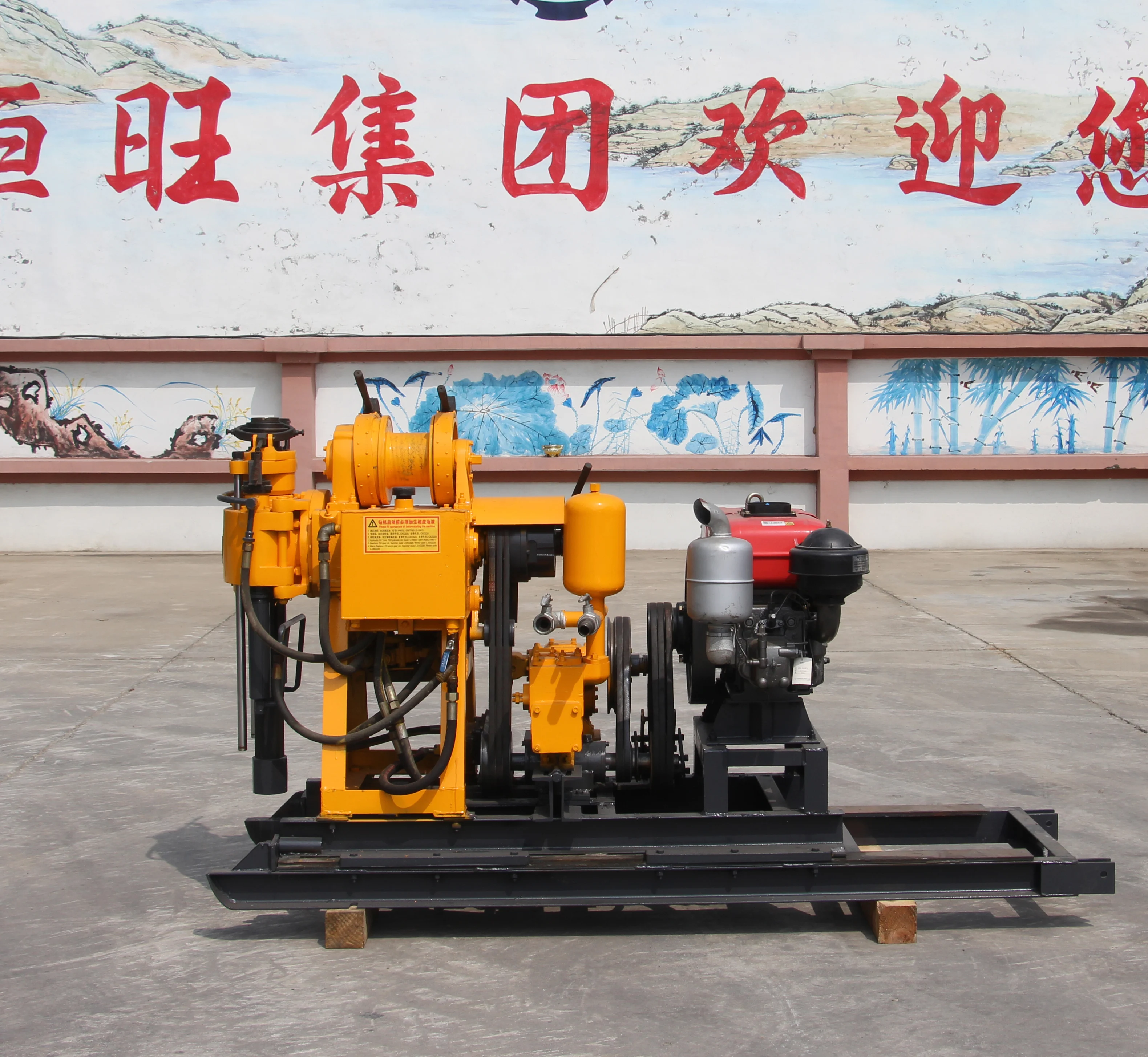

Diesel engine deep water well borehole drilling machine
Water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc
Model | HW-160Y/160YY | HW-180Y/180YY | HW-230Y/230YY | |
Tech parameter | Drilling depth(m) | 160 | 180 | 230 |
0pen hole dia(mm) | 220 | 220 | 325 | |
End hole dia(mm) | 75 | 75 | 75 | |
Drill rod dia(mm) | 42-60 | 42-60 | 42-60 | |
Drill angle | 90-75 | 90-75 | 90-75 | |
power(Kw) | 13.2 | 13.2 | 13.2 | |
Weight without | 600/740 | 620/750 | 880/970 | |
Dimension(m) | 2.4*0.8*1.3 | 2.4*0.8*1.4 | 2.7*0.9*1.5 | |
Spindle | Speed(r/min) | 142/285/570 | 130/300/480/730/830/1045 | 64/128/287/557 |
Stroke(mm) | 450 | 450 | 450 | |
Drill mast | Rated load(ton) | 18 | 18 | 18 |
Height(m) | 4.5 | 4.5 | 4.5 | |
Mud pump | Flow(l/min) | 95 | 95 | 145 |
Max | 1.2 | 1.2 | 2 | |
Time/min | 93 | 93 | 93 | |
Inlet hose dia(mm) | 51 | 51 | 51 | |
Outlet hose | 32 | 32 | 32 |
Water well drilling rig Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

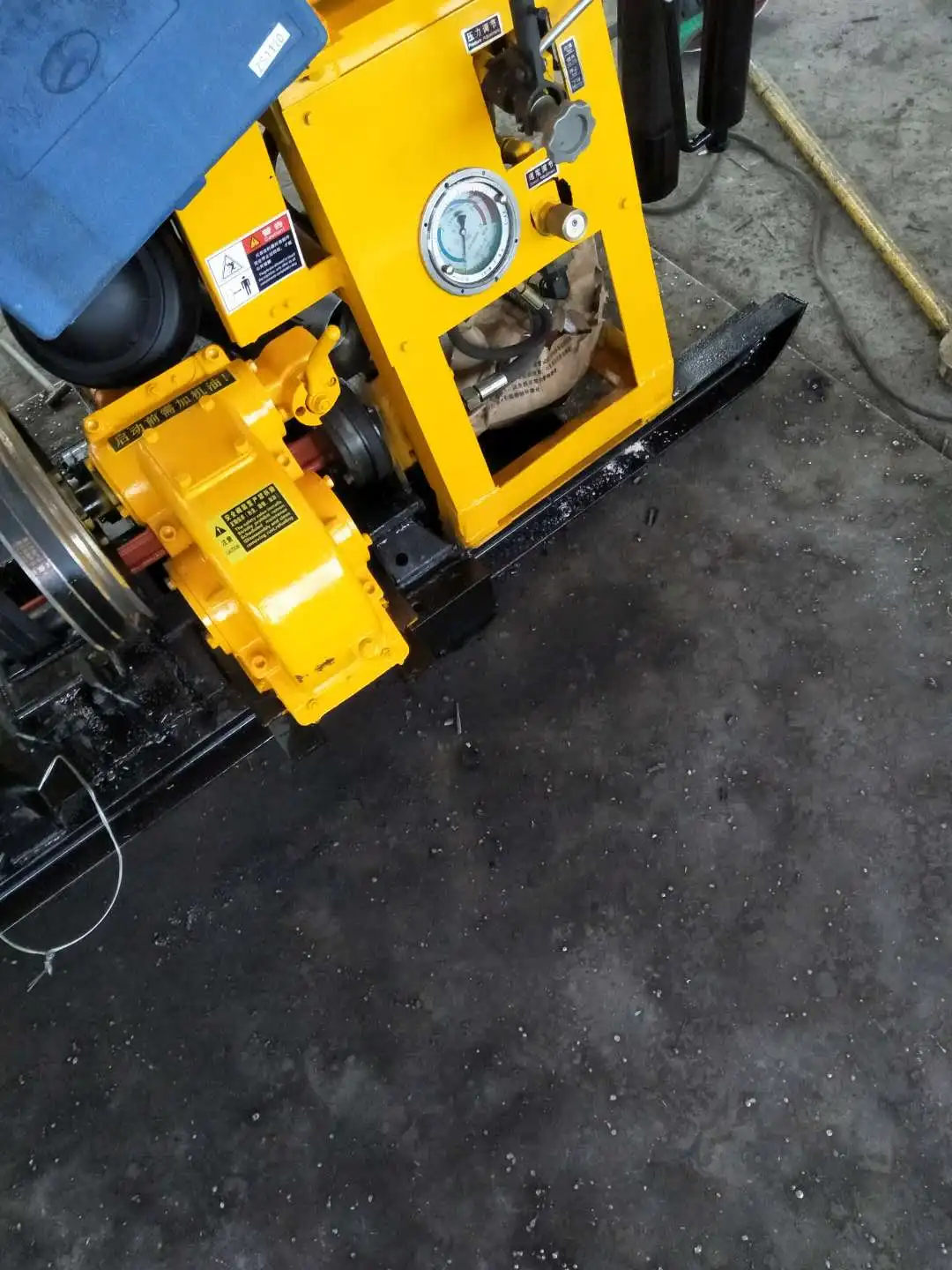

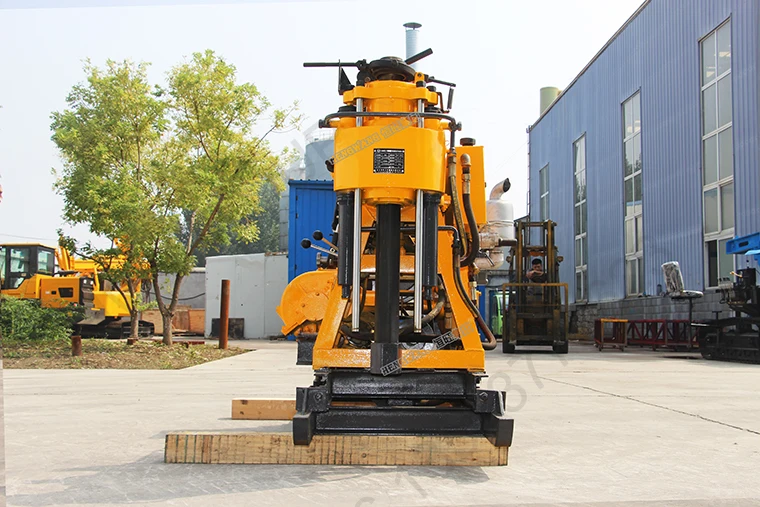

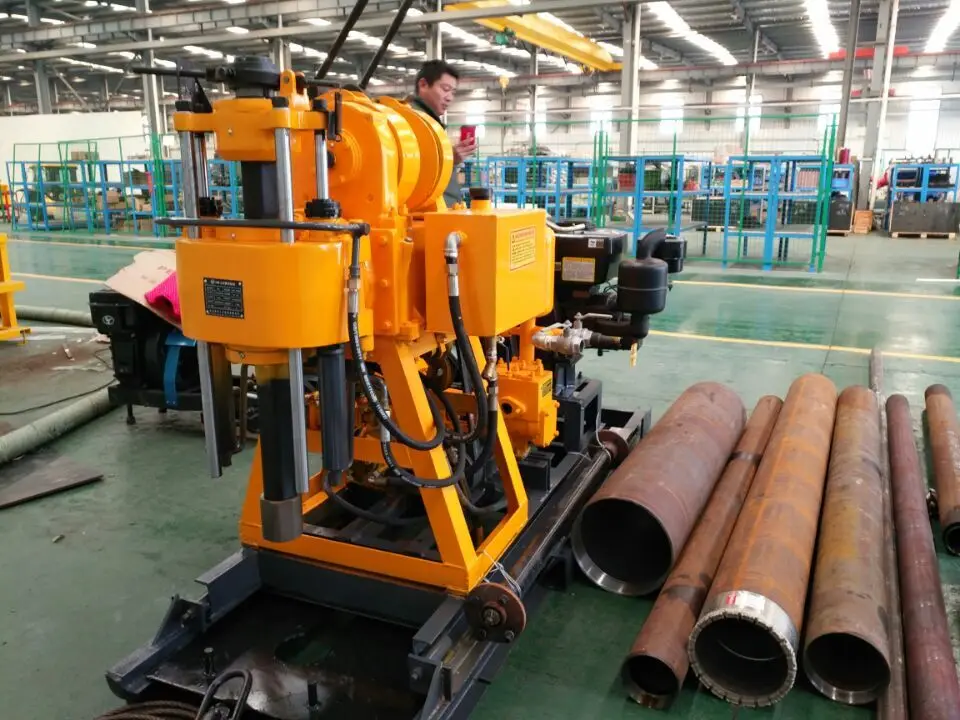

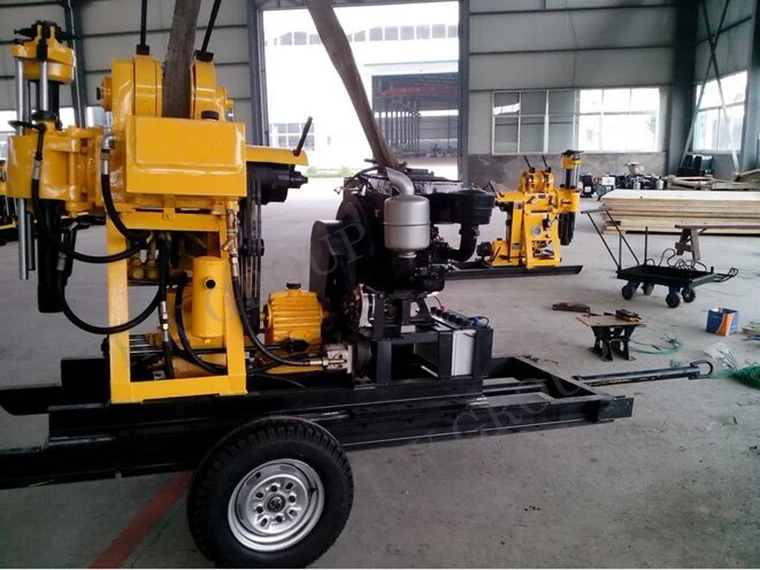

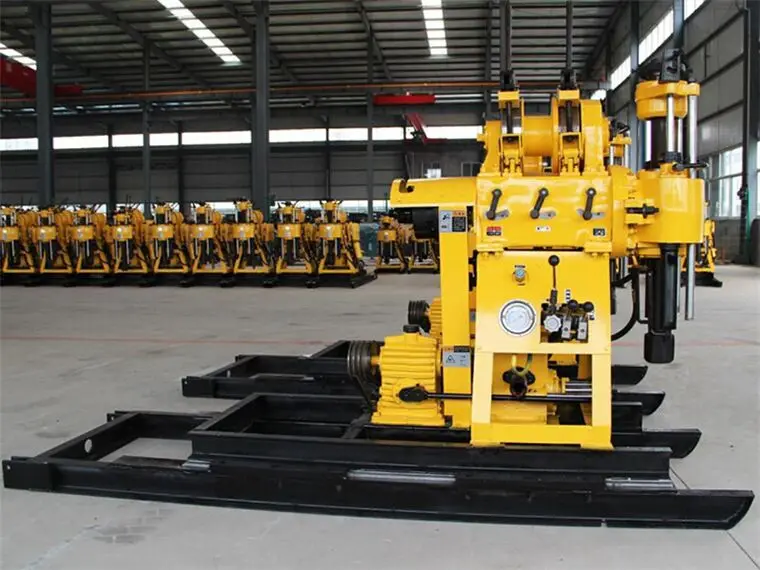

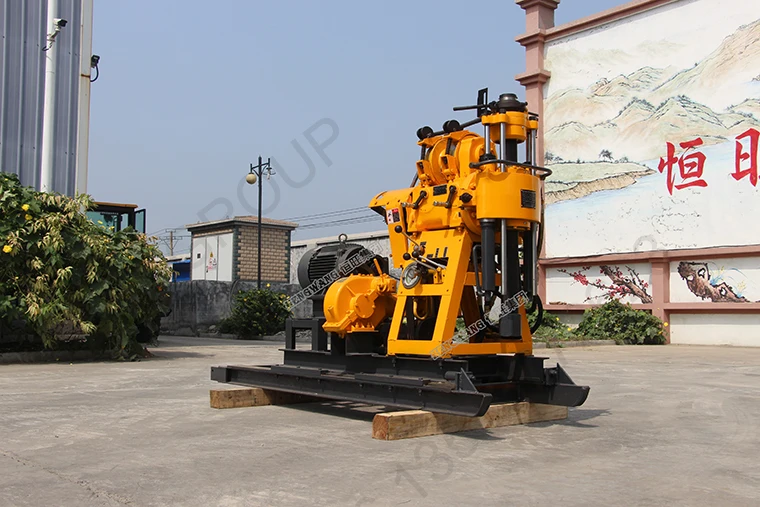

Detailed Images
Related Products

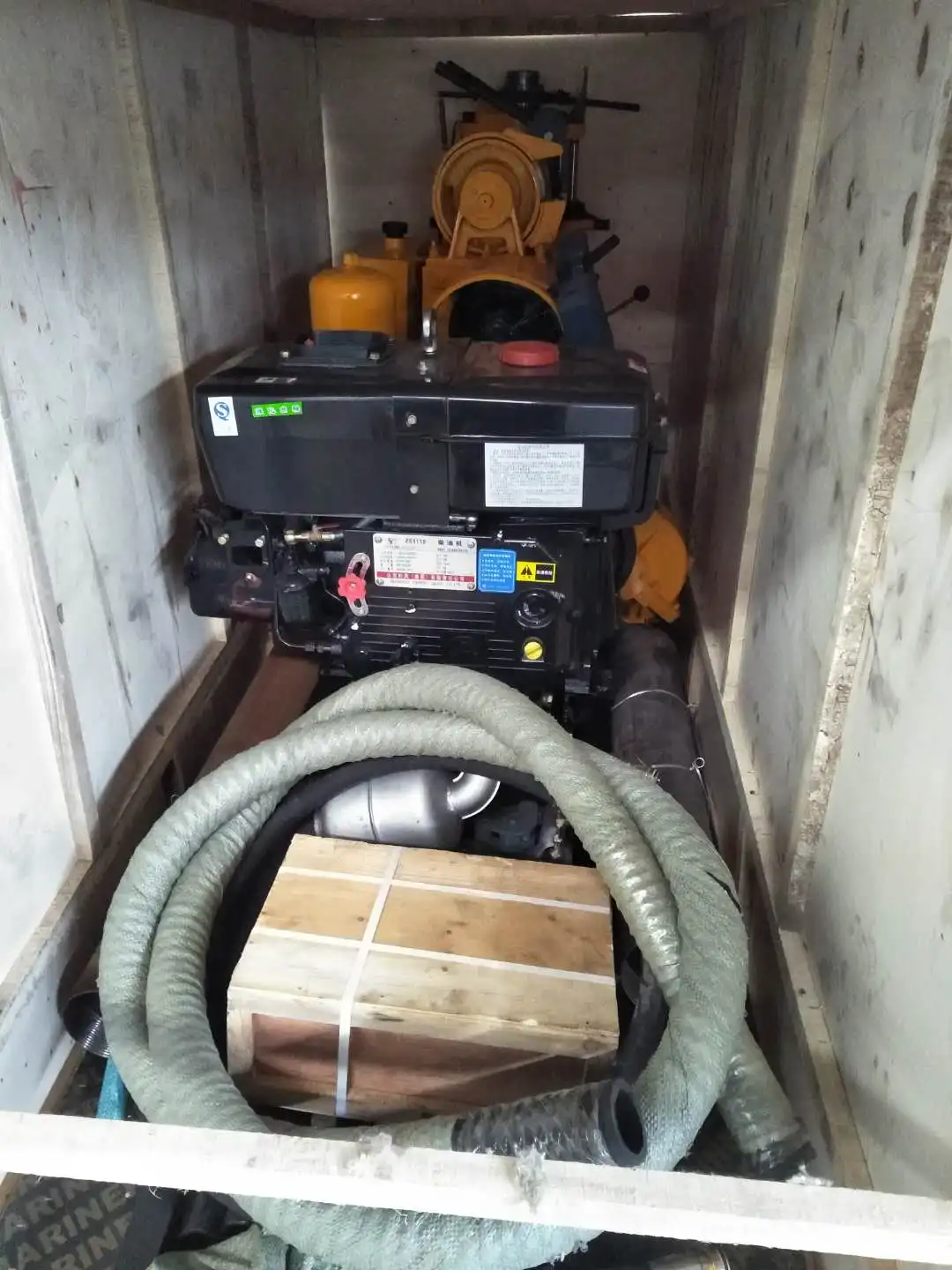

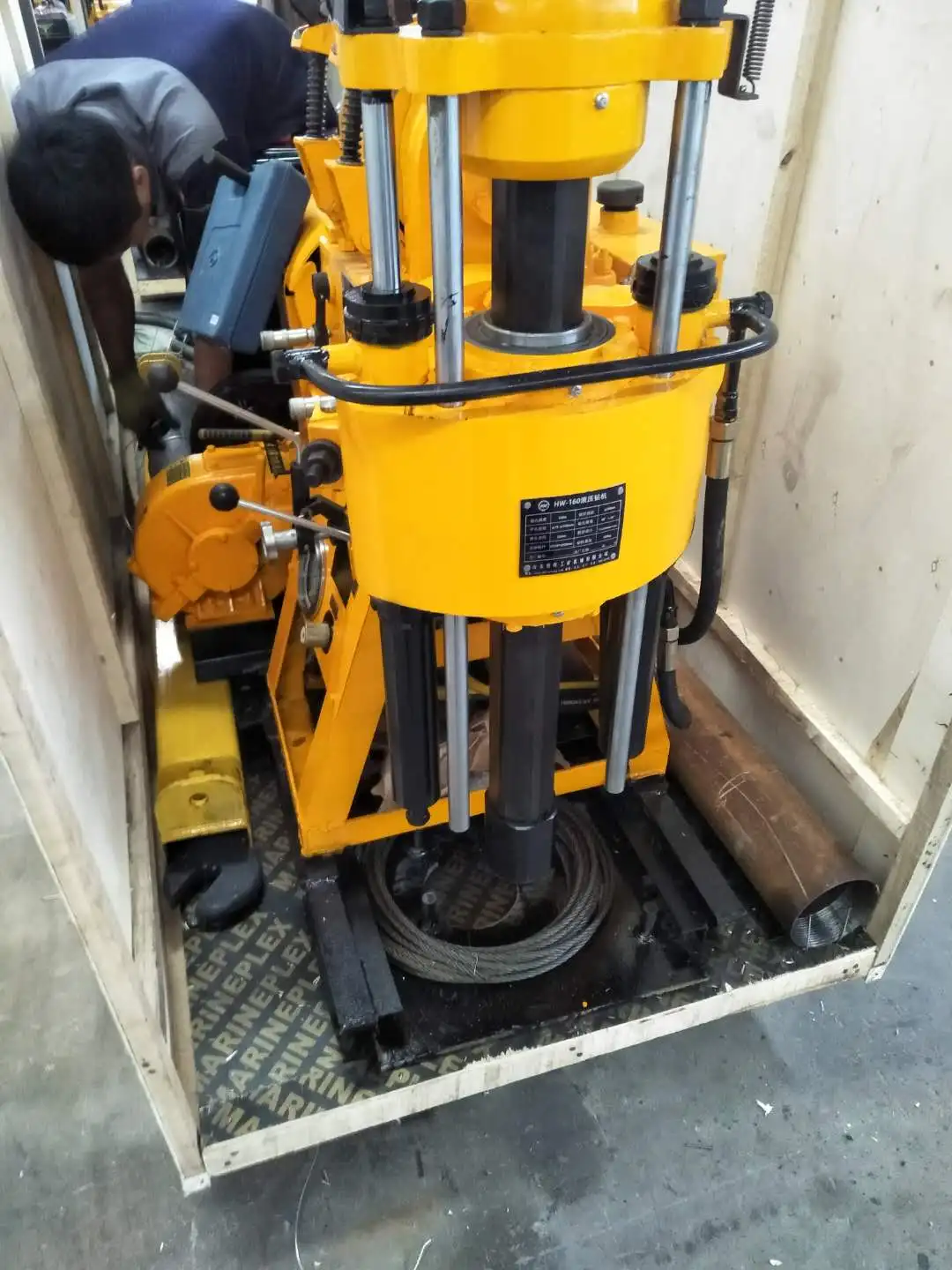

Packing&Shipping
After Sales Service
After Sales
1. We machine warranty is ONE year;
