mini china 1 ton ride on vibratory steamrollers:
Driving type vibratory roller (hydraulic steering) has a wide range of USES, superior performance, easy to operate, durable characteristic.The asphalt road roller belongs to the category of road equipment in construction machinery. Road roller compactor is widely used in the filling and compacting of large-scale projects such as high-grade roads, railways, airport runways, dams and stadiums. Road roller compactor can crush sand, semi-stick and sticky soil. Subgrade stabilized soil and asphalt concrete pavement layer.
mini china 1 ton ride on vibratory steamrollers applications:
This mini road roller compactor most suitable for compaction of asphalt surface, compaction of gravel, sand and other projects.The walk-behind vibratory rollers are small-size vibratory roller, applied to mending and maintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.

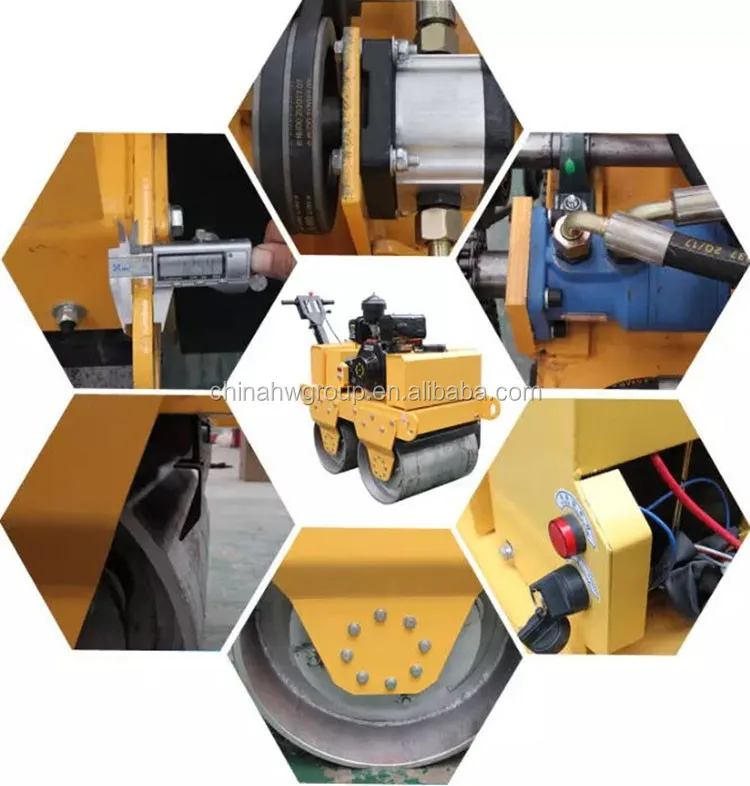

mini china 1 ton ride on vibratory steamrollers features:
1; The international famous brand petrol engine, quality assurance. Powerful and easy to start.
2;Of international famous brand variable plunger pump, the hydraulic system of stable performance.
3;American brand cycloid hydraulic motor, two-wheel driven to walk.
4.International brand precision arrange ushering centripetal ball bearings, to ensure the overall performance in good condition.
5;Pressure water pump control hydraulic system, spray evenly, easy to switch, water more provinces.
6;LED efficient lights, before and after the installation, so that construction at night.

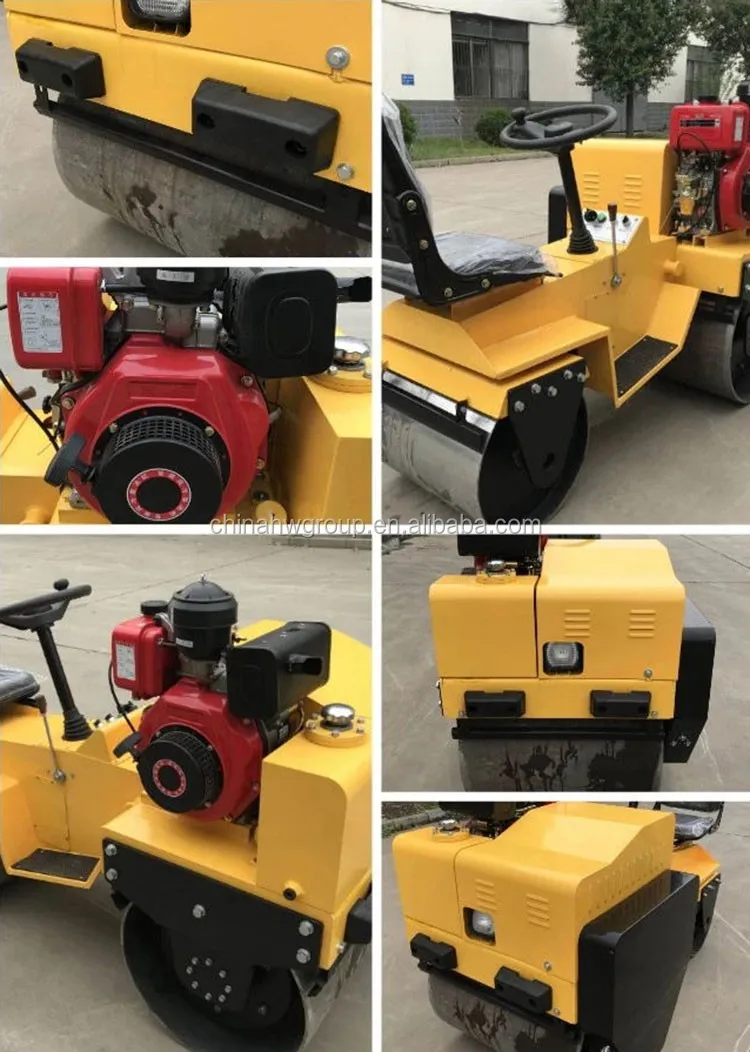

mini china 1 ton ride on vibratory steamrollers
mini china 1 ton ride on vibratory steamrollers
mini china 1 ton ride on vibratory steamrollers
Our product series:

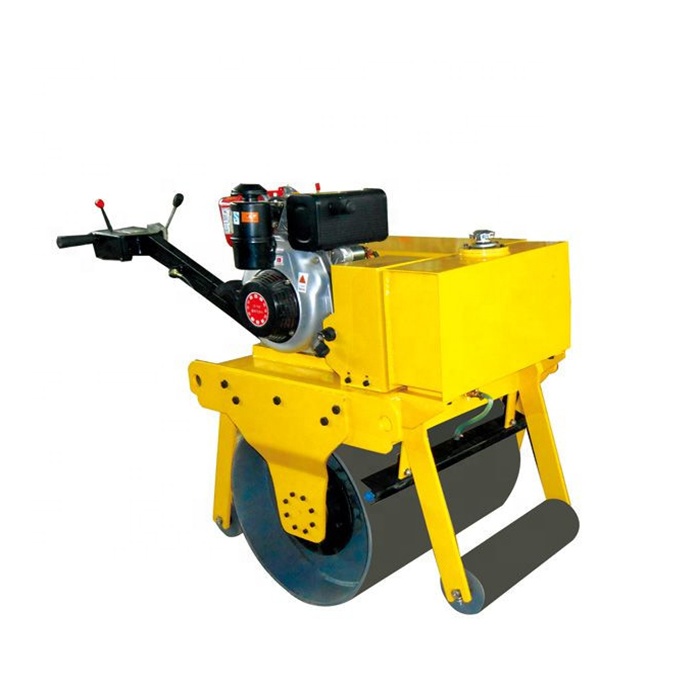

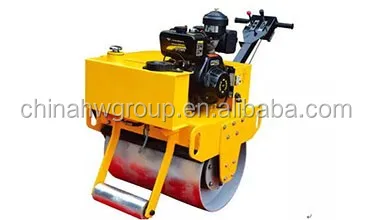

Walk-behind single wheel dieselroad roller HW-YL600C
Work weight:350kg Walking speed: 0-4km/h
Vibration frequency:75HZ Vibration force:20kN
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF170 Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpm Fuel tank capacity:2.5L
wheel:φ450*600mm length about armrest flat:1650mm Height about Arm stand:1300mm
Packing size:1160x900x1100mm
Walk-behind single wheel diesel road roller HW-YL700
Work weight:520kg Walking speed: 0-4km/h
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF178 Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpm Fuel tank capacity:3.5L
wheel:φ450*700mm length about armrest flat:1900mm

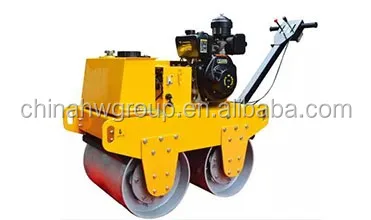

Walk-behind double wheel diesel road roller HW-YLS600B
Vibration frequency:75HZ Work weight:530kg
Vibration force:20KN Water tank capacity:20L Drive:Hydraulic pump and motor
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF178F Diesel engine: air cooling 4 stroke)
Power:4.0hp/3600rpm Fuel tank capacity:3.5L
wheel:φ450*750mm length about armrest flat:2450mm
Height about Arm stand:1800mm
Packing size:1460x810x1230mm
Walk-behind double wheel gasoline road roller HW-YLS600
Vibration frequency:75HZ Work weight:520kg
Vibration force:30KN Water tank capacity:30L
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:GX270 Power4.0hp/3600rpm
Engine: Petrol engine, air cooling 4 stroke
Fuel tank capacity:6L wheel:φ450*600mm
length about armrest flat:2450mm
Height about Arm stand:1800mm
Packing size:1460X810X1230mm
Walk-behind double wheel diesel road roller HW-YLS635
Vibration frequency:75HZ Work weight:700kg
Vibration force:20KN Water tank capacity:25L
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF180F Power 7hp/3600rpm
Engine: Diesel engine, air cooling 4 stroke
Fuel tank capacity:6L wheel:φ350*635mm
length about armrest flat:2360mm
Height about Arm stand:1700mm
Packing size:1460x810x1230mm
Walk-behind double wheel diesel road roller HW-YLS700A
Vibration frequency:70HZ Work weight:570kg
Vibration force:20KN Water tank capacity:30L
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF180F Power 7hp/3600rpm
Engine: Diesel engine, air cooling 4 stroke
Fuel tank capacity:3.5L wheel:φ350*700mm
length about armrest flat:2460mm
Height about Arm stand:1800mm
Packing size:1460x910x1230mm

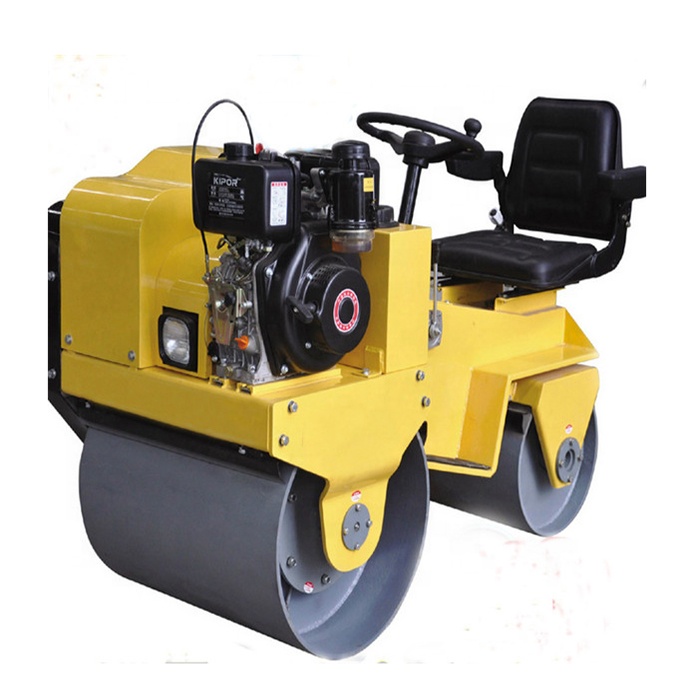

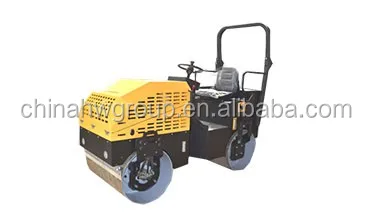

Ride on diesel road roller one ton HW-JSY700A
Net weight :1000kg Tank volume: 50L
Outside turning radius : 2.0 m
Forward / backward speed :0-100 m / min
Vibration Hertz HZ (vpm): 60 (3600) Excitation force: 30KNSteel wheel :φ 530*700mm
Engine type: four-stroke, single cylinder, air-cooled
Engine Model :CF186F Rated power: 8.8Hp
Displacement :0.487L Battery Pack: DC12V
Air Filter Type: G042544 (Donaldson) Fuel type :diesel
Fuel tank volume :5L
Ride on diesel road roller one ton HW-JSY900A
Net weight: 2000kg Water tank capacity of 60L
Outside turning radius:2.4m
Forward / backward speed : 0-100m / min
Vibration Hertz : 60HZ (3600rpm)
Excitation force :30 KN Engine: Changchai engine
Engine type: four-stroke, three-cylinder, water-cooled
Engine Model :3M78 Rated power : 24Hp
Displacement :0.487L Battery Pack : 12VDC
Air Filter Type: G042544 (Donaldson) Fuel type :diesel
Fuel tank volume: 30L

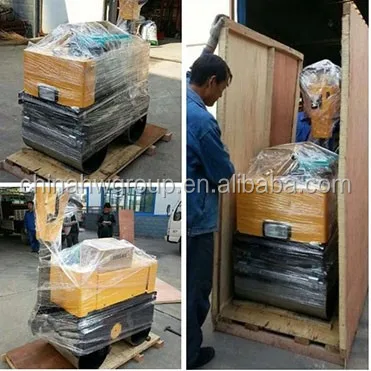

Packing for mini china 1 ton ride on vibratory steamrollers:
We will send the road roller picture which you have orderd, then packing it with standard export wooden box after you have confirmed the machine is ok .
Different machines" package will be different. We usually supply export wooden box ,carton box package. If it is a big machine and production line machine , it will be loaded in the container directly .
Delivery for mini china 1 ton ride on vibratory steamrollers:
1. Delivery by sea :After it was delivered to the seaport . We will tell you the shipping time and arrival time . Finally, we"ll send you all original documents by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .
3.Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .
Shandong Hengwang Group Co.,Ltd

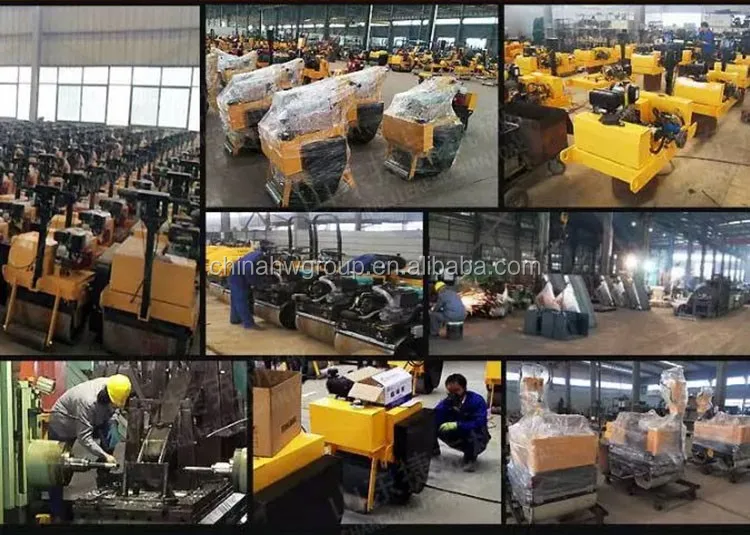

Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of road roller compactor. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
MOQ,Payment,Loading port,price term,OEM
1.Payment : I:100% T/T
II:30% advaced and the balance paid before delivery
III:credit letter at sight
2.MOQ:1Pcs
3.Port of loading: Qingdao Port or others
4.Price term:FOB Qingdao price
5.OEM:we are pleased to be your OEM factory
