- Condition:
- New
- Type:
- Core Drilling Rig
- Power Type:
- Gasoline
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Ore
- Voltage:
- 7.75HP
- Weight:
- 18kg
- Certification:
- CE ISO SGS
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
- orehole diametar:
- 40-108mm
- drill hole depth:
- 30m
- application of rock types:
- soil/medium hard/10 grade
- rotation speed:
- 2200r/min
- water consumption:
- 14.4l/h
- power:
- 173cc
- rod rotation speed:
- 0-800r/min
- drill pipe diameter:
- 32mm
- drill pipe length:
- 720mm
- drill metarial:
- titanium alloys
- Supply Ability:
- 1000 Set/Sets per Month
- Packaging Details
- WOODEN CASE
- Port
- QINGDAO /SHANGHAI

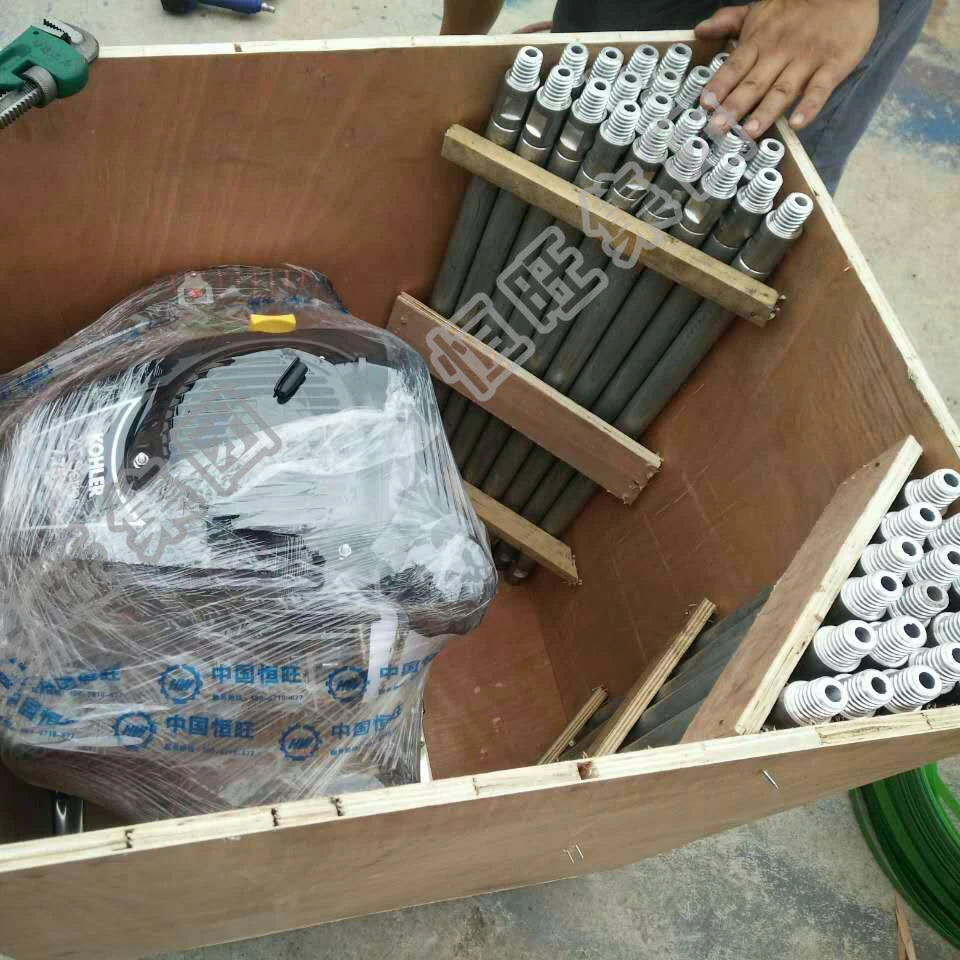

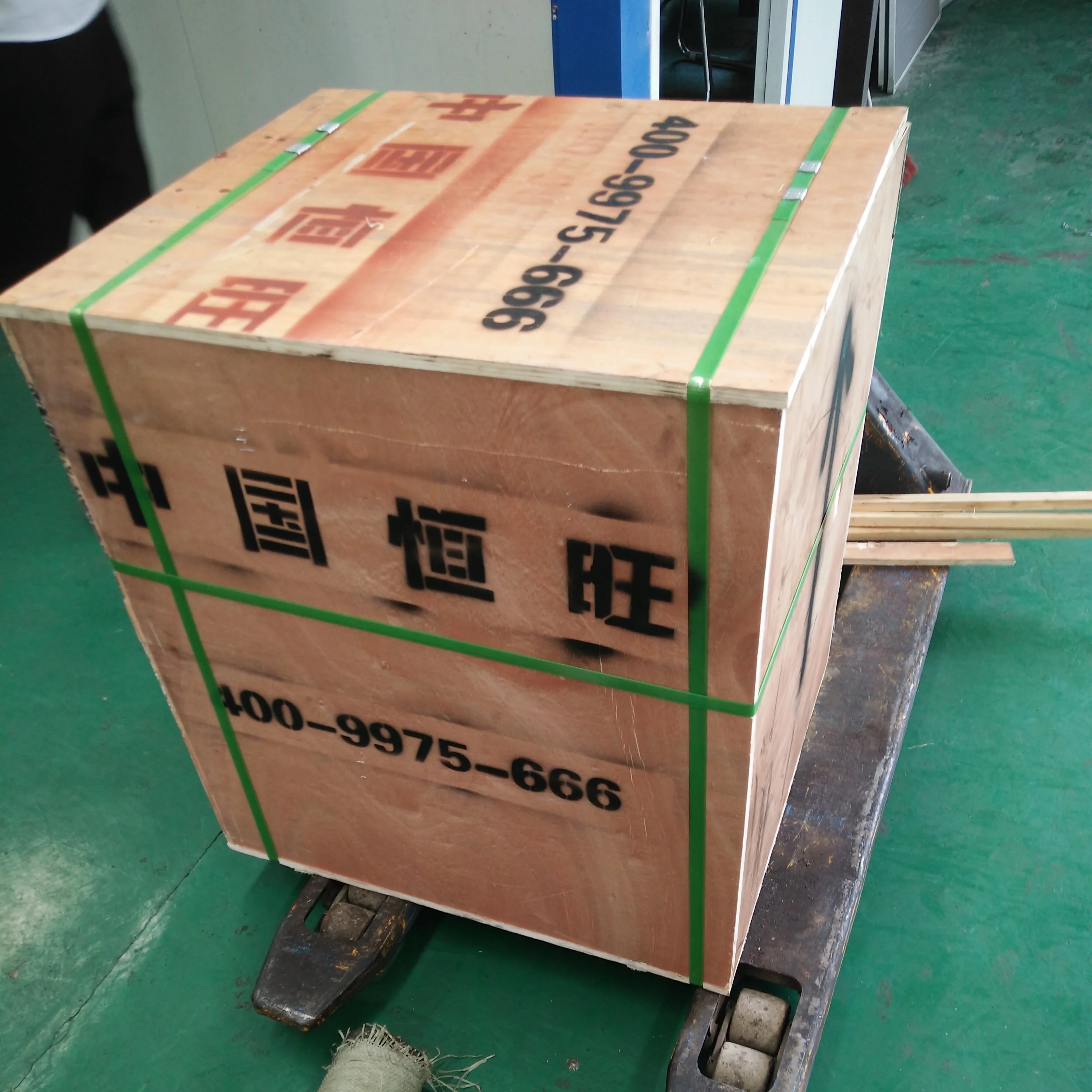

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 5 To be negotiated

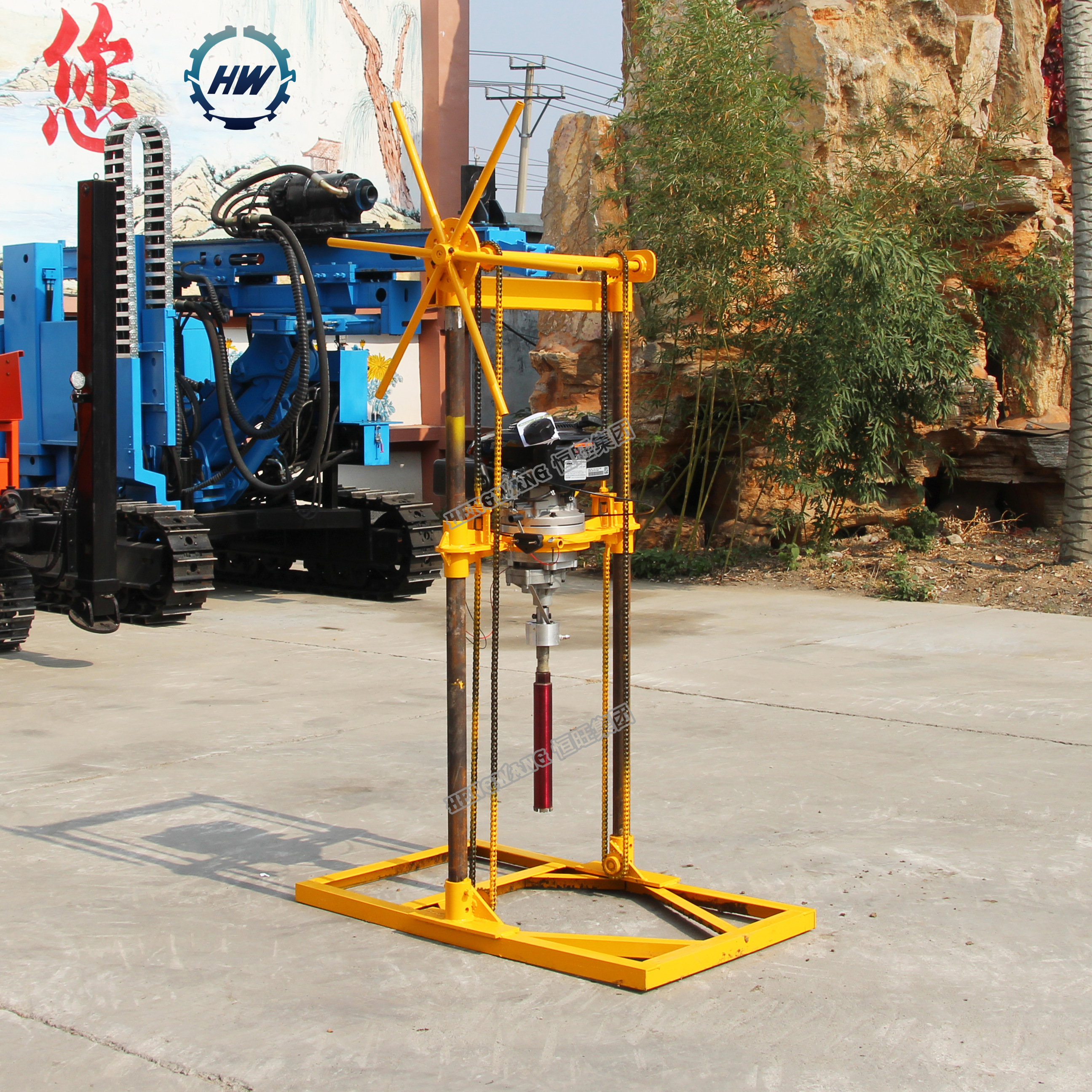

HW-B30 Portable Backpack rock core drilling rig
----------------------------------------introduction of HW-B30 portable backpack rock core drill
HW-B30 is a kind of small portable sampling drilling equipment which is mainly suitable for mountain,transportation and energy.The machine can replace the traditional manual excavation,tank porobe ,take samples and so on.It not only more efficient,but also reduces vegetation damage and protects the environment.It is an indispensable technical means in shallow geological exp;oration,such as regional geological mapping,geophysical exploration sampling,ancient geomagnetic sampling,and geological disaster prevention.
Application fields:geophysical exploration sampling,regional geological mapping,mining vein exploration,mineral exploration.geotechnical engineering testing,various drilling
HW-B30 Portable Backpack rock core drilling rigs Parameter
TITANIUM ALLOYS DRILLING RID

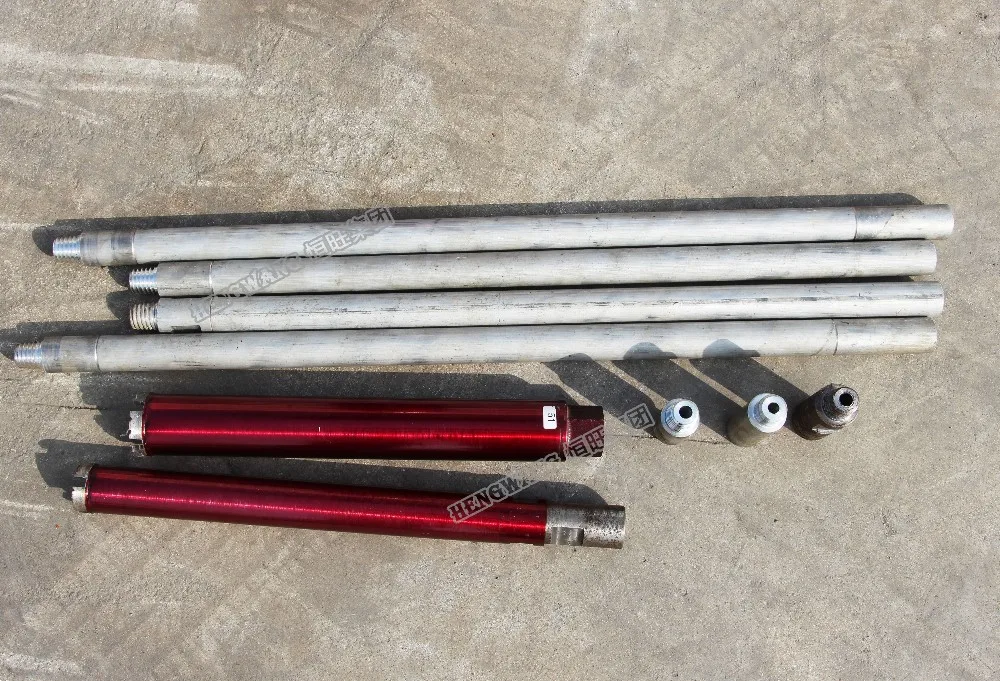

-Every set of HW-B30 including 5 Core drill bits.
-Widely used in geological exploration and assessment.
-Auger and three-wing drills are also available for drilling
works.
In 40mm dia. can drilling 30 depth.(rock:F≤10)

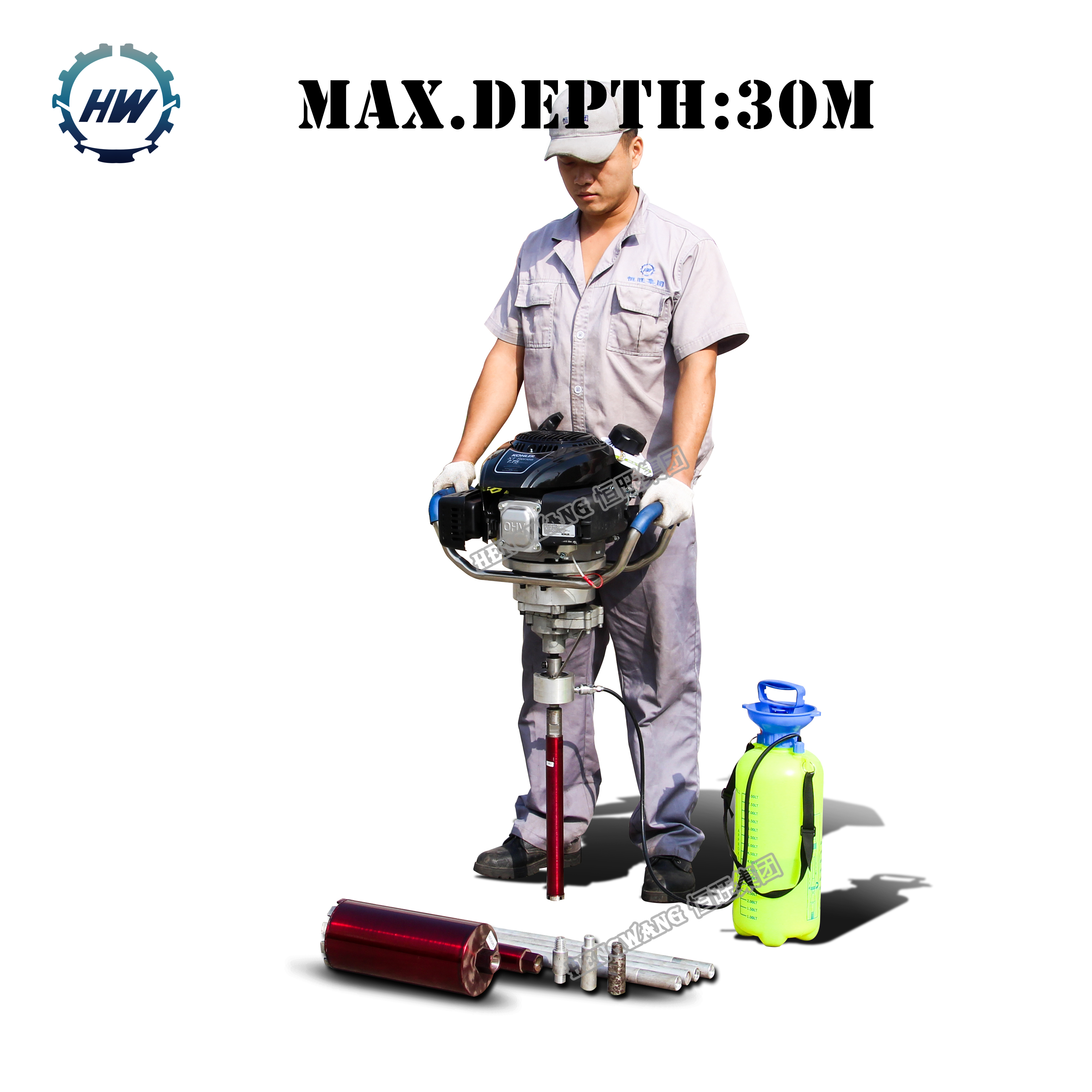

CONVIENIENT AND PORTABLE
-One set is lighter than 30kg, can easliy put in backpack.
-Single person can carry into a variety of complex terrain,And start drilling operations.
Each of our RIGS is available in the following types!-----------------------------------------------
--Rich variety of drilling RIGS-------------------------
- For different depths and geology, We have 20m~3000m types.---------------------------------------------------------------

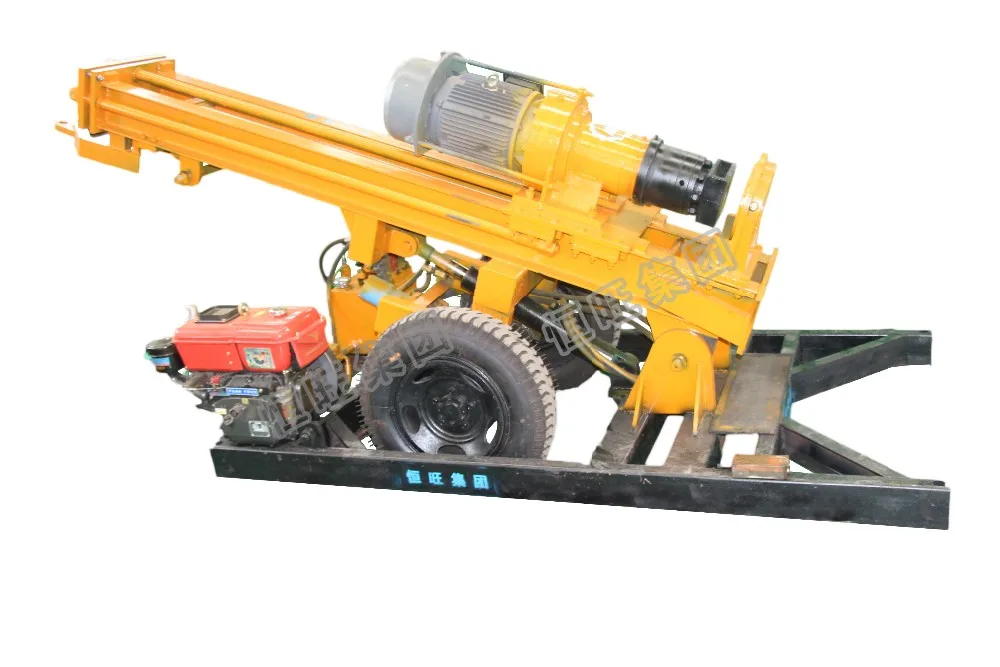

HW160/190/230
Hydraulic Drilling rig
Max.drilling depth:
160m/190m/230m
HW XY-3
Hydraulic Drilling rig
Max.drilling depth:600m
HW XY-44A
Hydraulic Drilling rig
Max.drilling depth:1400m
HW XY-8
Hydraulic Drilling rig
Max.drilling depth:3000m
HW-S30
Pneumatic Drilling rig
Max.drilling depth:30m
Including Air Compressor for choice
HQZ150/180/260/300/400/500
Pneumatic Drilling rig
Max.drilling depth:
150M/180M/26M0/300M/400M/500M
Including Air Compressor for choice
HWL-260L/300L/400L Water/air Drilling Rig
Hydraulic/Pneumatic Drilling rig
Max.drilling depth:260m/300m/400m
