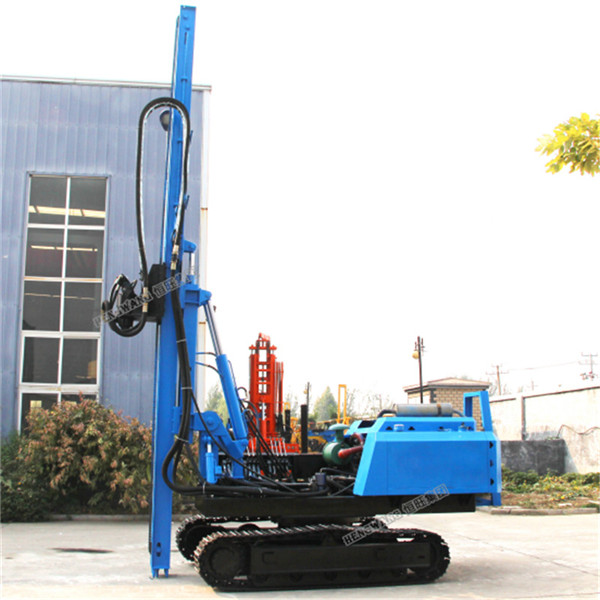

6m length Hydraulic Hammer Pile Driver For Steel Post Installation
Click on the image to view the original image
Product： views：46m length Hydraulic Hammer Pile Driver For Steel Post Installation
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:52
  Negotiated
Product Details
Overview
Quick Details
Piling Speed(m/min):
1m/min
Efficiency:
200pics per day
After-sales Service Provided:
Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Warranty:
1 Year
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Weight:
4500kg
Dimension(L*W*H):
4100*2000*2200
Certification:
ISO
Name:
Piling Machine
Usage:
Pressing Pile
Drill diameter:
0-300 Mm
Drill depth:
7m
Working pressure:
16-20MPA
rill rod diameters:
70 mm
Drill rod weight:
19KGS
Hydraulic hammer weight:
230 KGS
Impacting frequency:
500-900 bpm
Keywords:
Hydraulic Pressusre Pile Driver
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
standard package
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)7To be negotiated

6m length Hydraulic Hammer Pile Driver For Steel Post Installation

Product instruction

1.The crawler hydraulic press pile machine, using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2.The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3.The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.6m length Hydraulic Hammer Pile Driver For Steel Post Installation

Technology Parameter

SPECIFICATIONS FOR HAMMER PILE DRIVER






Pile driver part
Engine power
Kw
80
No. of cylinders
PCS
4
Engine brand

Weicai engine
Working pressure
MPA
16-20
Working flow
L/Min
120
Wheel distance
M
2
Machine size
mm
4100×2000×2200
Machine weight
T
3.5






Track shoe part
Working pressure
MPA
20
Rubber track weight
T
5
Total displacement
1860

Total bearing weight
KGS
5000
Walking speed
kw/h
0-3
Ground connection beta ratio

0.036
Pulling capacity
KGS
4300
Clambing ability

≤ 30





Hydraulic hammer Part
Drill rod diameters
mm
70
Drill rod weight
KGS
19
Hydraulic hammer weight
KGS
230
Working flow
L/Min
40-70
Working pressure
bar
110-140
Impacting frequency
bpm
500-900
Pile height
M
2-7M

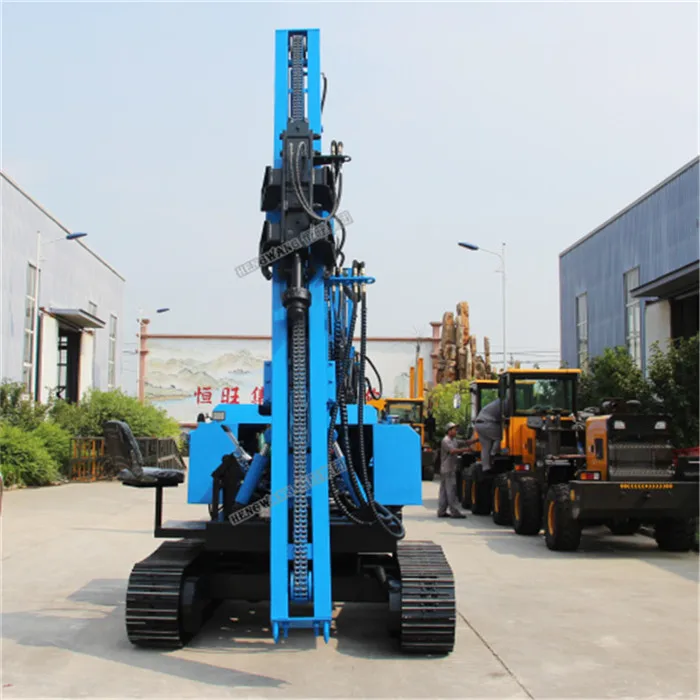

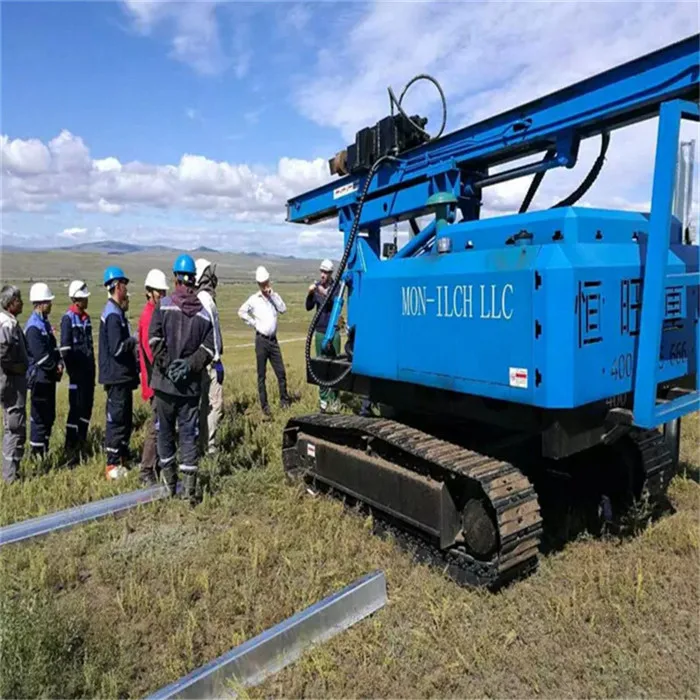

Product Real Photos
