- Dimension(L*W*H):
- 3900*1350*1450mm
- Weight:
- 1950KG
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
- Condition:
- New
- Power Type:
- Electric
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Certification:
- ISC9001
- Product name:
- Concrete Pump
- Type:
- HW-15
- MAX.concrete Output:
- 15m3/h
- MX.pressure:
- 6mpa
- Distribution Valve:
- S Valve
- conveying tube inner dim:
- 100A/70A
- Max.Conveying Distance:
- 300/80m
- Concrete Cylinder Diameter:
- 140*700mm
- Hopper Capacity:
- 0.3m3
- Filling Height:
- 1100mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 400X140X150 cm
- Single gross weight:
- 2000.0 kg
- Package Type:
- wooden case
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 5 6 - 20 >20 Est. Time(days) 3 7 To be negotiated

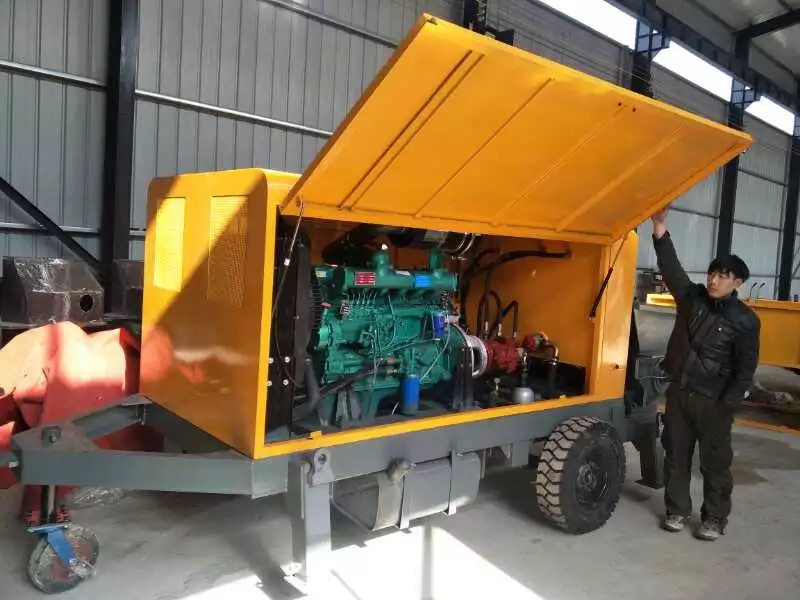

Brief Introduction of Concrete Pump Trailer

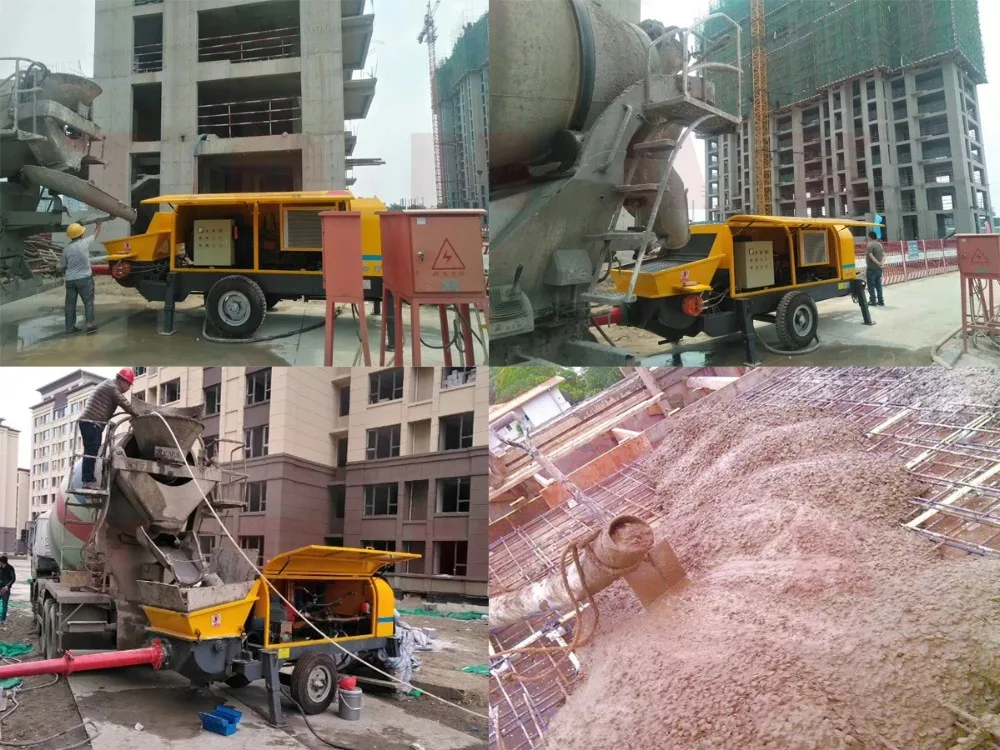

Concrete Mixer pump electric have been widely used in many construction areas such as Water conservancy, Electricity,Railway, Highway, Tunnel, Mine, National Defense, etc. They have also been exported to many countries and got an excellent reputation . Our products have passed BV and ISO9001 International Quality System Certification and the mining concrete pumps have passed the Safety Certificate of Approval for Mining Products.
Features of Concrete Pump Trailer
♦ High quality concrete pump trailer equipped with high efficiency concrete pumping system.
♦ Hydraulic double-cylinder piston system, more stable flow, more uniform and stable spraying.
♦ Dual-piston alternately working, manual and automatic hydraulic synchronous lubrication system, longer mortar piston life.
♦ Further optimized pumping flow path to reduce the pumping resistance and the probability of tube block. Mortar stop pressure relief valve, pumping cleaning ball washing, more secure and faster cleaning operation.
♦ Advanced hydraulic system.
