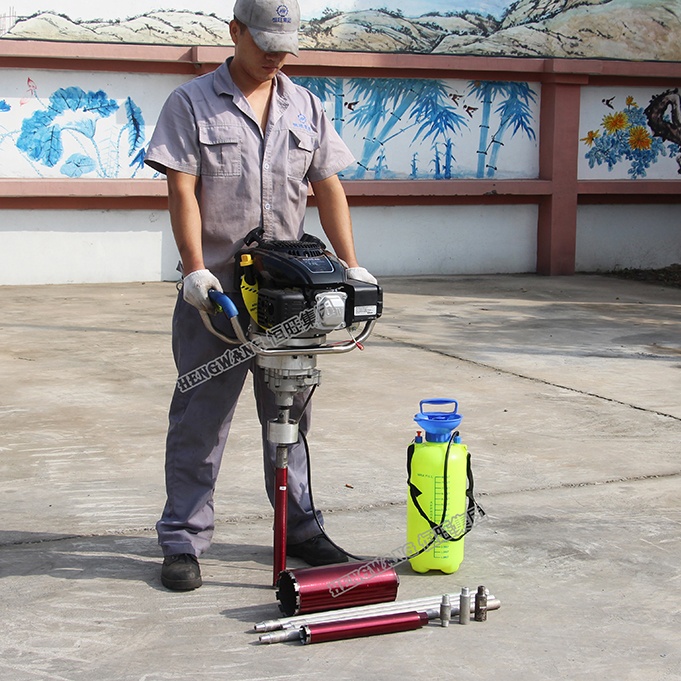

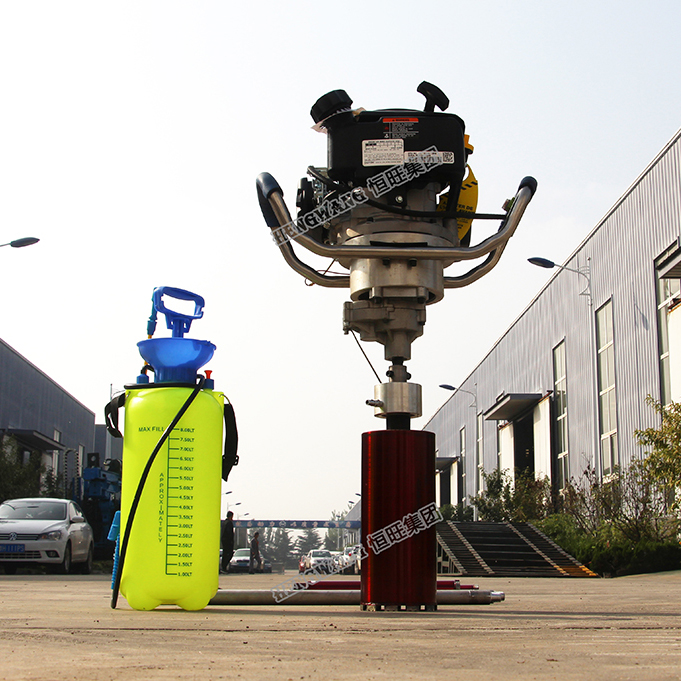

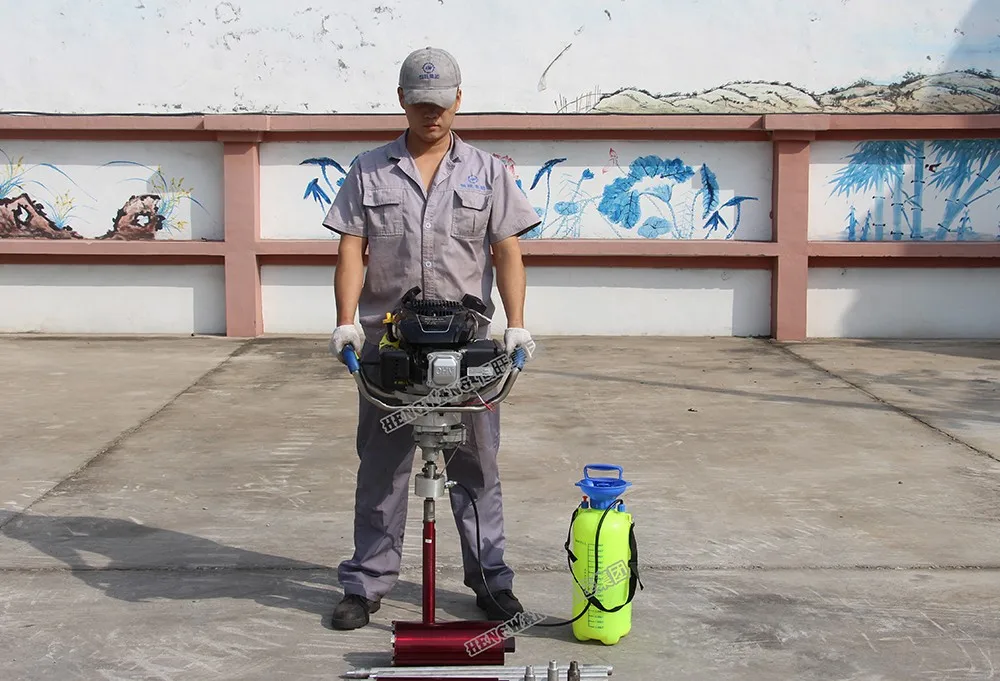

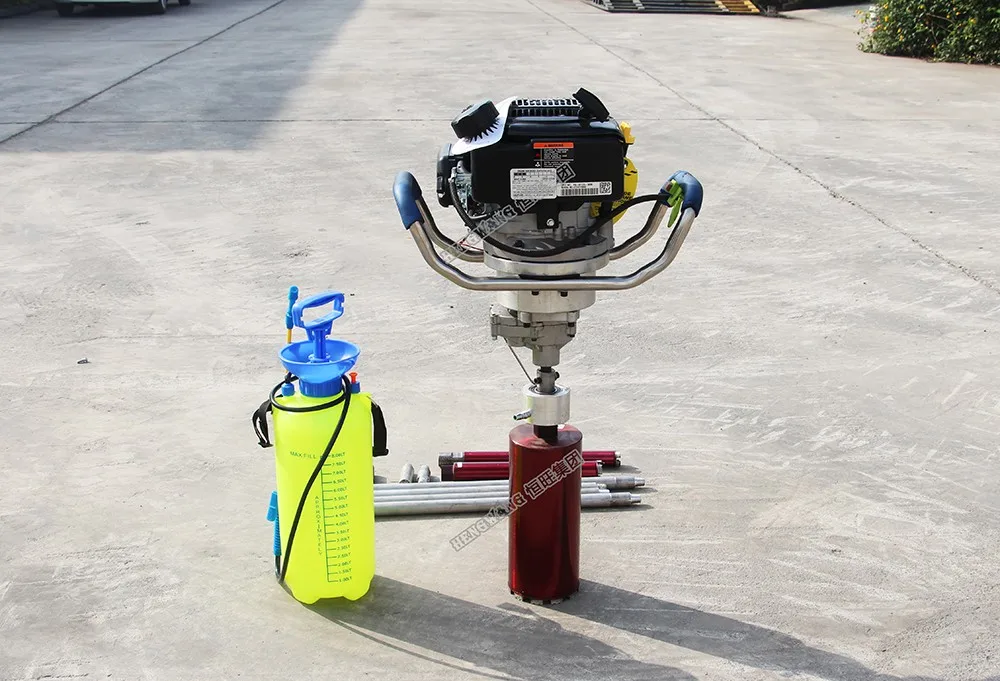

Portable diamond rock core drilling rig
Backpack Portable Core Drilling Machine is designed for mineral, oil and gas exploration,It is tailored
for geological research and prospectors, it has experienced decades of experience and accumulation in dozens of countries and regions in the world of the field validation, We constantly improve and upgrade
the quality of our products and believe that the equipment will be helpful for your work.
1). All the drilling equipment can be bearing by a single person;
2). The most light drilling equipment!!!!! The weight of all equipment is only 27 kg ;
3).For mountains, the traffic inconvenience, lack water areas ,it"s easy to use.

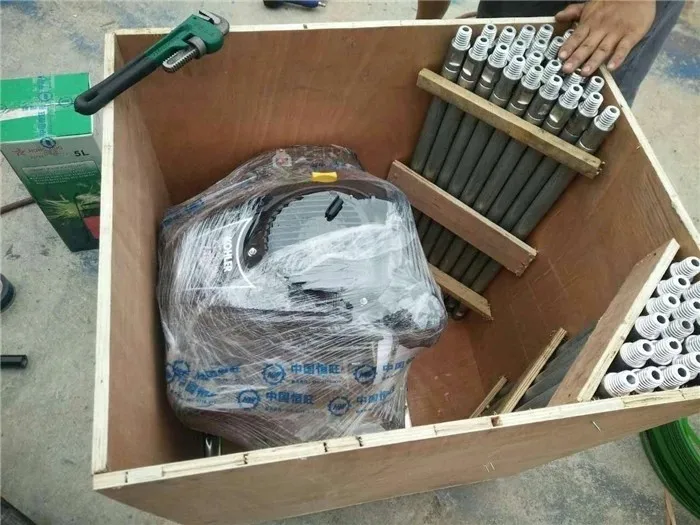

4).Easy to carry a whole set of drilling rig and spare parts into the backpack, a standard set of portable drilling machine and its accessories is not more than 27kg weight.
5).All equipment used in drilling and collect all kinds of rock samples of tools are available in a
backpack, a normal adult men and women all can easily afford.In addition, the bags have enough
space to spare fuel, potable water, and personal items.
6).The operation is flexible as long as simply rotate and push and pull, no additional tools, can be
linked or extend the whole device, easy disassembly drag. Coupled with the core draw, can quickly
and thoroughly remove core and core fragments.
7).Quick drilling, our drilling rig is a patented product in China, drill through a variety of rock surface efficiency is unique, special formula of diamond bit has a sharp notch, save time and effort, and ensure
the service life of enough.

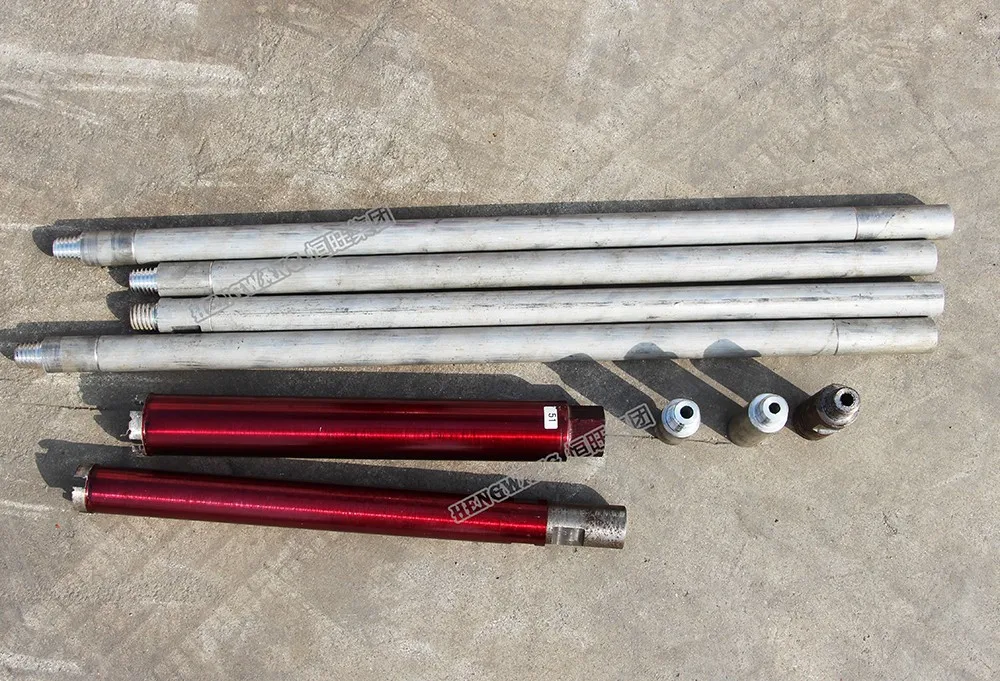

Drill pipe
This portable core sampling rig is the first in the industry to use titanium alloy drill pipe. The titanium alloy drill pipe has the advantages of light weight, high strength, good corrosion resistance and high heat resistance. The weight of the drill pipe is reduced to the greatest extent without affecting the hardness of the drill pipe. The weight of each 75cm (including the hand) titanium alloy drill pipe is 1.1kg, which is only 1/3 of the weight of the ordinary cast steel drill pipe. Medium and deep hole core sampling work with φ42-108mm aperture
Drill bit
The diamond thin-walled core drill bit is made up of a combination of a long thin-walled coring tube and a diamond cutting head. It has the characteristics of fast drilling efficiency and complete core sampling.
Water pump
The manual high-pressure water pump used in the drilling machine injects the indispensable water into the drilling process of the drilling machine by squeezing the exhaust water to accelerate the drilling efficiency. The attached water injection pipe is equipped with a throttle valve switch to control the amount of water injection during the drilling process, and can also respond to different geological conditions by controlling the water injection volume.
