Overview
Quick Details
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Electric
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Ore
- Voltage:
- 380V
- Dimension(L*W*H):
- 1524*552*525mm
- Weight:
- 120KG
- Certification:
- ISO9001
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
- Product name:
- Leg-type DTH Drilling Rig
- Model:
- HQ70
- Color:
- Orange
- Drilling diameter:
- 50-80mm
- Drilling depth:
- 15M
- Rotate speed:
- 70-90r/min
- Drill pipe:
- 42mm
- Main host dimension:
- 1524mm
- drive the cylinder diameter:
- 90mm
- mian host weight:
- 110kg
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 155X56X55 cm
- Single gross weight:
- 130.0 kg
- Package Type:
- WOODENCASE

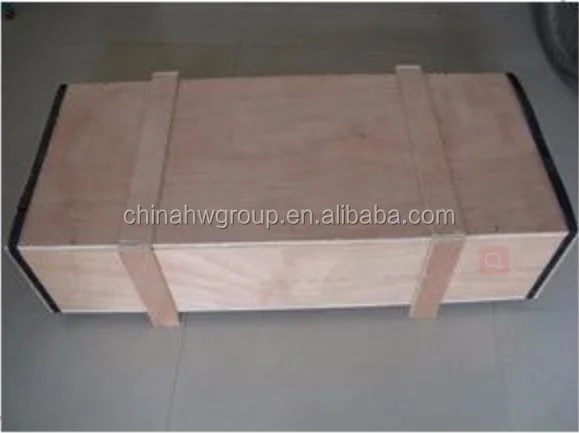

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 10 11 - 50 >50 Est. Time(days) 7 20 To be negotiated
Product Description

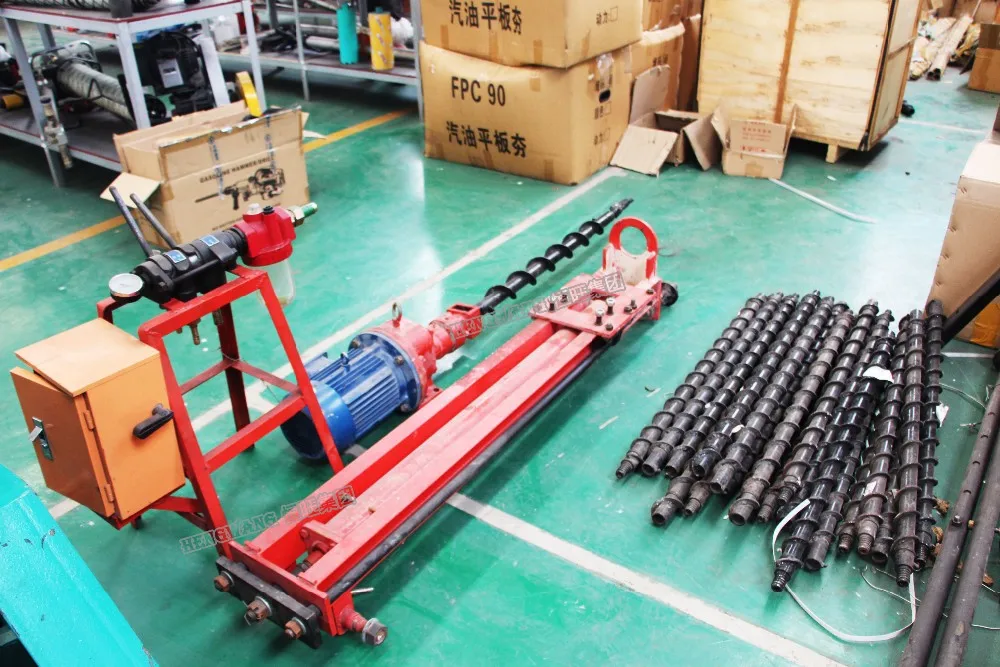

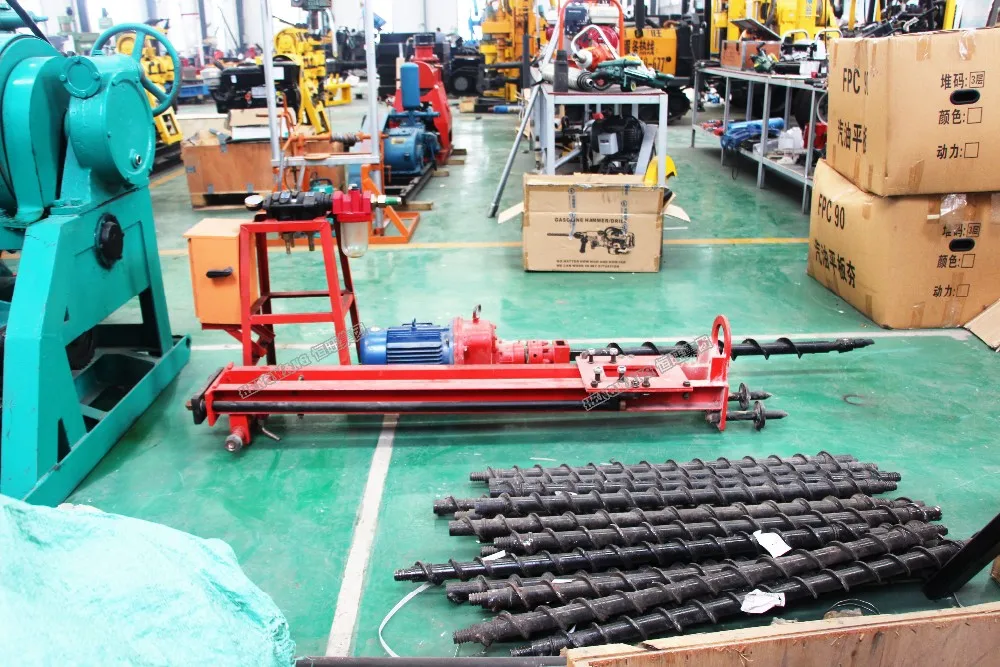

Leg-type DTH drilling rig
HQ70 Small Portable Water Well Drilling Machine Mini Bore Well Drilling Machine is mainly used to drill rocks, stones, floor, etc. in mining and road construction, water conservancy, national defense and other projects. It can work well in rugged terrain. It"s your necessary and ideal machine in drilling work. With different models for your option, you could drill rocks, soil, sand, etc.
The drilling speed is 3-8 times of that if a rock drill.The drilled ore can live a very high rock drilled with a hardness in the range of F=8-16.The driling depth per hour is about 8-16 meters.
