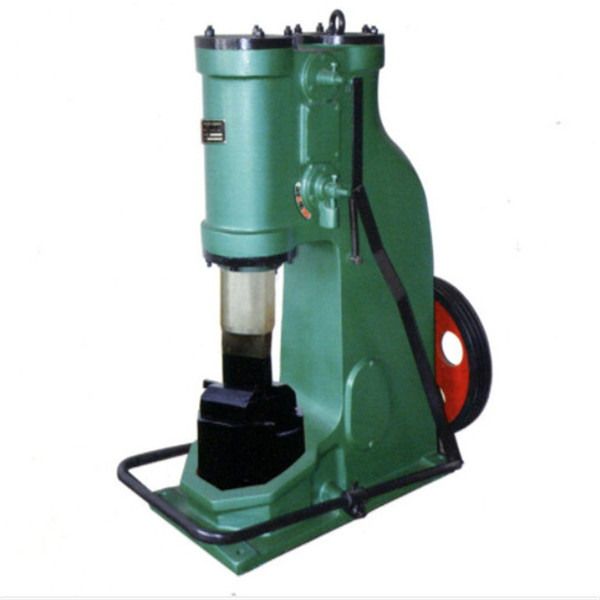

40kg wrought iron metal forging power hammer
Product instruction
The air forging hammer is easy operation ,flexible movement and convenient to transit ,
installation ,maintenance ,the type is widely used for various of free forging works ,
such as drawing out ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .
It is also used for open die forging in bolster dies. 40kg wrought iron metal forging power hammer
it is suitable for free forging works of all kinds of different shape parts ,
especially suitable for village township enterprise and self-employed forge small agriculture tools .
For example sickle ,horseshoes ,Spike ,hoe etc . 40kg wrought iron metal forging power hammer
At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,
scaffold and many other factories and mines ,construction supplies .
In addition the series air hammer is very commonly professional blacksmith"s iron tools
that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.
Technology Parameter

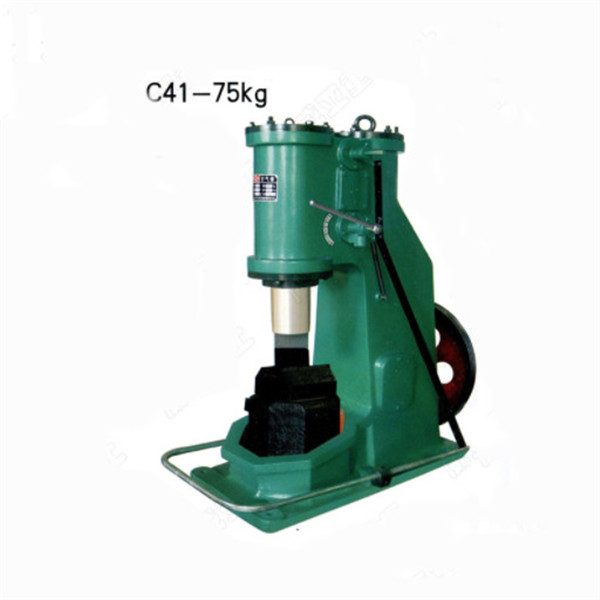

Model | C41-25 | C41-40 | C41-75 | |
Nominal Dropping Weight (KG) | 25 | 40 | 75 | |
Hit Energy (KJ) | 0.27 | 0.53 | 1 | |
Hits Per Minute | 250 | 245 | 210 | |
Hit Stroke (MM) | 240 | 245 | 297 | |
Material Size (MM) | Square Bar | 40x40 | 52x52 | 65x65 |
Round Bar | 48 | 68 | 85 | |
Motor Power (KW) | 3 | 4 | 7.5 | |
Standard Voltage | 380V 50HZ 3PHASE; Other voltage or frequency on request | |||
Weight (KG) | 720 | 860 | 2500 | |
Dimension (MM) | 1100x500x1300 | 1400x600x1500 | 1480x800x1853 | |
Product Real Photos
