- Max. Conveying Distance:
- 5m
- Max Aggregate Size:
- 15mm
- Power(W):
- 5500W
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
- Condition:
- New
- Hose Inner Diameter:
- 42 mm
- Air Consumption:
- 7-8m3/h
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Voltage:
- 380v/440v/660v
- Dimension(L*W*H):
- 1520 * 820 * 1280mm
- Weight:
- 700KG
- Certification:
- ISA9001
- Product name:
- shotcrete machine
- production capacity:
- 5m3/h
- Model:
- PZ-5
- Motor Power:
- 5.5KW
- max. tansportation distance:
- 200m
- proportioning cement/sand:
- 1:3~1:5
- water-cement ratio:
- <0.4
- the biggest bone size:
- 15mm
- transporting pipe inner:
- 51mm
- rotor block dia.:
- 438mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 155X85X132 cm
- Single gross weight:
- 750.0 kg
- Package Type:
- woodencase

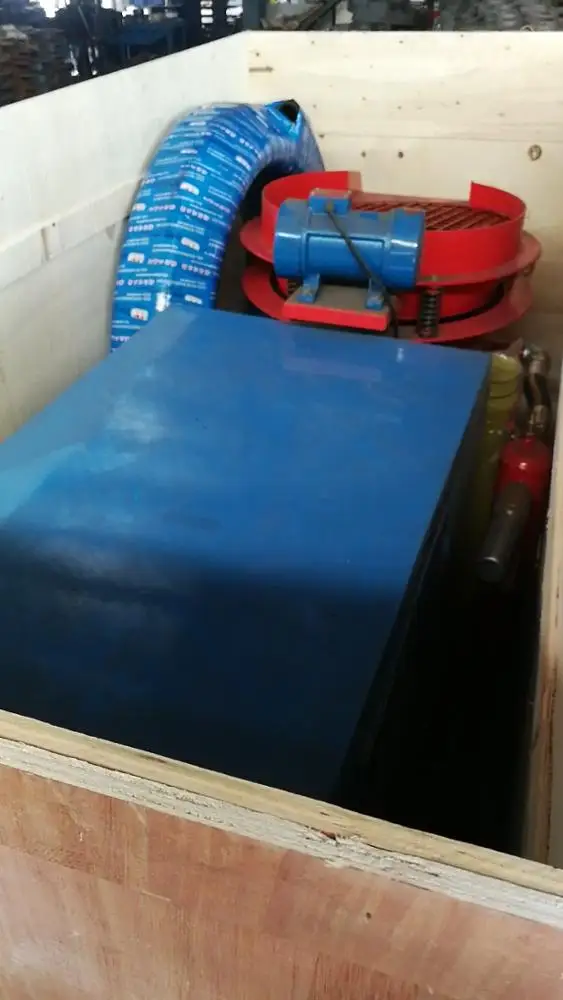

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 10 11 - 50 >50 Est. Time(days) 7 20 To be negotiated

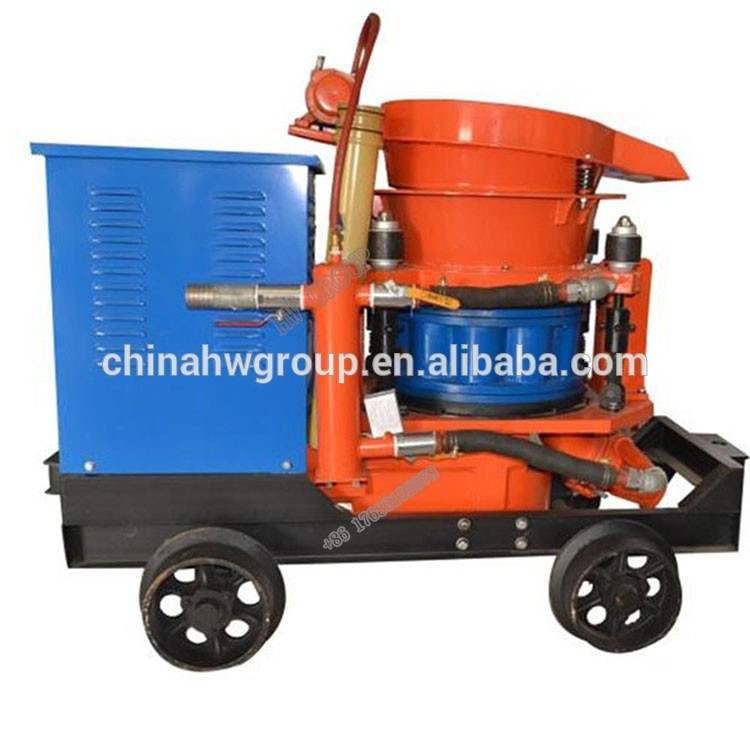

HW SHOTCRETE MACHINE BEST QUALITY!!!BEST PRICE!!!
Sotcrete machine uses:

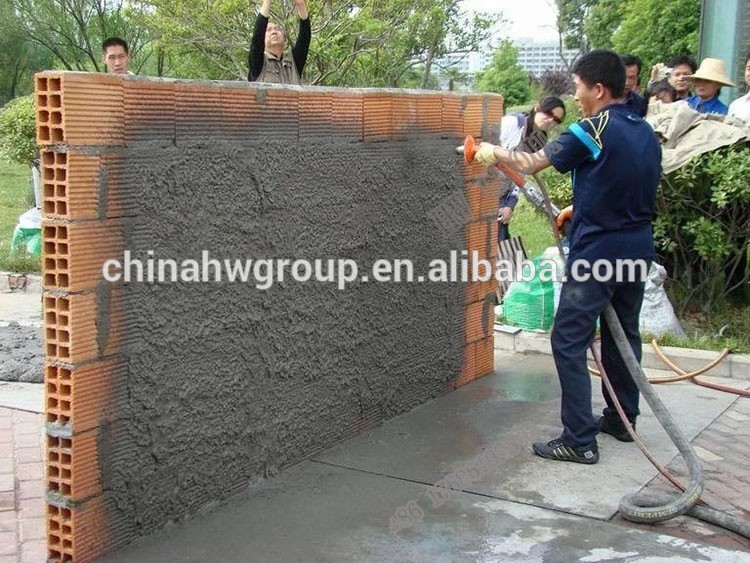

Used in shotcrete machine is widely used in engineering construction, mines, tunnels, culverts, subway, water and electricity engineering, underground
engineering and coal moors mine laneway shotcrete.
Construction:
various types of industrial furnaces, lining refractory spraying forming or repair: all kinds of slope protection afforestation construction, soil and injection.
Shotcrete machine characteristics and advantages :
Through the rotor type is not binding material cavity, discharging unobstructed, efficient time-saving: elastic compensation compaction at four o "clock, good sealing effect, by little dust, parts, long service life: using high-speed low pressure vortex air transportation, overcome the bonding in the material conveying, blocking pipe and pulse from the problem such as folding, uniform material flow, continuous stable: new type of nozzle, the discharge elbow device, improve the effect of spray application of, less resilience, spray layer of high quality. Machine chassis can be assembled into tyred, slide rail wheel type and all kinds of gauge.
Wall Plastering machine
Plastering Speed:500sqm/8H
Shotcrete Machine
capacity:90L/160L/240L/350L/500L/700L
Power:500w~5KW
weight:50kg~700kg
power type:diesel/motor/gasoline
Concrete Pump
Transport Distance:
Horizontal:30m~500m
Height:10m~150m
Power:8KW~45kw
power type:Motor/diesel
Slef-loading Concrete Mixer Truck
