- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Electric
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- coal / ore / water well
- Dimension(L*W*H):
- 2.4*0.8*1.4M
- Weight:
- 620KG
- Certification:
- ISO9001
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
- Product name:
- Hydraulic drilling rig
- Model:
- HW-190
- open hole dia.(soil):
- 500mm
- open hole dia.(rock):
- 220mm
- end hole dia.:
- 75mm
- matching power:
- 13200w
- drilling depth:
- 190m
- mud pump flow:
- 95L/min
- mud pump max.pressure:
- 1.2mpa
- drill mast effvtive height:
- 6.5m
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 260X100X150 cm
- Single gross weight:
- 700.0 kg
- Package Type:
- wooden case
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 5 6 - 20 >20 Est. Time(days) 7 20 To be negotiated
BEST QUALITY!!!BEST PRICE!!!HW-DRILLING RIG!!!!

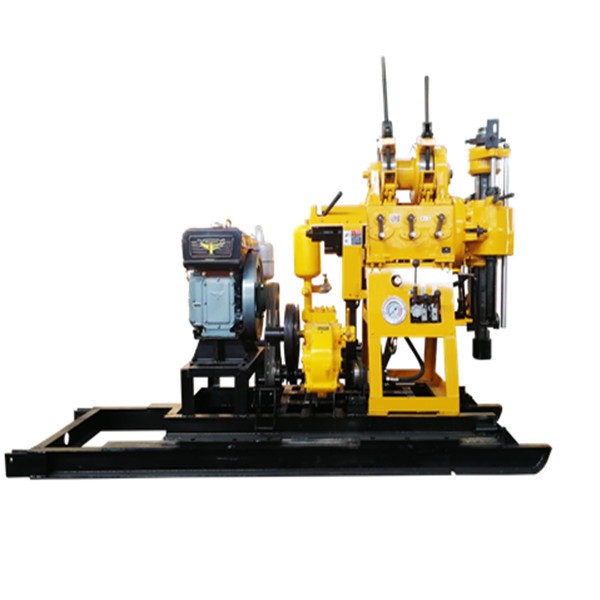

HWseries hydraulic drilling rig is a kid of widely used portable drill machine. It is uitbale for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservanc, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.
Main features
1.It improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.
2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.

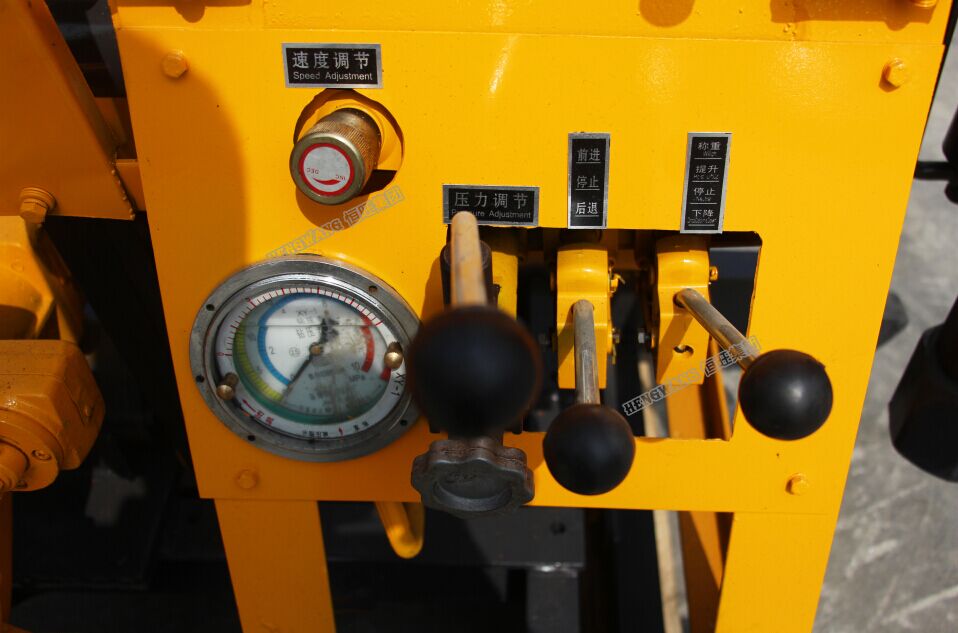

3.It has hole bottom pressure gauge to be easy tp master the situation in the hole.
4.It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas.
There are also moving slipway type HW190YY / trailer mounted type HW190T / crawler type HW190L / tricycle type HW190S
Meet your different needs!!!!
