Overview
Quick Details
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Electric
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- coal / ore / water well
- Dimension(L*W*H):
- 2.4*0.8*1.4M
- Weight:
- 620KG
- Certification:
- ISO9001
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
- Product name:

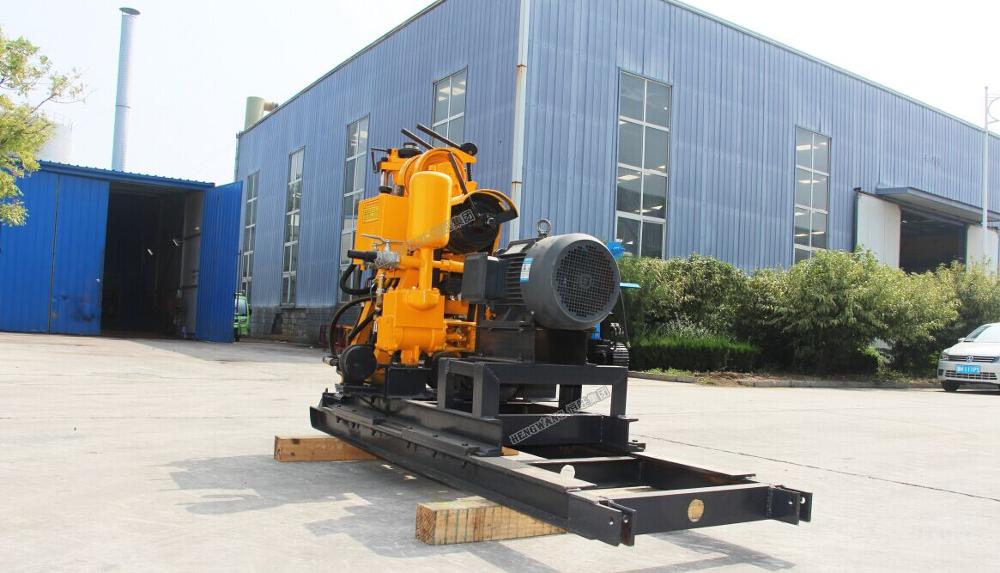

- Hydraulic drilling rig
- Model:
- HW-190
- open hole dia.(soil):
- 500mm
- open hole dia.(rock):
- 220mm
- end hole dia.:
- 75mm
- matching power:
- 13200w
- drilling depth:
- 190m
- mud pump flow:
- 95L/min
- mud pump max.pressure:
- 1.2mpa
- drill mast effvtive height:
- 6.5m
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 260X100X150 cm
- Single gross weight:
- 700.0 kg
- Package Type:
- wooden case
- Picture Example:
- Lead Time:
Quantity(Set) 1 - 5 6 - 20 >20 Est. Time(days) 7 20 To be negotiated
