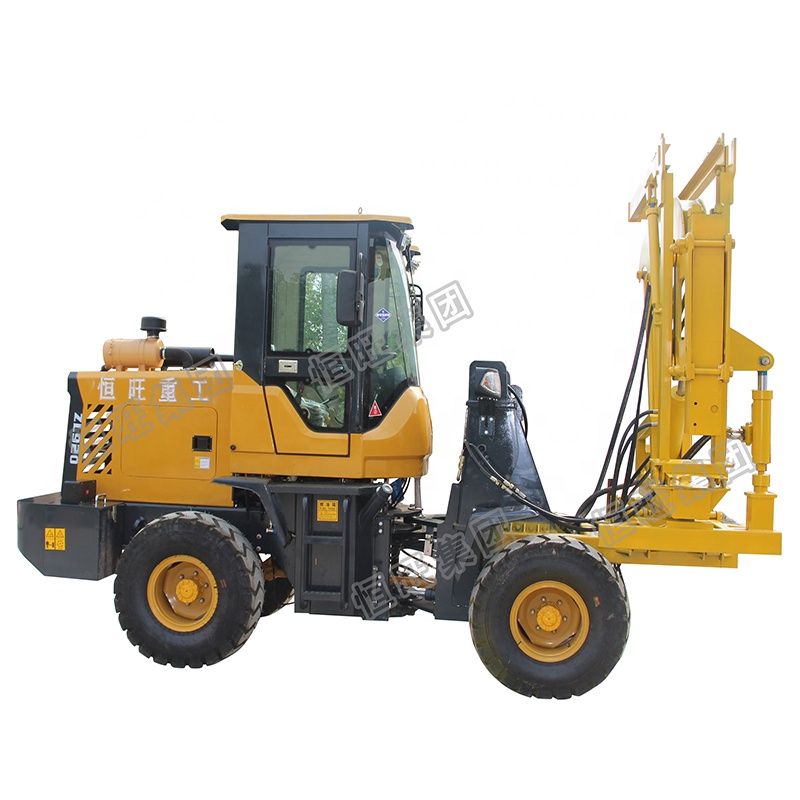

hydraulic diesel vibratory mini pile driver

Click on the image to view the original image

Product：	views：6hydraulic diesel vibratory mini pile driver
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:53

Product Details

Overview

Quick Details

Piling Speed(m/min):: 2.7m

Efficiency:: High

After-sales Service Provided:: Video technical support, Online support

Warranty:: 1 Year

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Weight:: 4t

Dimension(L*W*H):: 3200*2000*2900mm

Certification:: ISO9001:2015

Name:: hydraulic diesel vibratory mini pile driver

Diesel power:: 40kw

Pile diameter:: 114-220mm

Pile length:: 2.6-3.3m

Hydraulic system:: 80-110L/Min

Rated system pressure:: 15Mpa

wheel track:: 1620mm

Pile hydraulic hammer weight:: 80kg

Hydraulic hammer frequency:: 500-900Bpm

Drill power unit weight:: 60kg

Supply Ability

Supply Ability:: 100 Set/Sets per Month hydraulic diesel vibratory mini pile driver

Packaging & Delivery

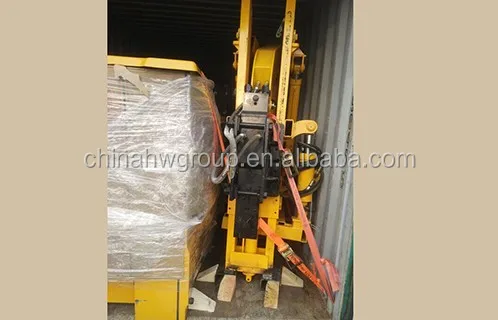

Packaging Details: naked packing for hydraulic diesel vibratory mini pile driver

Port: Qingdao

Lead Time:

Quantity(Sets)	1 - 1	2 - 10	>10
Est. Time(days)	15	30	To be negotiated

Product Description

Load-type guardrail drilling rig is a piling drilling machine widely used in highway, railway, construction, hydropower, port and other construction projects. In recent years, Hengwang has been repairing both inside and outside the production of pile driver, and has obtained structural parts and shifting. A major breakthrough in the quality of the optional parts of the box, the sales of the products continue to rise, and the product technology and product services have moved to the forefront of the industry.

The load-bearing guardrail drilling rig has a good overall layout, compact structure, reasonable center of gravity layout and good stability. The body and the walking system have a good cushioning effect, with advanced product performance, high work efficiency, comfortable operation, and standardized components for key components, which can adapt to various harsh working environments and are ideal equipment for construction.

In addition, the high-power engine and the enclosed rear bin extend the service life of the engine, and the construction time is greatly lengthened, the power is large, and the working ability is strong. The key components such as the engine, the box, the bridge and the hydraulic system are all made of reliable components, which improves the reliability of the whole machine.

According to the market demand and the maturity of its own technology, the following products are developed according to the market demand and the maturity of their own technology. The product adopts a new design concept, carefully develops the overall function, and adopts a modular and balanced design concept. More conducive to rapid product installation and transition.

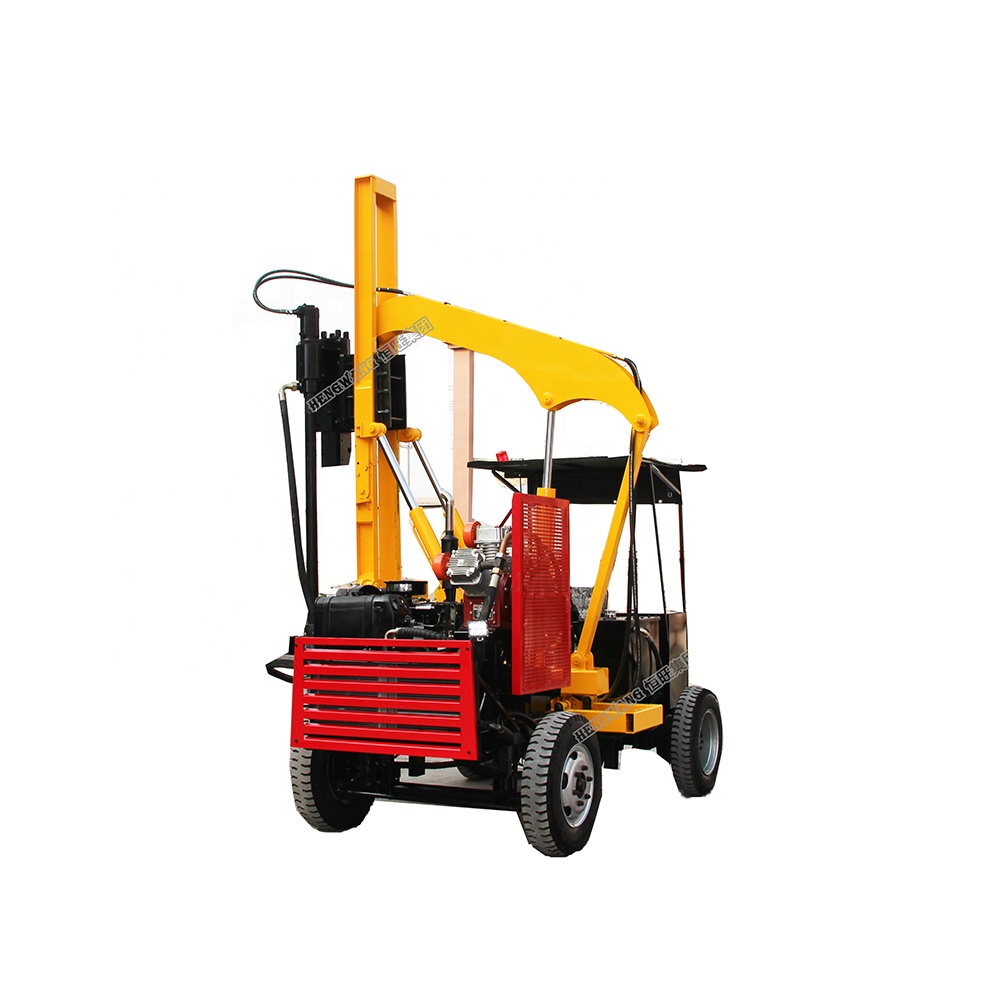

Driven precast concrete piles post ramming pile driver
Model	HW20
Diesel power	40KW
Pile diameter	114-220mm
Pile length	2.6-3.3 m
Hydraulic system flow	80-110(L/Min)
Rated system pressure	15(Mpa)
wheel track	1620mm
wheel base	2070mm
Dimension(LWH)	320020002900mm
Weight	3400kg
Pile hydraulic hammer weight	80kg
Hydraulic hammer frequency	500-900Bpm
Hydraulic hammer working flow	40-70L/min
Hydraulic hammer working pressure	11-14Mpa
Drill power unit weight	60kg

Main Features

1,The host model of guardrail pile driver: the domestic standard 20 loader.

2, Construction geology: highway, railway guardrail pile driver, (plus air compressor can play rock).

3, The standard diameter: standard diameter 114-180mm, the largest aperture 200mm.

4, Configuration air compressor: Recommended 8 cubic air compressor, for the duration requirements, please configure a large air compressor, powerful, fast.

5, The product advantages: four-wheel drive, turbocharged, powerful.

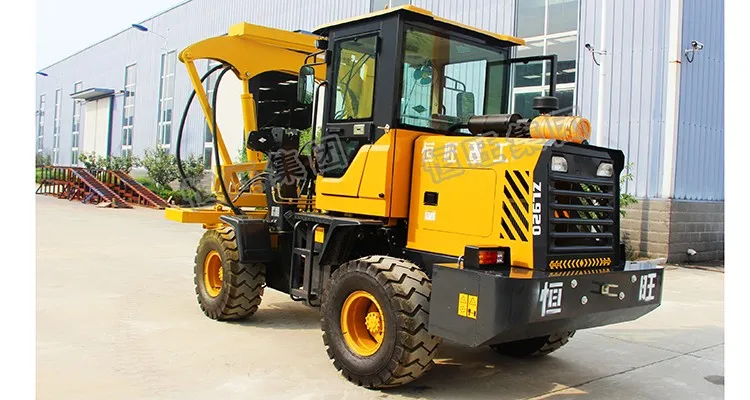

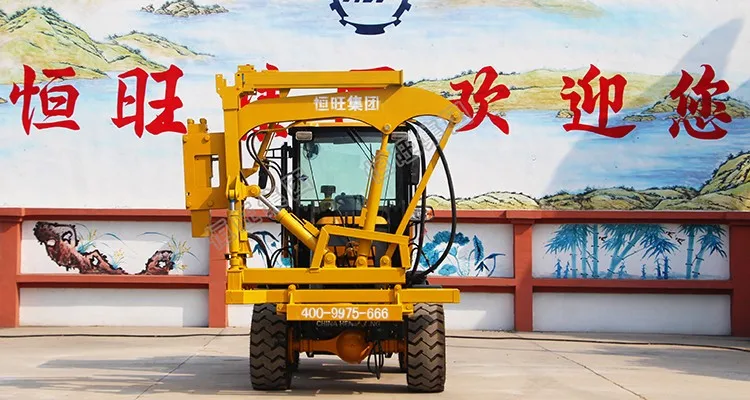

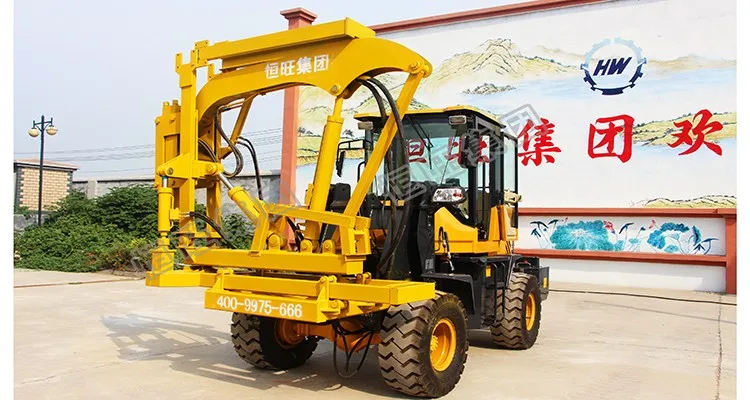

Detailed Images

hydraulic diesel vibratory mini pile driver

hydraulic diesel vibratory mini pile driver

hydraulic diesel vibratory mini pile driver

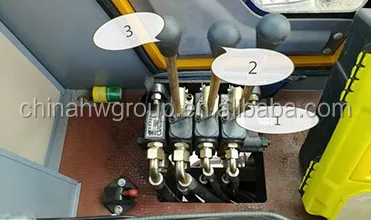

Name: Hammerhead directional valve for highway guardrail pile driver

Brand:HW

Original: China

Reversing valve is a valve to realize hydraulic oil flow communication, cutting and reversing, as well as pressure unloading and sequence action control, is a direction control valve with two or more flow forms and two or more oil ports.And can be sensitive to control any part of the machine.

hydraulic diesel vibratory mini pile driver

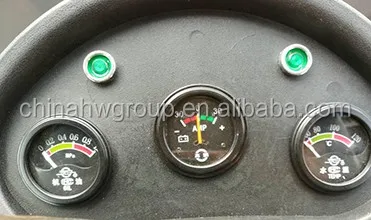

Name: Dashboard for highway guardrail pile driver
Brand: HW
Original: China
You can clearly know the oil level, electric quantity and water temperature

hydraulic diesel vibratory mini pile driver

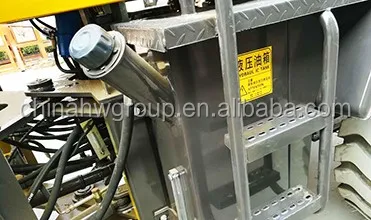

Name: Hydraulic oil tank
Brand: HW
Original: China
The hydraulic oil level shall ensure the normal test demand when the equipment leaves the factory, and the hydraulic oil shall be added by itself when working normally.
