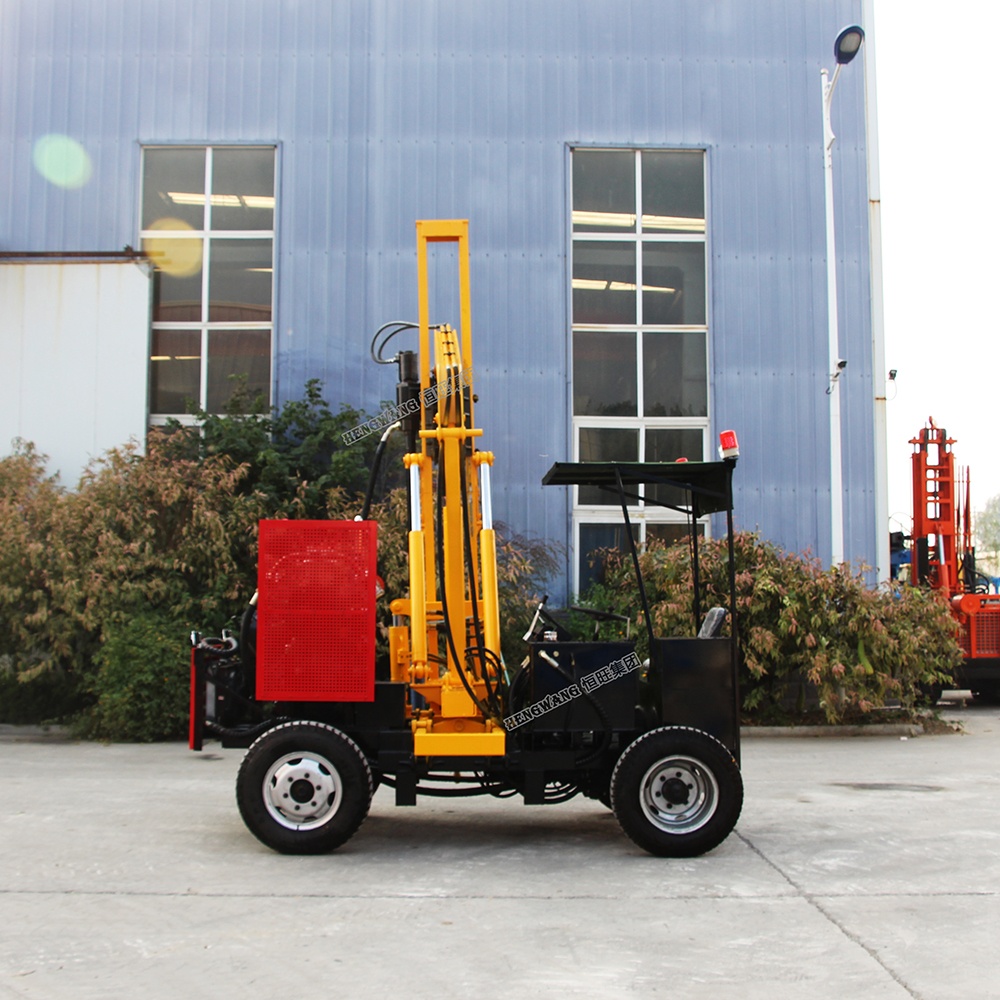

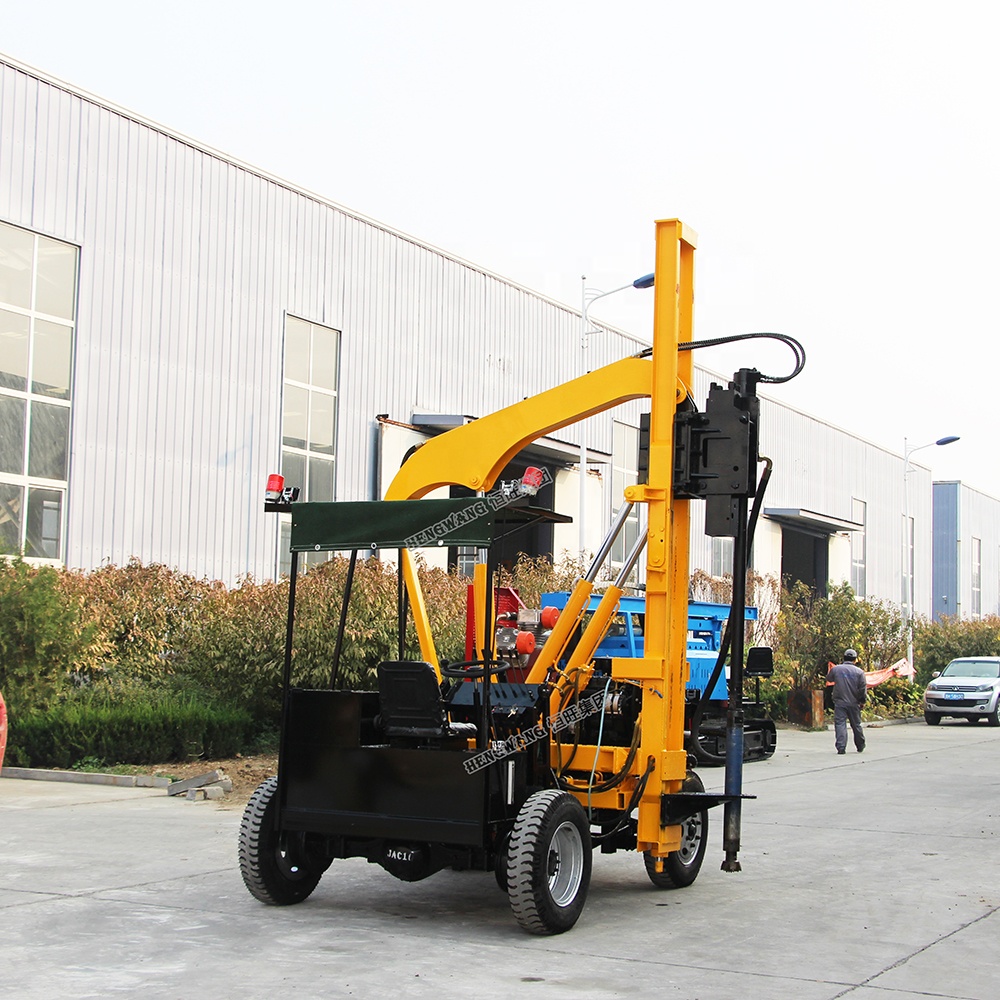

High efficiency highway hydraulic pneumatic pile driver

Click on the image to view the original image

Product：	views：4High efficiency highway hydraulic pneumatic pile driver
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:53

Product Details

Overview

Quick Details

Piling Speed(m/min):: 1-2m/min

Efficiency:: High

After-sales Service Provided:: Video technical support, Online support

Warranty:: 1 Year

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Weight:: 3t

Dimension(L*W*H):: 2600*2200*2900mm

Certification:: ISO9001:2015

Name:: High efficiency highway hydraulic pneumatic pile driver

Diesel power:: 40kw

Pile diameter:: 114-220mm

Pile length:: 2.6-3.3m

Hydraulic system:: 80-110L/Min

Rated system pressure:: 15Mpa

wheel track:: 1620mm

Pile hydraulic hammer weight:: 80kg

Hydraulic hammer frequency:: 500-900Bpm

Drill power unit weight:: 60kg

Supply Ability

Supply Ability:: 100 Set/Sets per Month High efficiency highway hydraulic pneumatic pile driver

Packaging & Delivery

Packaging Details: naked packing for High efficiency highway hydraulic pneumatic pile driver

Port: Qingdao

Lead Time:

Quantity(Sets)	1 - 1	2 - 10	>10
Est. Time(days)	15	30	To be negotiated

Product Description

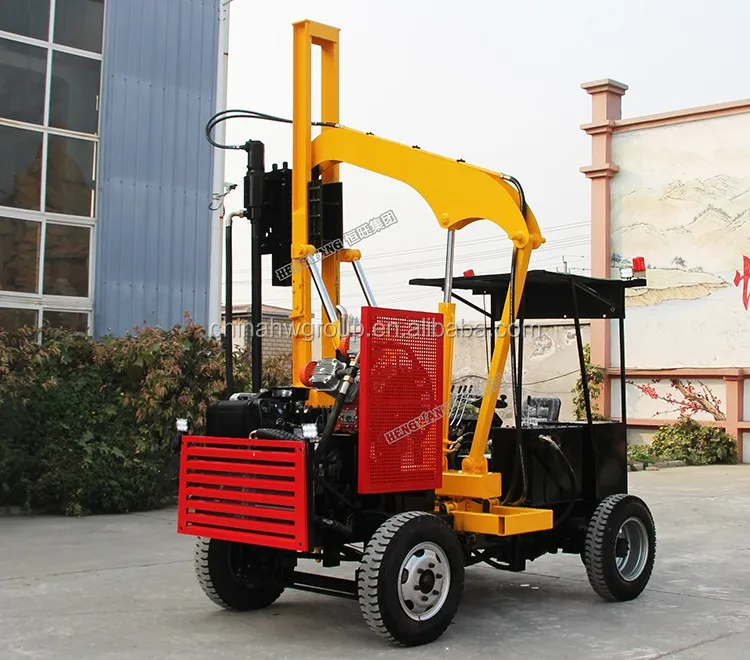

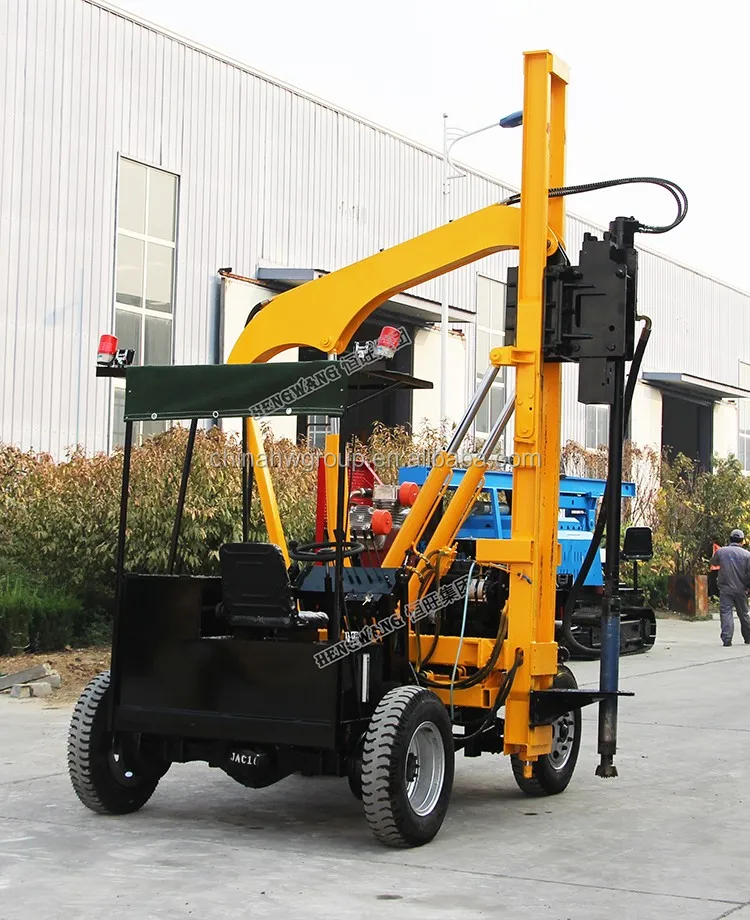

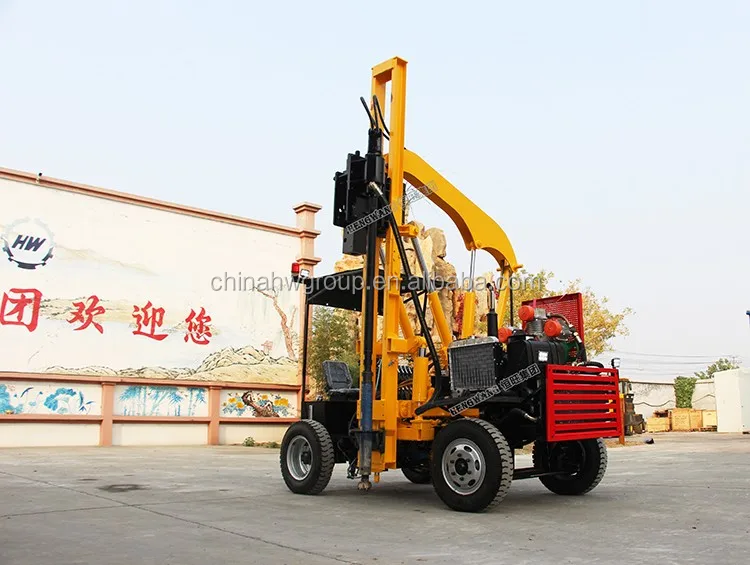

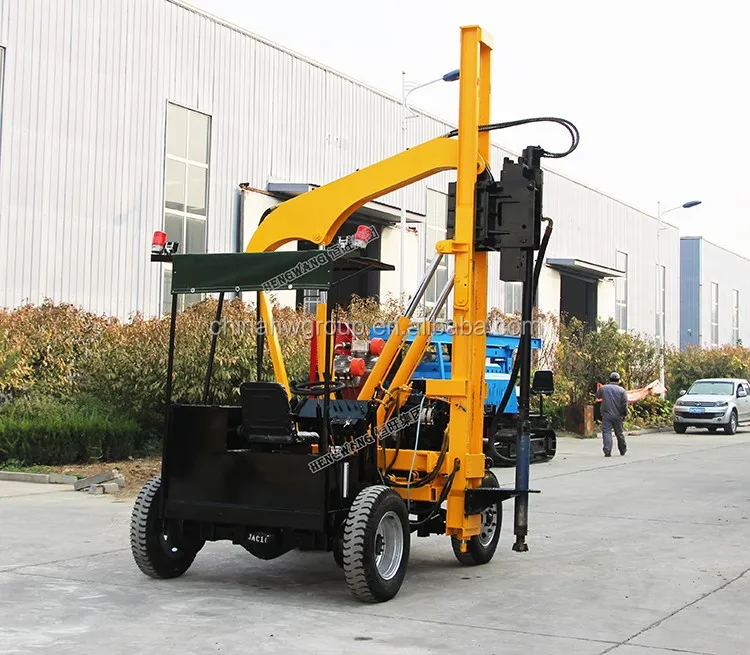

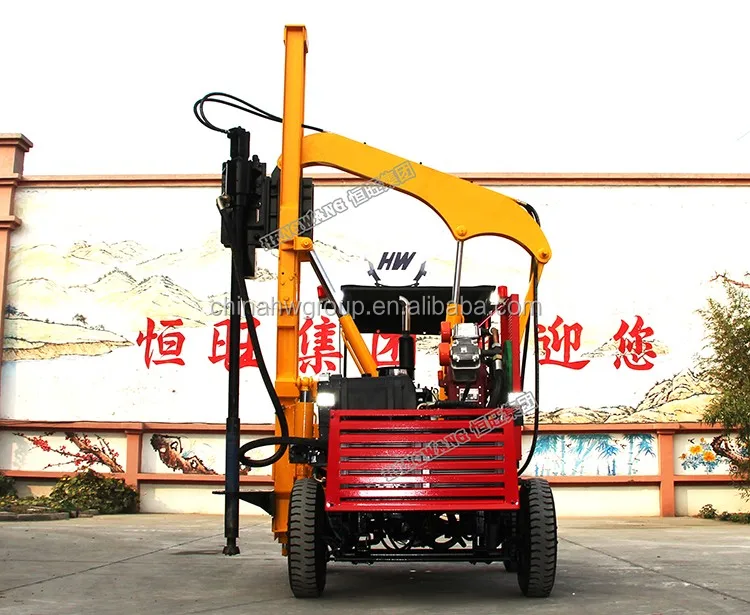

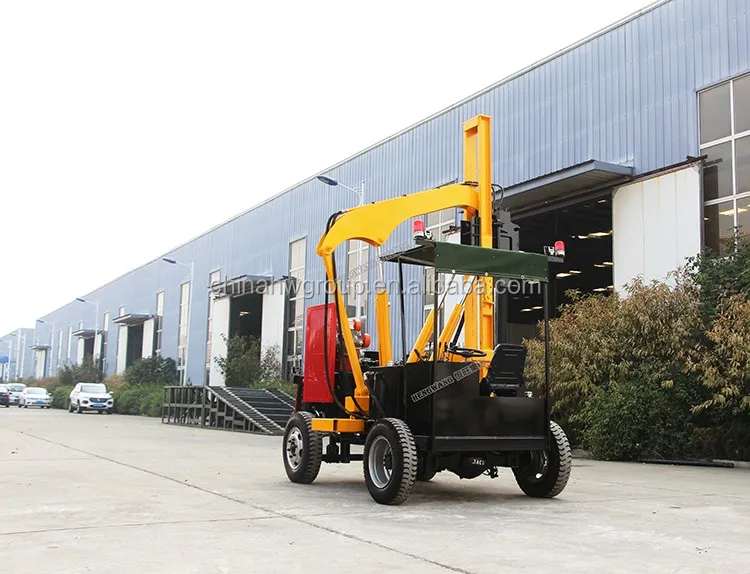

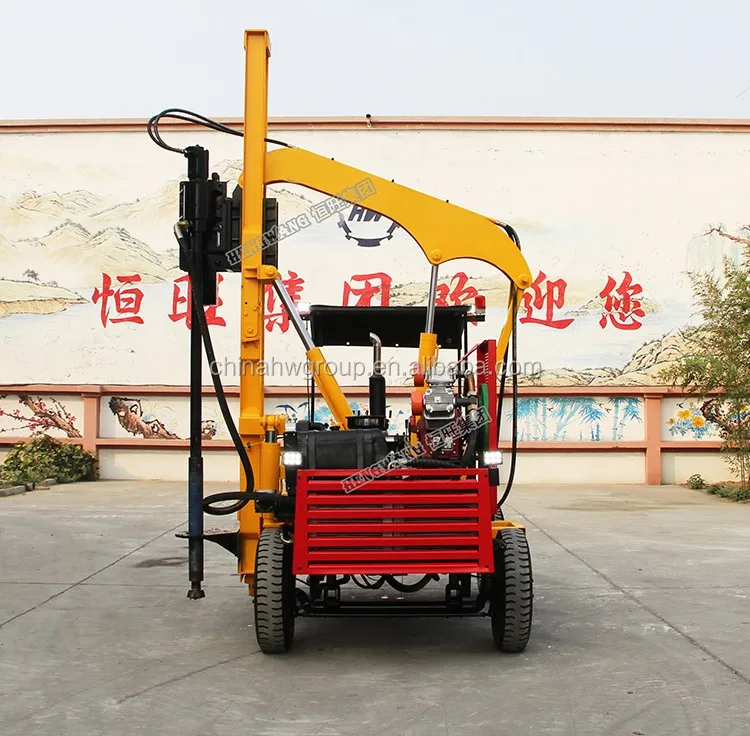

This vibrating highway portable mini pile driver is a new design,it has body with air compressor,and also has roof,working more convenient than before,and you will not worried about the raining and sunshine.It is a kind of construction machinery which can converte hydraulic energy into mechanical energy . It is mainly used in construction of steel pipe piles of highway guardrails. The solar spiral pile is spiraling down into the ground, and the ground is drilled with different drills.

vibrating highway portable mini pile driver is a piling drilling machine widely used in highway, railway, construction, hydropower, port and other construction projects. In recent years, Hengwang has been repairing both inside and outside the production of pile driver, and has obtained structural parts and shifting. A major breakthrough in the quality of the optional parts of the box, the sales of the products continue to rise, and the product technology and product services have moved to the forefront of the industry.

vibrating highway portable mini pile driver
Engine power	33~37KW
Net weight	3000kg
Dimension(LWH)	250018003400mm
pile height	2.8m
Working pressure	16Mpa
Drill diameter	90-200mm
Speed of drill	250mm
Air working pressure	0.7~1.0Mpa
hydraulic hammer frequency	350-780times/min
Flow rate of hydraulic pressure hammer	30~50L/min
Drill depth	1.8m
Impactor frequency	900times/min

Main Features of High efficiency highway hydraulic pneumatic pile driver

1,Vibrating highway portable mini pile driver: with roof

2, Construction geology: highway, railway guardrail pile driver, (body with air compressor can play rock).

3, The standard diameter: standard diameter 114-180mm, the largest aperture 200mm.

4, Configuration air compressor: Recommended 8 cubic air compressor, for the duration requirements, please configure a large air compressor, powerful, fast.

5, The product advantages: four-wheel drive, turbocharged, powerful.

Detailed Images

High efficiency highway hydraulic pneumatic pile driver

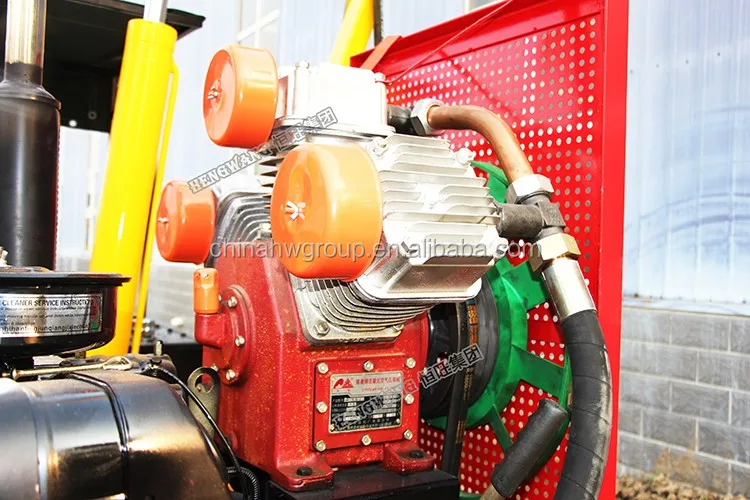

Name: Air compressor
Brand:HW
Original: China

This is piston type air compressor

High efficiency highway hydraulic pneumatic pile driver

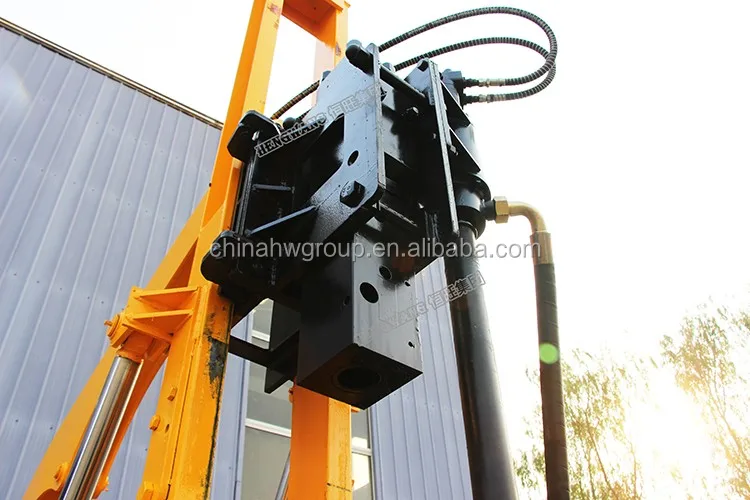

Name: Pile hammer
Brand:HW
Original: China

This is square hammer,we also have round pile hammer and other types,can be customized for customer.

High efficiency highway hydraulic pneumatic pile driver

Name: Hammerhead directional valve for highway guardrail pile driver

Brand:HW

Original: China

Reversing valve is a valve to realize hydraulic oil flow communication, cutting and reversing, as well as pressure unloading and sequence action control, is a direction control valve with two or more flow forms and two or more oil ports.And can be sensitive to control any part of the machine.

High efficiency highway hydraulic pneumatic pile driver

Name: Dashboard for highway guardrail pile driver
Brand: HW
Original: China
You can clearly know the oil level, electric quantity and water temperature

High efficiency highway hydraulic pneumatic pile driver

Name: Hydraulic oil tank
Brand: HW
Original: China
The hydraulic oil level shall ensure the normal test demand when the equipment leaves the factory, and the hydraulic oil shall be added by itself when working normally.
