Home > Products > Photovoltaic hydraulic press portable crawler pile driver

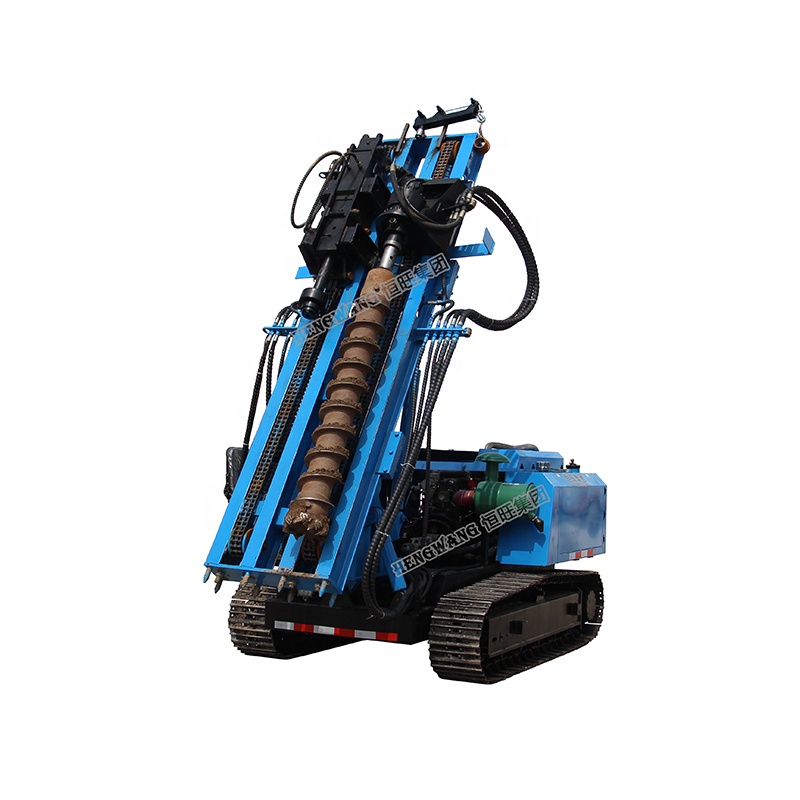

Photovoltaic hydraulic press portable crawler pile driver
Click on the image to view the original image
Product： views：5Photovoltaic hydraulic press portable crawler pile driver
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:53
  Negotiated
Product Details
Overview
Quick Details
Piling Speed(m/min):
3m
Efficiency:
120kw, High
After-sales Service Provided:
Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service, Engineers available to service machinery overseas
Warranty:
1 Year
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Weight:
3.5ton
Dimension(L*W*H):
4100*2000*2200mm
Certification:
ISO9001
Pile length:
4-6m
wheel track:
1620mm
Hydraulic system:
230L/Min
Pile diameter:
114-220mm
Pile hydraulic hammer weight:
230kg
Rated system pressure:
20Mpa
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
naked packing for road construction highway guardrail hydraulic small pile driver
Port
Qingdao, Shanghai, Tianjin, Dalian,
Lead Time:
Quantity(Sets)1 - 20 >20
Est. Time(days)10To be negotiated
Video Description
Product Description

Multifunction full hydraulic solar pile driver Introductions



1. Multifunction full hydraulic solar pile driver , using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2. The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3. The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Engine power
80kw
Working pressure
20MPA
No. of cylinders
4pcs
Rubber track weight
5T
Engine brand
Weicai engine
Total displacement
1860
Working pressure
16-20MPA
Total bearing weight
5000KGS
Working flow
120L/Min
Walking speed
0-3kw/h
Wheel distance
2M
Ground connection beta ratio
0.036
Machine size
4100×2000×2200mm
Pulling capacity
4300KGS
Machine weight
3.5T
Clambing ability
≤ 30
Drill rod diameters
70mm
Drill rod weight
19KGS
Hydraulic hammer weight
230KGS
Working flow
40-70L/Min
Working pressure
110-140bar
Impacting frequency
500-900bpm
Pile height
4500mm

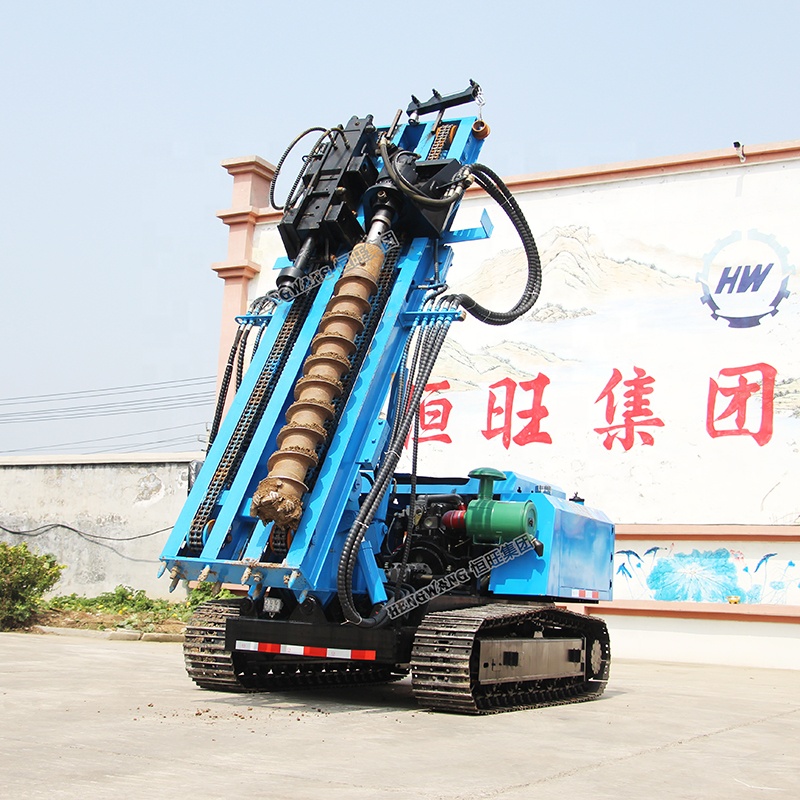

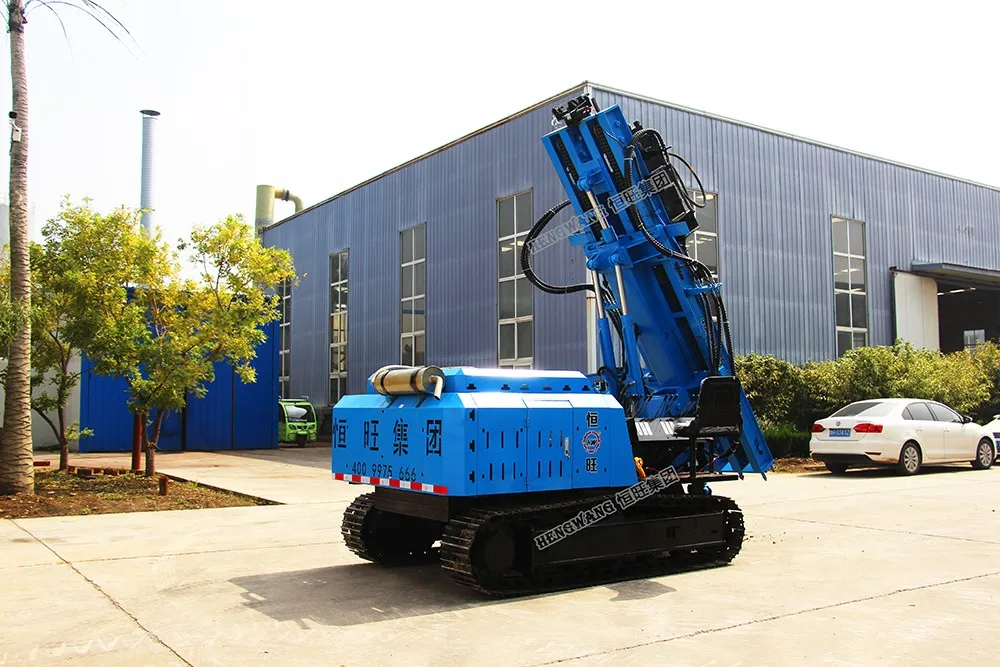

Multifunction full hydraulic solar pile driver

Pile driving speed,the average 2 minutes can realize piling 6 meters deep,namely a hole 3 minutes to play.Oil province,is a common driver uses around half of a year can be a driver left money for you.

Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.Crawler walking,high walking and climbing abilityThe frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

360 degree hydraulic rotation, pile travel is 6m, the highest domestic military hydraulic system configuration, imported gas,oil dual use power head, 8 tons of chassis. Can configured with a set of piling function, a set of drilling function.

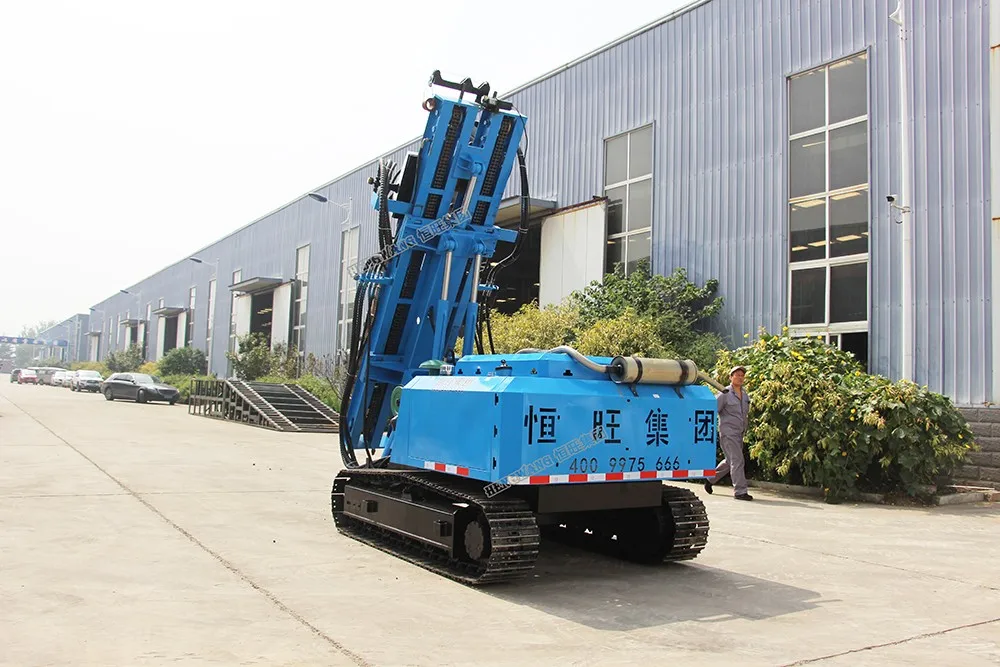

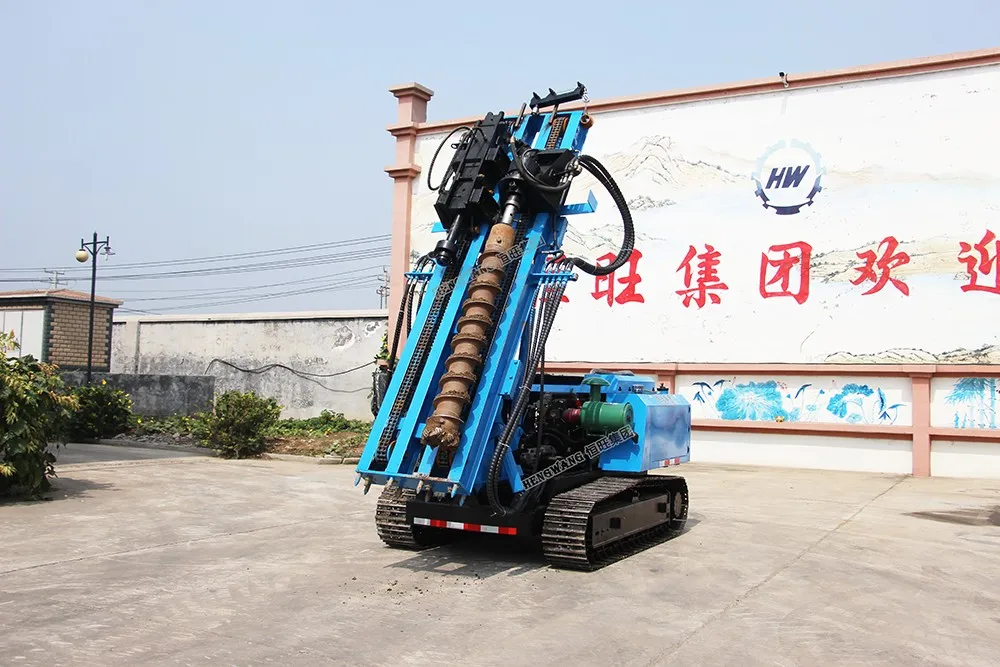

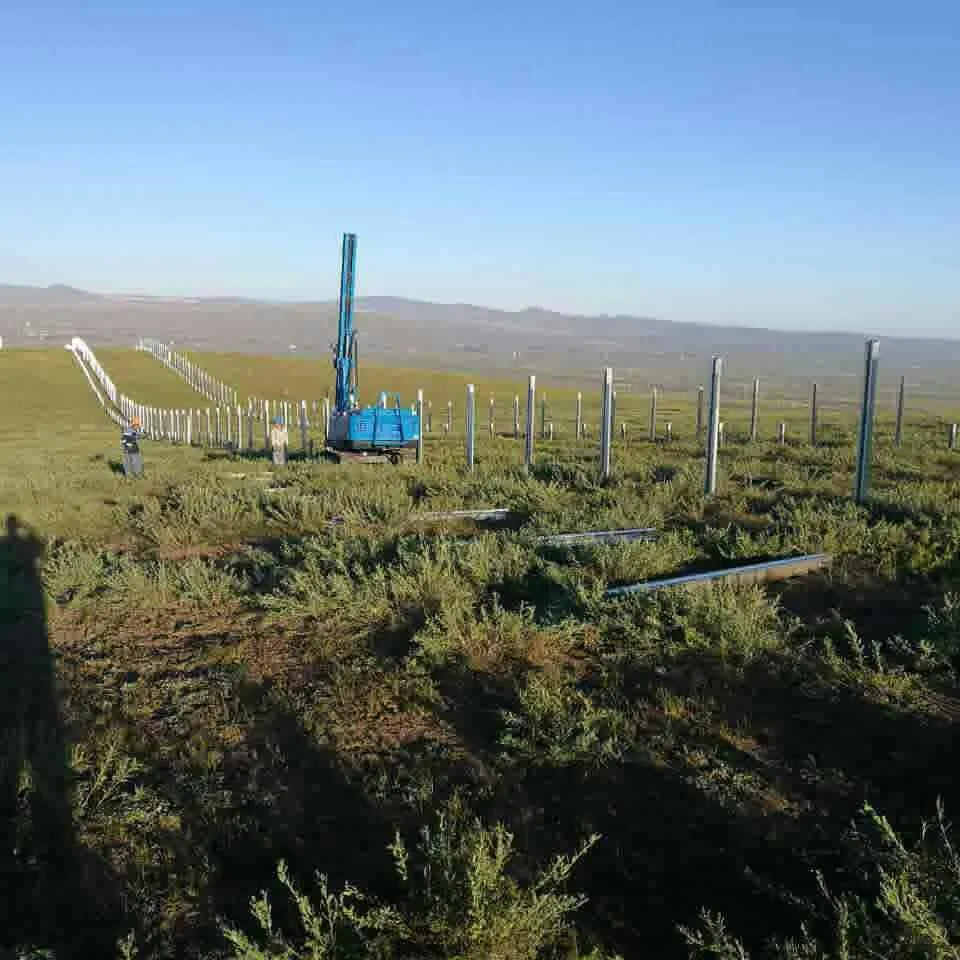

Multifunction full hydraulic solar pile driver working pictures
Certifications

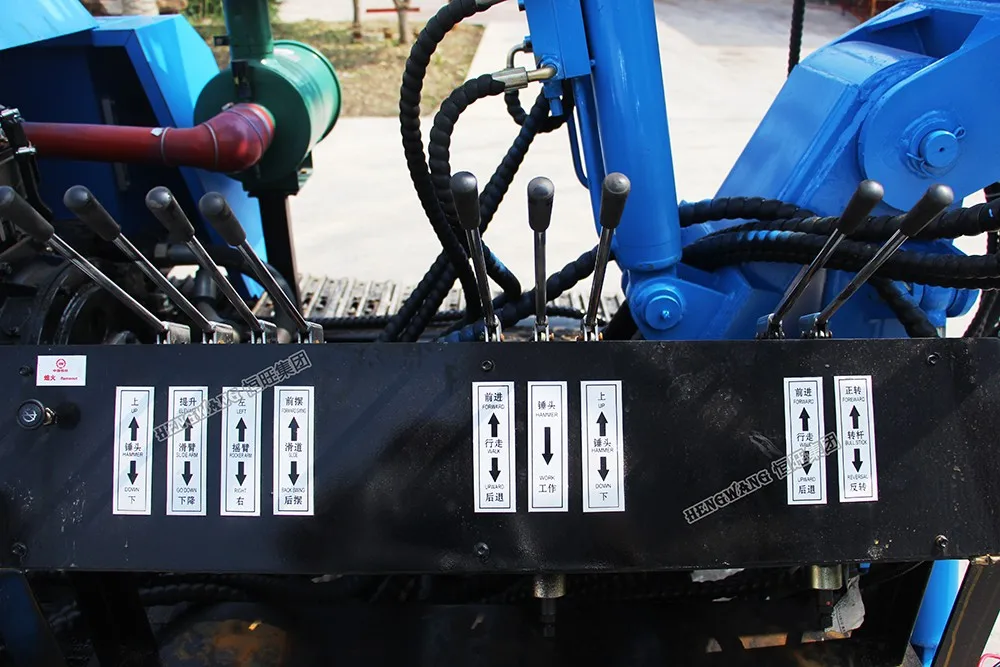

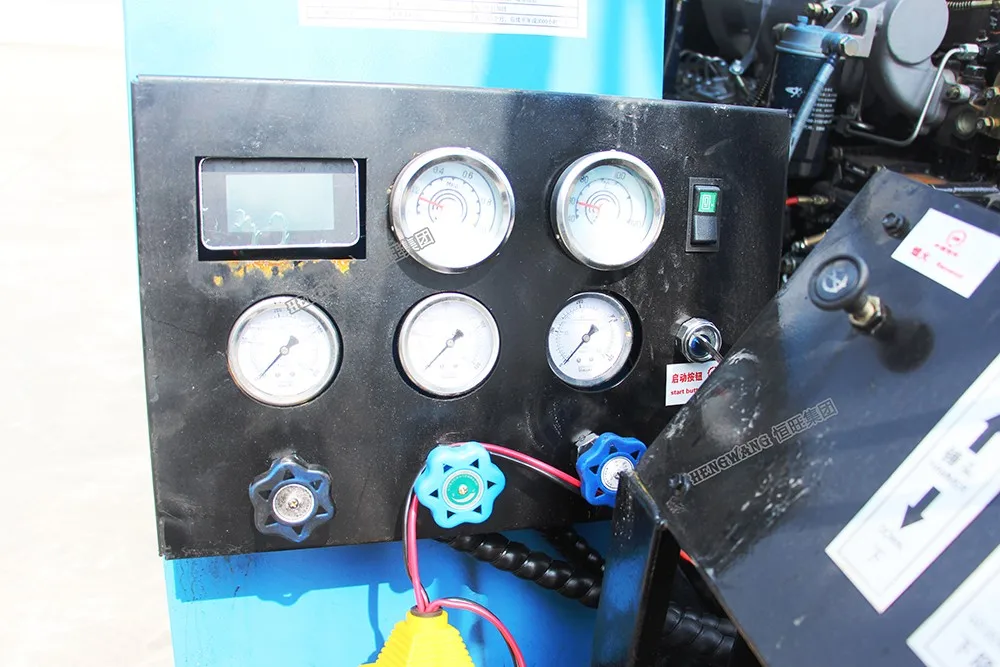

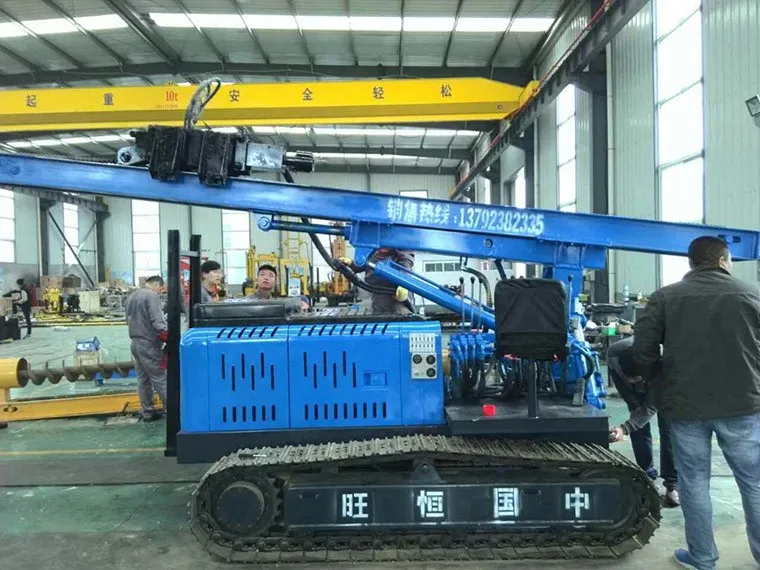

Detailed Images

Machine Parts

Machine Parts

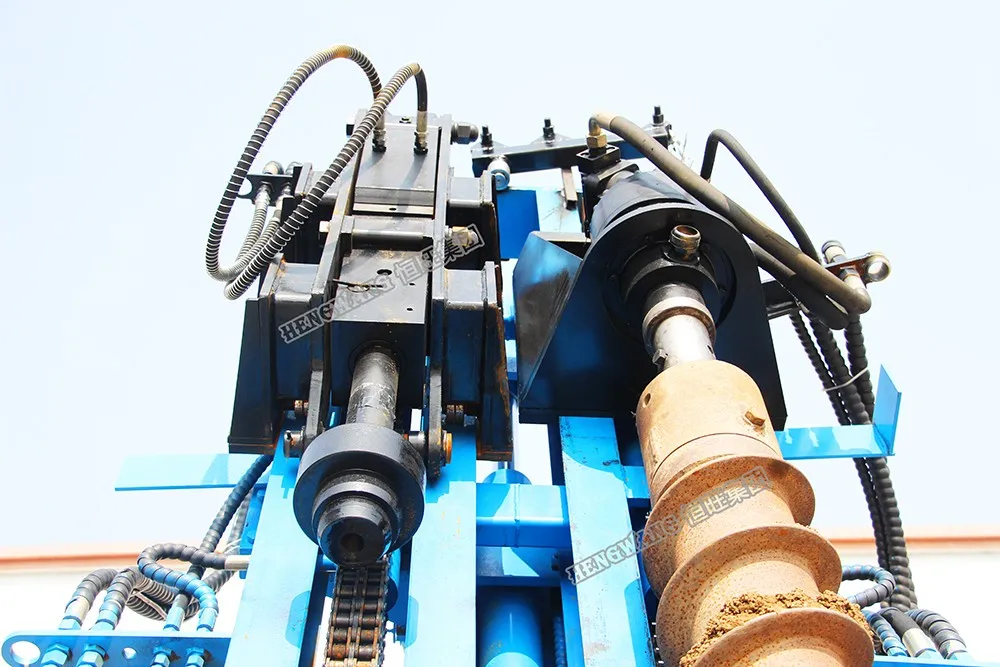

Name: Hammer pile driver
Brand: HWZG
Original: China

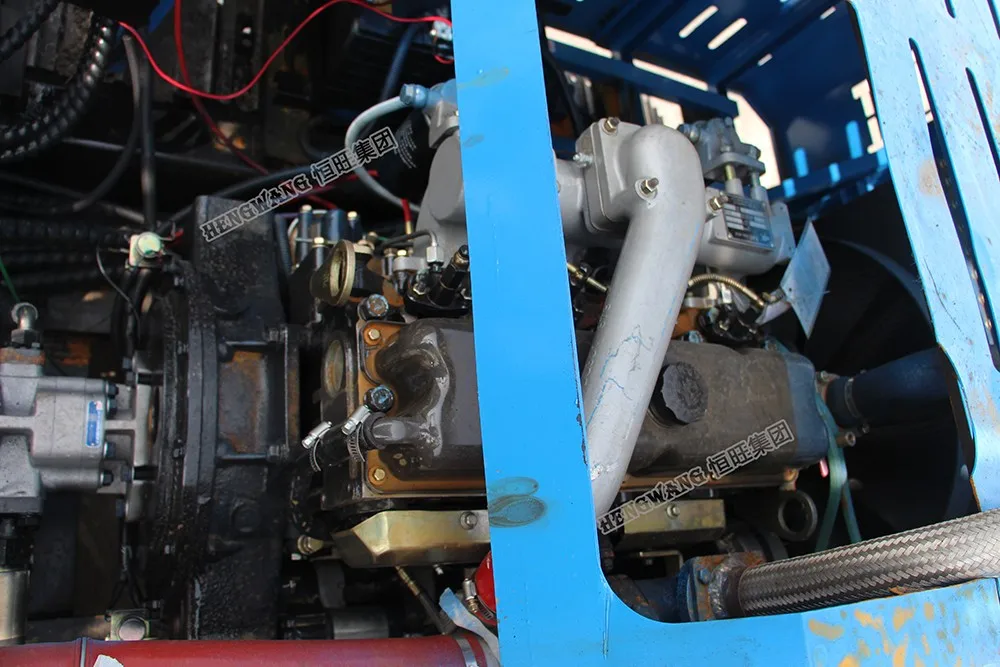

Weichai engines, strong driving force, low fuel consumption, high economic

Main Features

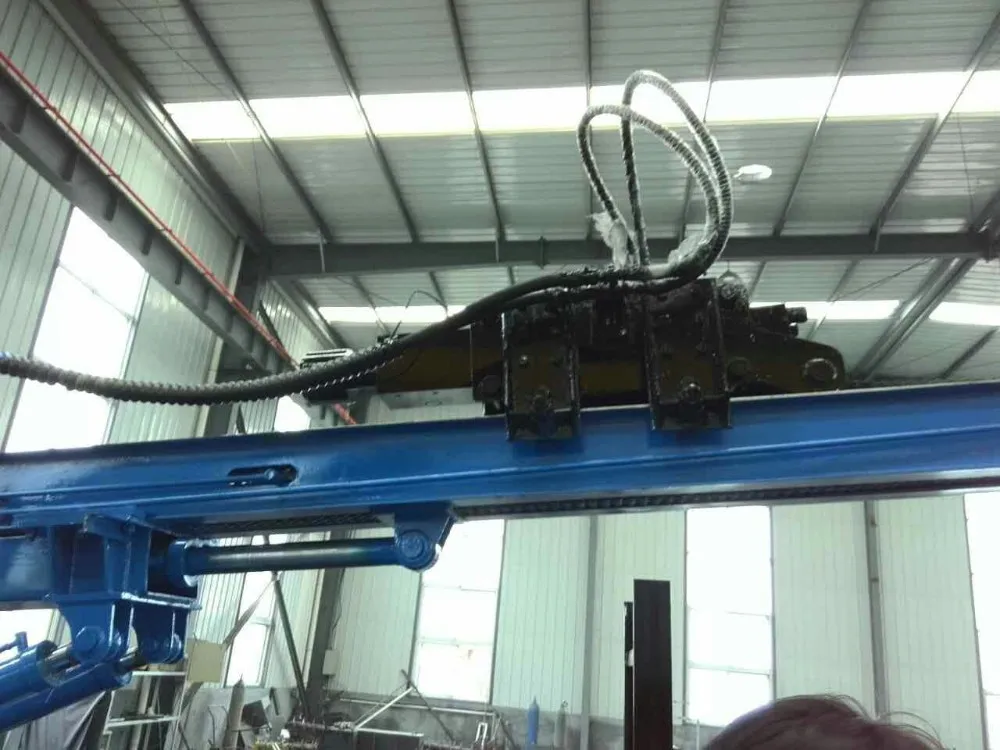

Name: Square hydraulic hammer
Brand: HWZG
Original: China
this hammer used for pressing the pile into the soil

Machine Parts

Name: Round hydraulic hammer
Brand: HWZG
Original: China
Function 1:this hammer can drill the hard rock with air compressor.
Function 2:this hammer can drill the soil with the screw pipe.

Main Features

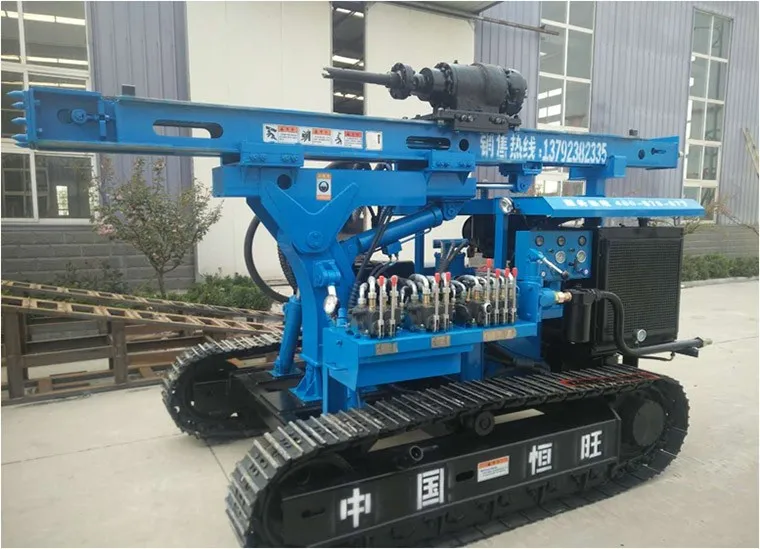

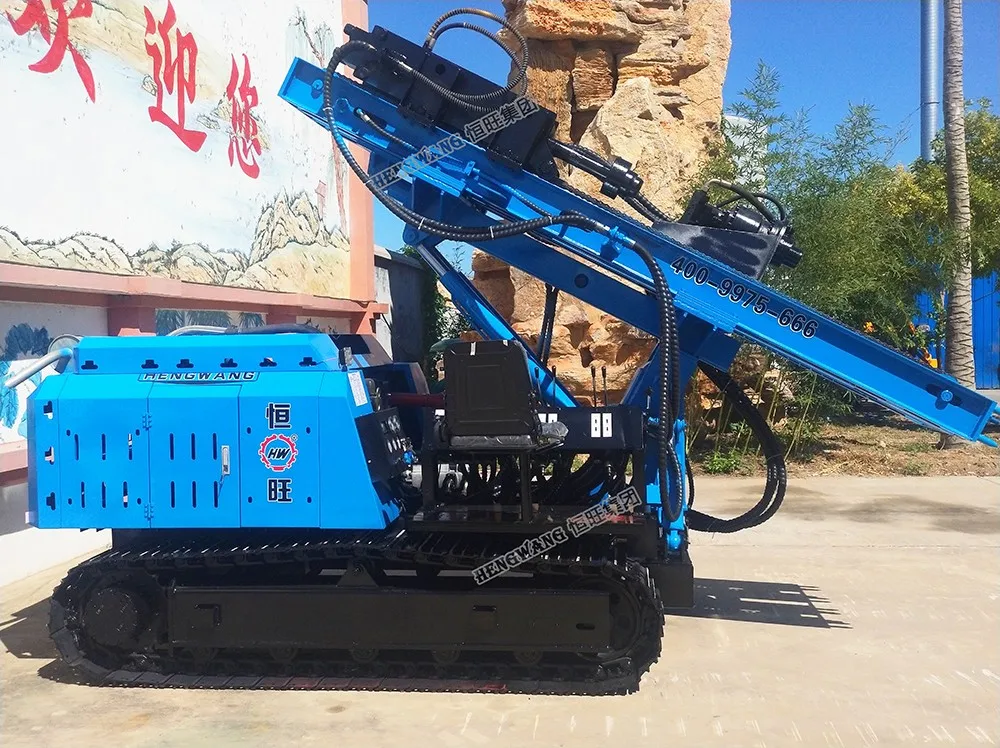

Name:Multifunction pile driver

Brand: HWZG

Original: China

this is the multifunction pile driver,we can change the different hammer to do the different works.it can press the pile,can drill the soil,also can drill the rock.
