diesel engine powered underground tunnel muck loader

Click on the image to view the original image

Product：	views：5diesel engine powered underground tunnel muck loader
Branch：	HW
Size：	4300X1500X1500 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:53

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Condition:: New

After-sales Service Provided:: Overseas service center available

Product name:: diesel engine powered underground tunnel muck loader

Color:: Blue

Engine:: electric or diesel

loading capacity:: ≥50

Mining width:: 2400 mm

loading width:: ≥2400mm

Digging height:: 1600mm

Power:: 15kw

Bucket capacity:: 60t/h

Traveling speed:: 3-6km/h

Packaging & Delivery

Selling Units:: Single item

Single package size:: 4300X1500X1500 cm

Single gross weight:: 4000.0 kg

Package Type:: Wooden case for diesel engine powered underground tunnel muck loader

Picture Example:

Lead Time:

Quantity(Set)	1 - 5	>5
Est. Time(days)	15	To be negotiated

Product Description

diesel engine powered underground tunnel muck loader

Mucking loader, also known as excavating loader, is a mechanical hand and conveyor joint, slag removal and conveying and loading functions into one, the use of electric full hydraulic control system and production equipment, with safety and environmental protection, low energy consumption, high efficiency characteristics.

Mucking loader is an indispensable advanced mining equipment for mining enterprises. Instead of manual operation, it can scrape all kinds of slag and stone materials after blasting onto transport vehicles. It is a substitute product of manual and other machinery, filling the blank of no mechanical operation in a narrow space.

Mining multi-functional mucking loader is a new type of loader developed to improve labor intensity and work efficiency. It can directly convey ore to conveyor belt. The machine adopts full hydraulic first-come control, and the operation is simple and convenient. The gantry frame of the machine can be disassembled without cutting, so it is convenient to go down well and install. In addition, the rear unloading height can be adjusted according to the customer"s own needs.

Specification for diesel engine powered underground tunnel muck loader
Contents	Unit	Parameter
Contents	Unit	ZWY-50	ZWY-60	ZWY-70	ZWY-80	ZWY-100
External dimension	mm	430015001500	430015001500	560017001700	6000*17001770	640017301650
wheel base		1300	1500	1500	1700	1700
Wheel tread		1600	1600	1700	1750	1750
Maximum material go through size		600*600	600*600	600*600	800*600	800*600
minimum distance from the ground		180	180	180	160	190
Total weight	T	4	4	4	5	5
Maximum lifting height	mm	1350	1350	2100	2100	2100
Maximum loading height		1200	1200	1500	1600	1500
Suitable height of charging carriage		1500	1500	1700-2100	1750-2500	1700-2100
Maximum extension of scraper bucket		1440	1440	1300	1800	1740
Maximum lift height		2150	2150	1900	2800	1600
Power	kw	15	15	15	19	19
Working arm maximum turning angle	(º)	73	73	73	73	73
Traveling speed	Km/h	3/6	3/6	3/6	3/6	2.5/1.4
Maximum digging ability	KN	11.1	11.1	11.1	11.1	11.1
Loading capacity	T/h	60	60	70	80	100
Distance from cockpit to ground	mm	1700	1700	1700	1800	1800
Maximum belt slope	(º)	22	22	24	24	24
Adaptive tunnel dimension	m	1.5*1.8	1.5*1.8	1.8*2.2	2.6*2.6	3*3

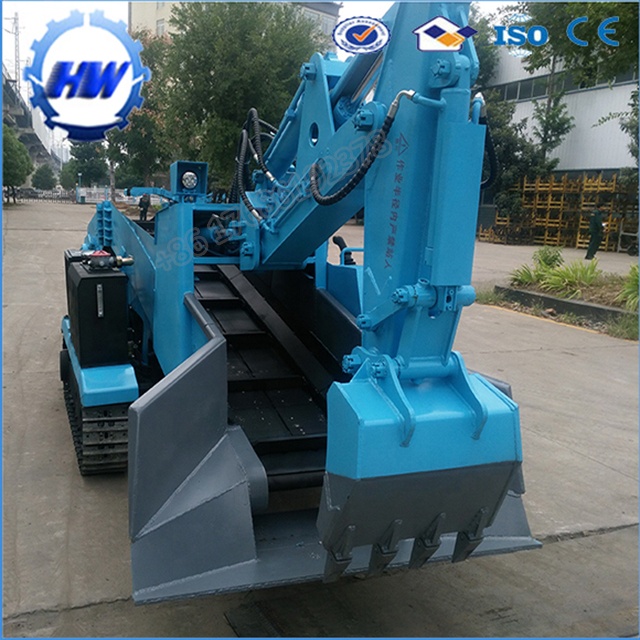

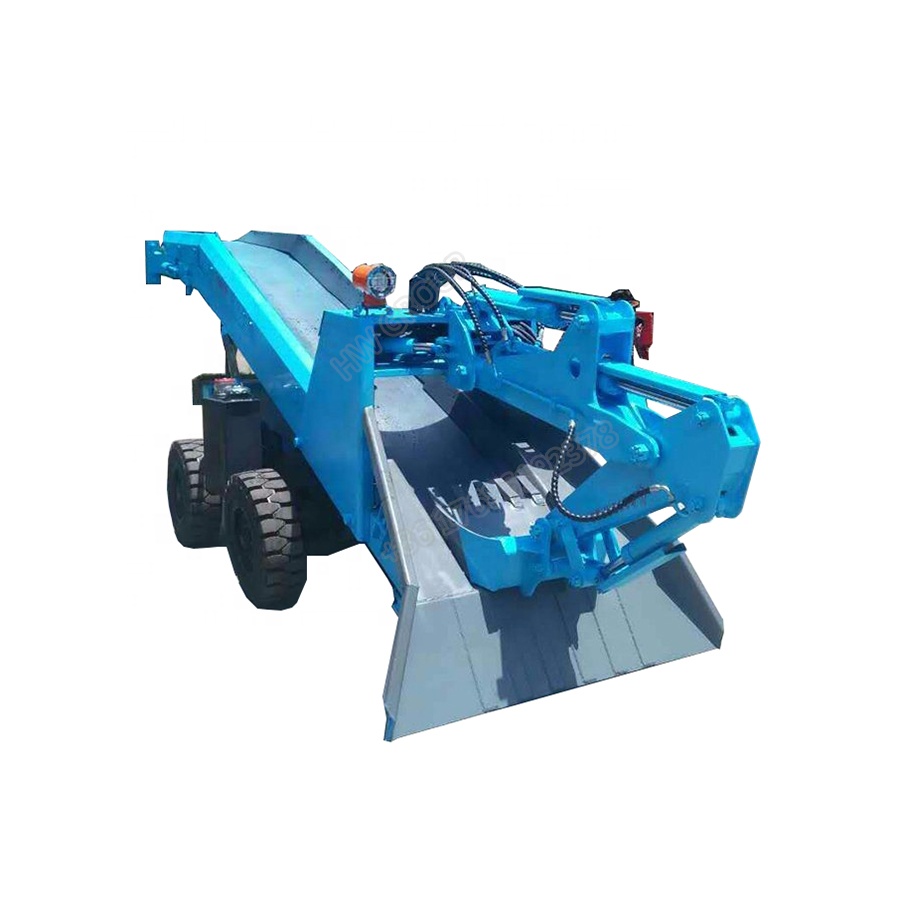

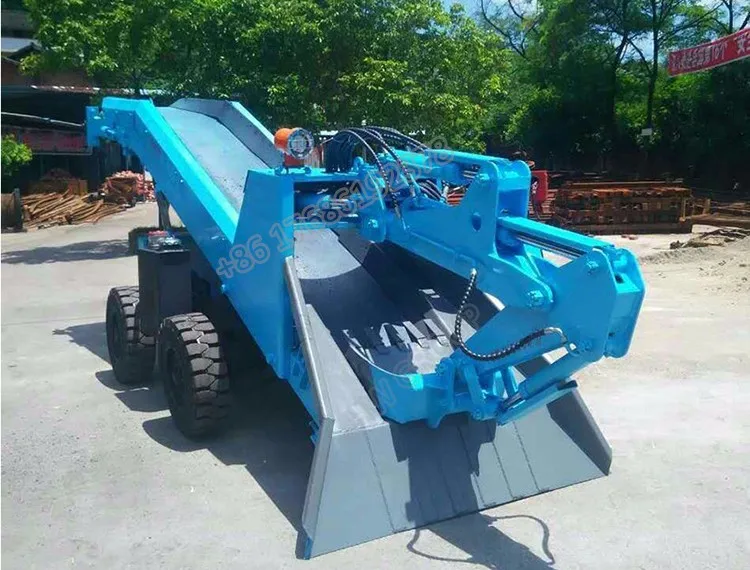

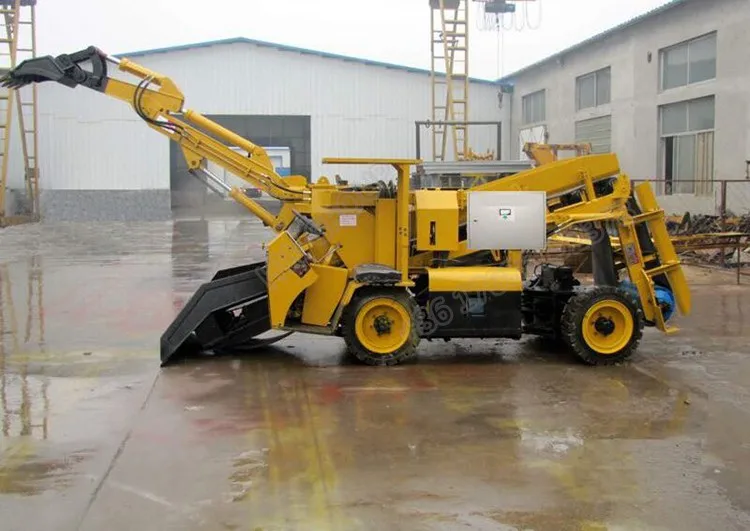

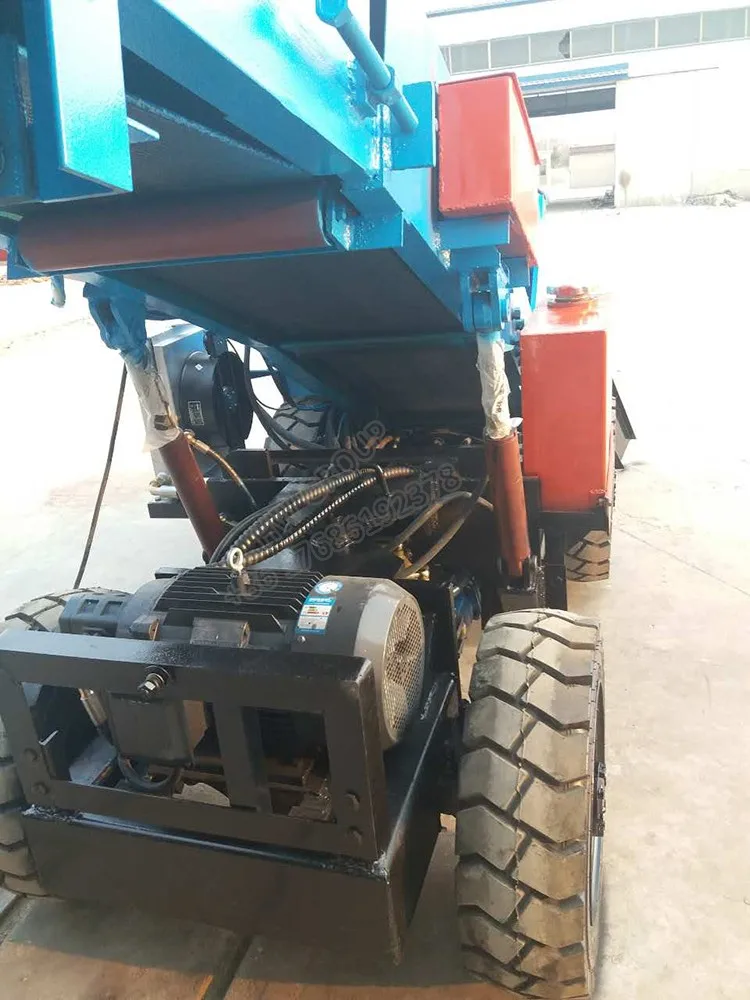

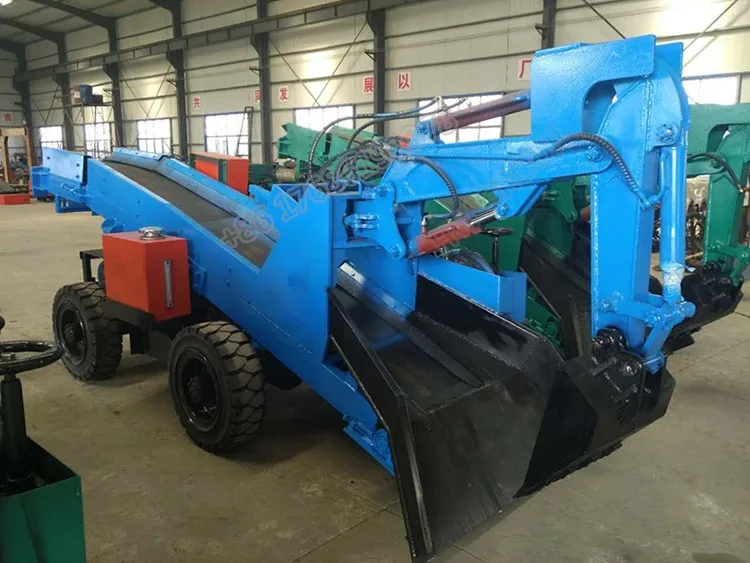

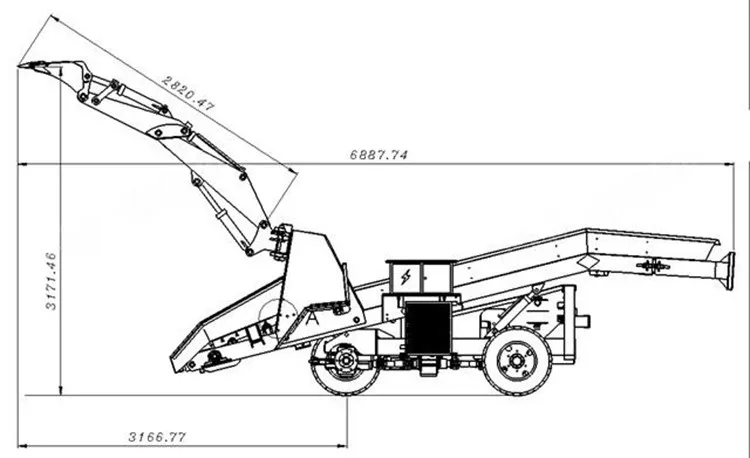

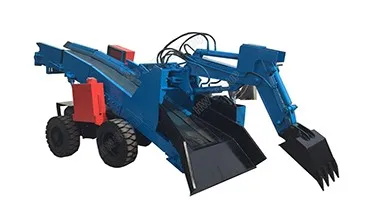

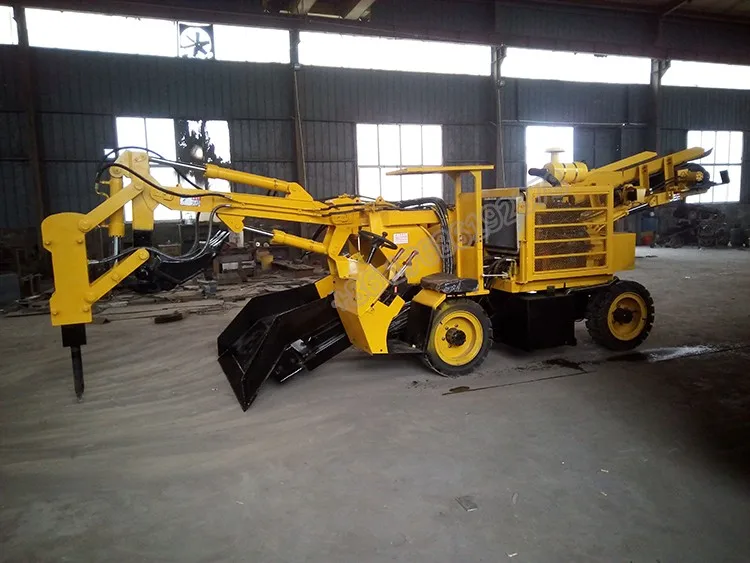

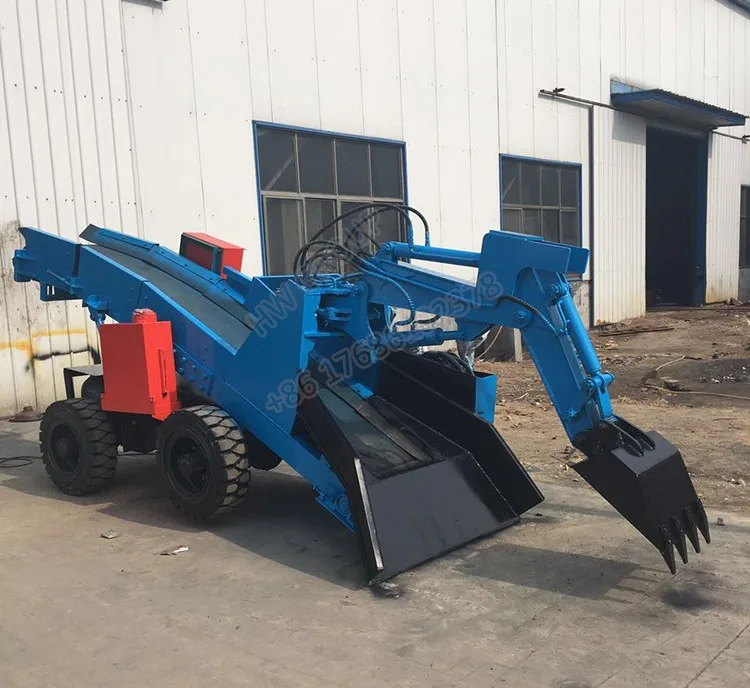

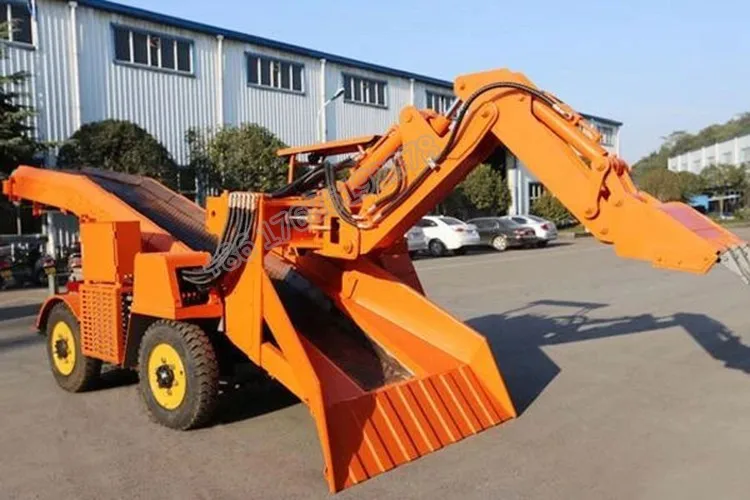

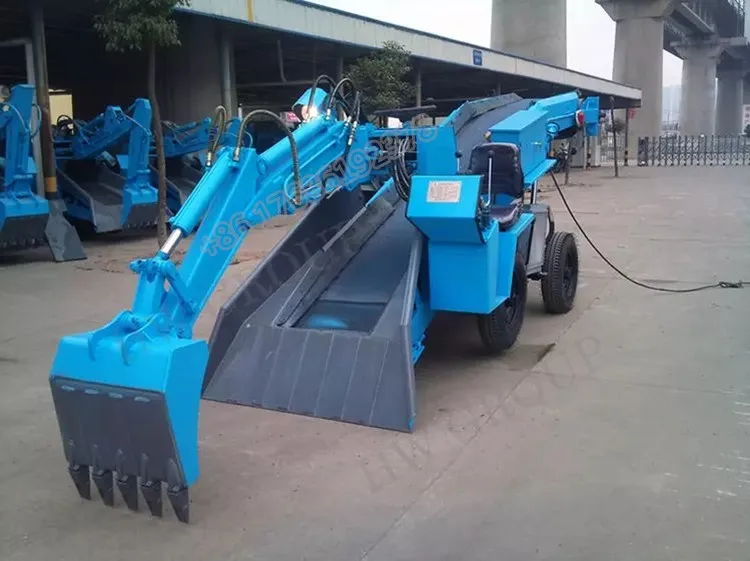

Detailed Images
