Home > Products > 2 cubic meters concrete mixer truck prices
2 cubic meters concrete mixer truck prices
Click on the image to view the original image
Product： views：42 cubic meters concrete mixer truck prices
Branch： HW
Size： 30X50X20 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:55
  Negotiated
Product Details
Overview
Quick Details
Charging Capacity:
600L
Reclaiming capacity:
750L
Mixing Power:
78KW/2400r/min
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, No after-sales service
Applicable Industries:
Farms, Restaurant, Home Use, Retail, Construction works
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Motor Power:
2.2kw
Speed of Mixing Drum:
10-20r/min
Water Supply Mode:
Automatic
Working Cycle Period:
30s-40s
Discharge Way:
Auto Hydraulic
Outline Dimension:
6100*1850*3000
UNIQUE SELLING POINT:
High load Moment
Charging capacity:
2.4m3
Discharge Way::
anticlockwise
Pump Model:
CBGV-4025
max.travelling speed:
24kw/h
max.torque:
380/1500-1800N.m/r/min
Slump of concrete:
70-260mm
water tank capacity:
540L
Motor Model:
BM5-400
Reduction gear ratio:
1:34

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X50X20 cm
Single gross weight:
68.0 kg
Package Type:
Standard export package or as your requirement for concrete mixer truck
Lead Time:
Quantity(Set)1 - 50>50
Est. Time(days)7To be negotiated
Product Description

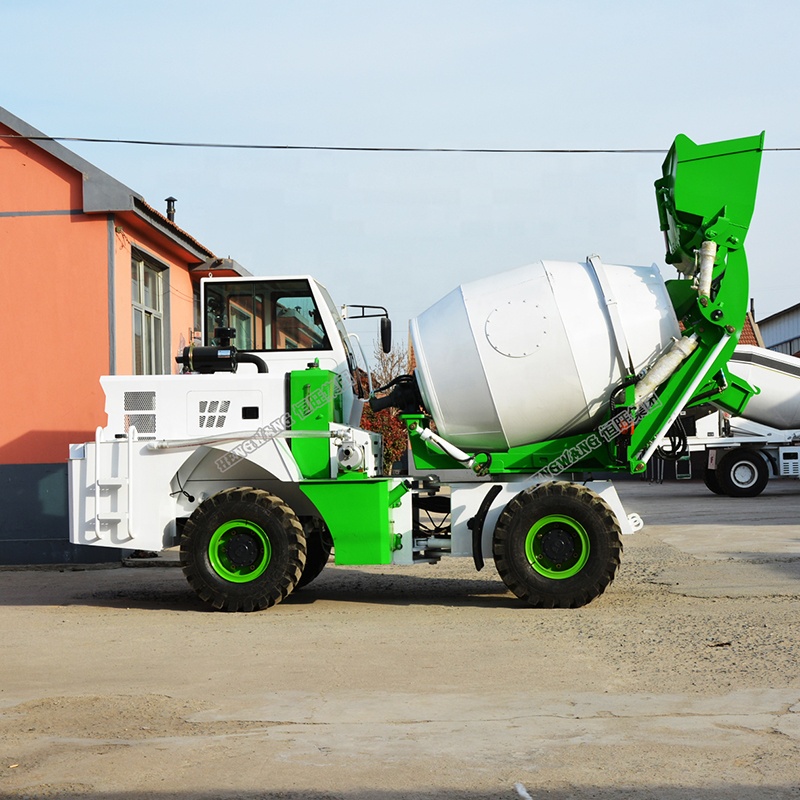

Concrete Mixer truck2 cubic meters concrete mixer truck prices

2.4m3 cheap price of larger mixer machine self loading concrete mixer is combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.

SPECIFICATIONS FOR CONCRETE MIXER TRUCK
Actual mixing volume
2.4m3
Drove type
4X4
Geometrical capacity
2.3m3
Operating weight
5550kg
Angle of inclination
16o
Max.loading weight
5600kg
Rotaring speed
10-20 r/min
Max.total weight
11150kg
Mixing drum blade
Two sets of spiral blades.and
Overall dimensions
6350*2510*2850mm
Slump of concrete
70-260mm
Gradeability
26%
Pump Model

CBGV-4025
Tire
16/70-20
Motor Model
BM5-400
Minimum turning radius
4500mm
Reduction gear ratio
01:24
Rated power
55KW/2400 78KW/2400KW/min

Main Features

1.Italy Leading design, Automatic feeding mixing system.

2.Simple and convenient operation.

3.High efficiency output,Save time and labor, Save cost.

4.The perfect combination of mixing truck and loading car.

5.180 degrees with rotary stirring tank, Two-way unloading.
