Stainless Steel Electrical Boat Mooring Anchor Capstan Winch
| Model | Net Weight (kg) | Power Supply | Motor | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Hz | Lift Working Load (kg) |
| capstan-005 | 24 | 380V | 2200W | 710 | 710 | 25m/min | 20-25mm | 3PH/50HZ | 320 |
| capstan-006 | 74 | 3000W | 990 | 990 | 20m/min | 24-28mm | 480 | ||
| capstan-007 | 92 | 4000W | 1560 | 1560 | 26-30mm | 690 | |||
| capstan-008 | 146 | 5500W | 2340 | 2340 | 28-34mm | 1010 |
Features:
1. Polished stainless steel finish.
2. Fluted capstan for line grip.
3. Reversible motor.
4. Easily disassembled for servicing: disassemble from top and bottom.
5. Large capstan drums for increased line hold.
6. Gearbox is driven by a vertically mounted below deck.

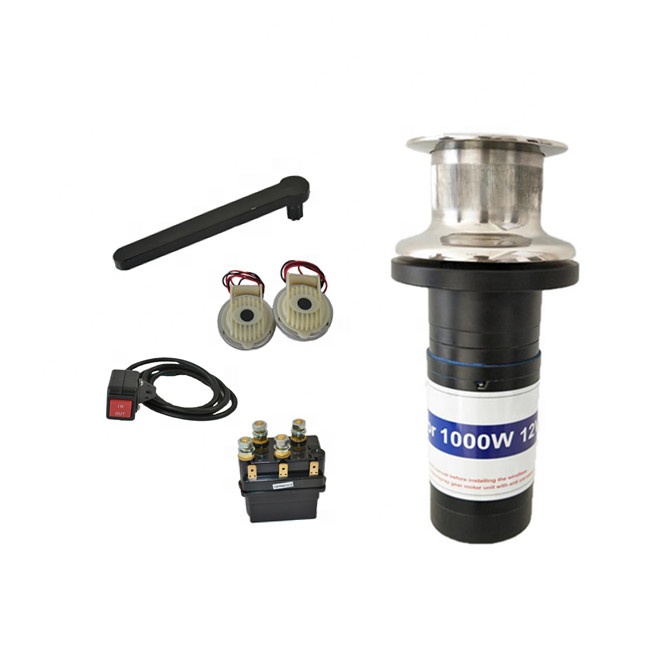

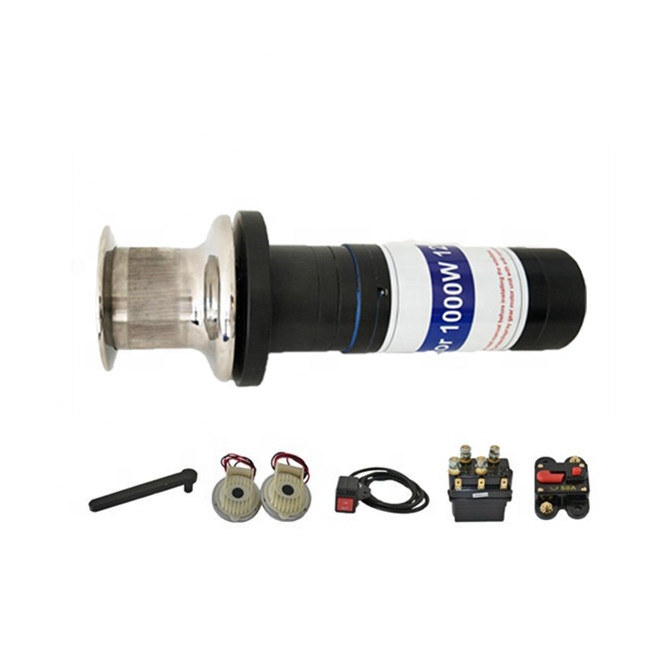

7. Fit include hand-switch, foot-switch, relay and solenoid.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
