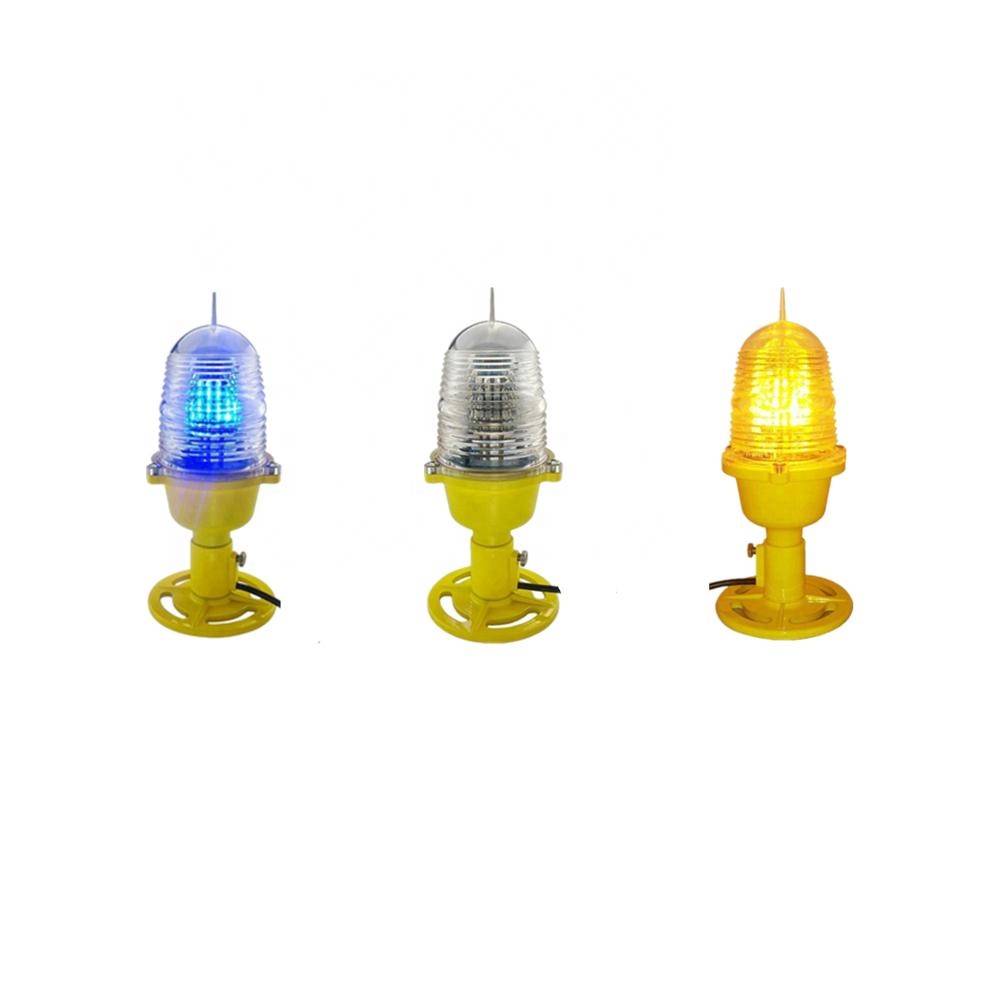

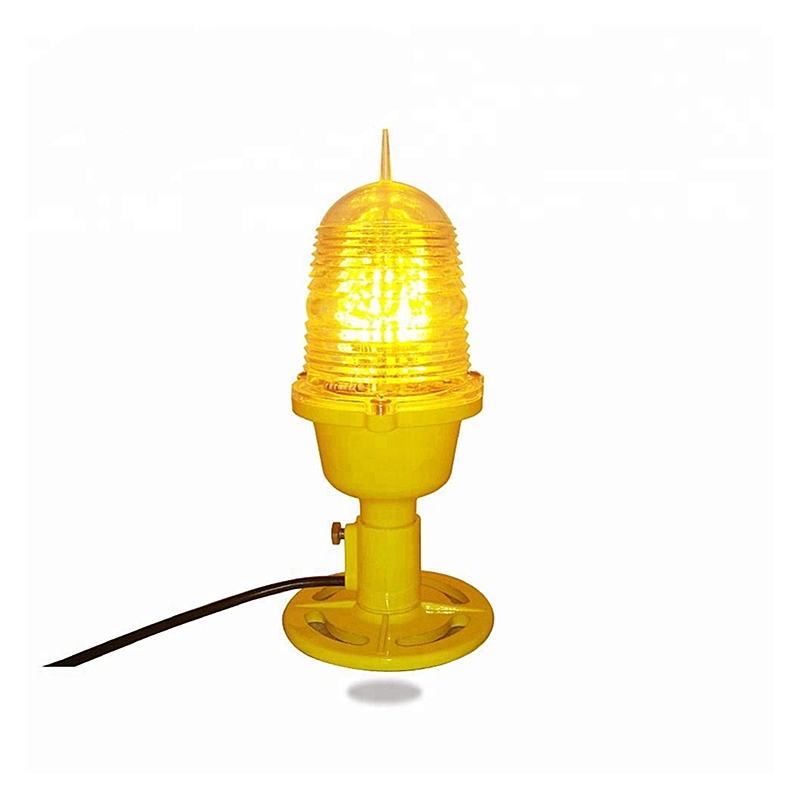

Airport elevated perimeter light
Perimeter lights shall be placed along the edges of the Helipad Final approach and take-off area. It emit white or green or yellow steady burning light.
| SPECIFICATIONS | JV-HP-E Heliport Perimeter Elevated Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Green, Yellow, White, Red |
| Intensity(cd) | ≥25cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12-48VDC) or AC(110-240VAC) |
| Power(W) | 10 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 93×93×12 |
| Dimension(mm) | 136×136×250 |
| Weight(kg) | 1.4 |
| Base | Frangible coupling |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Ambient Temperature(℃) | -55℃~+70℃ |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume| Heliports 5.3.6 |
| Options Available | Powder-coated color |
| Infrared LED compatible for NVG (Night | |
| Vision Goggles) | |
| Marine Treated | |
| Power coated color |
