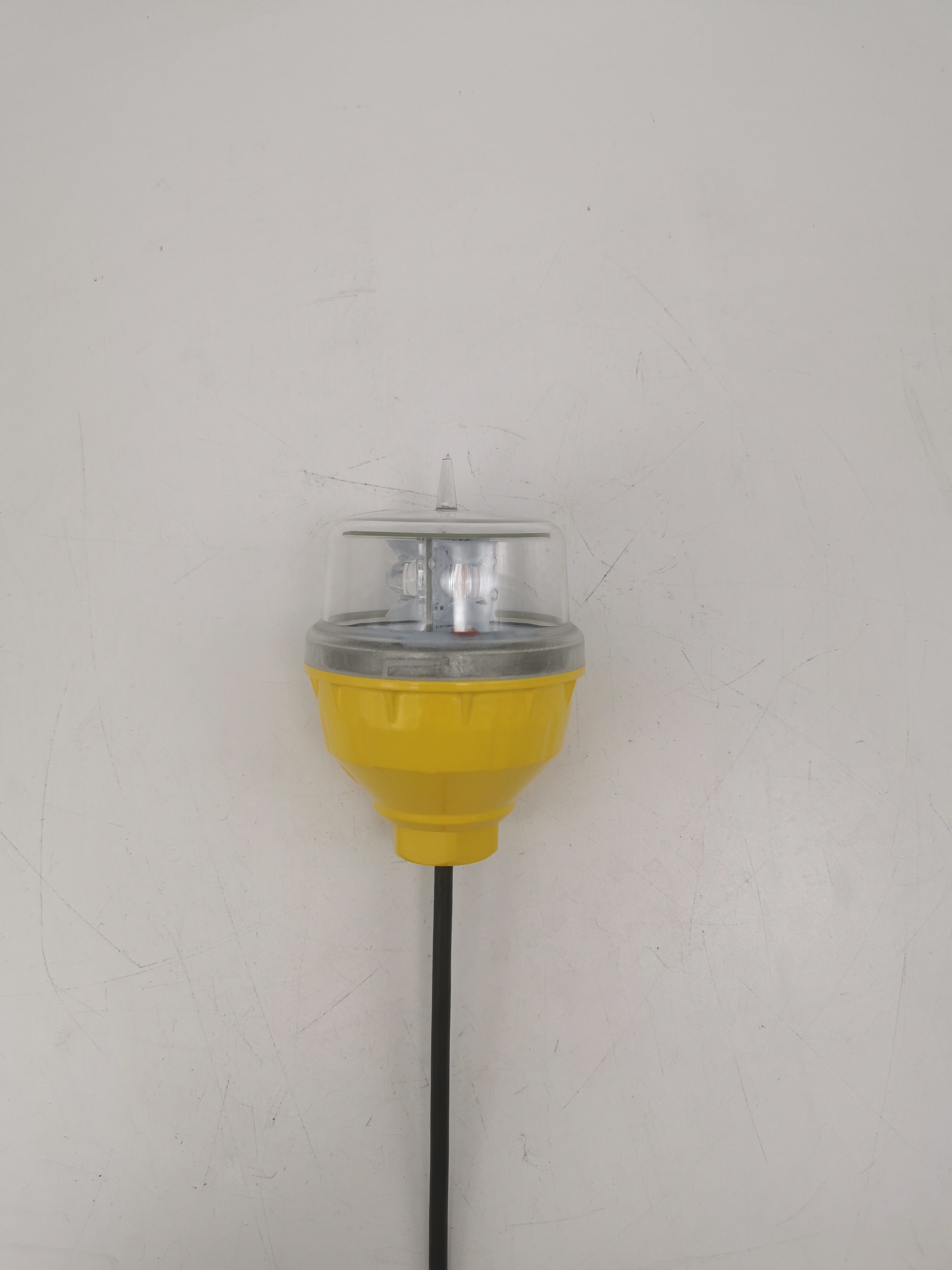

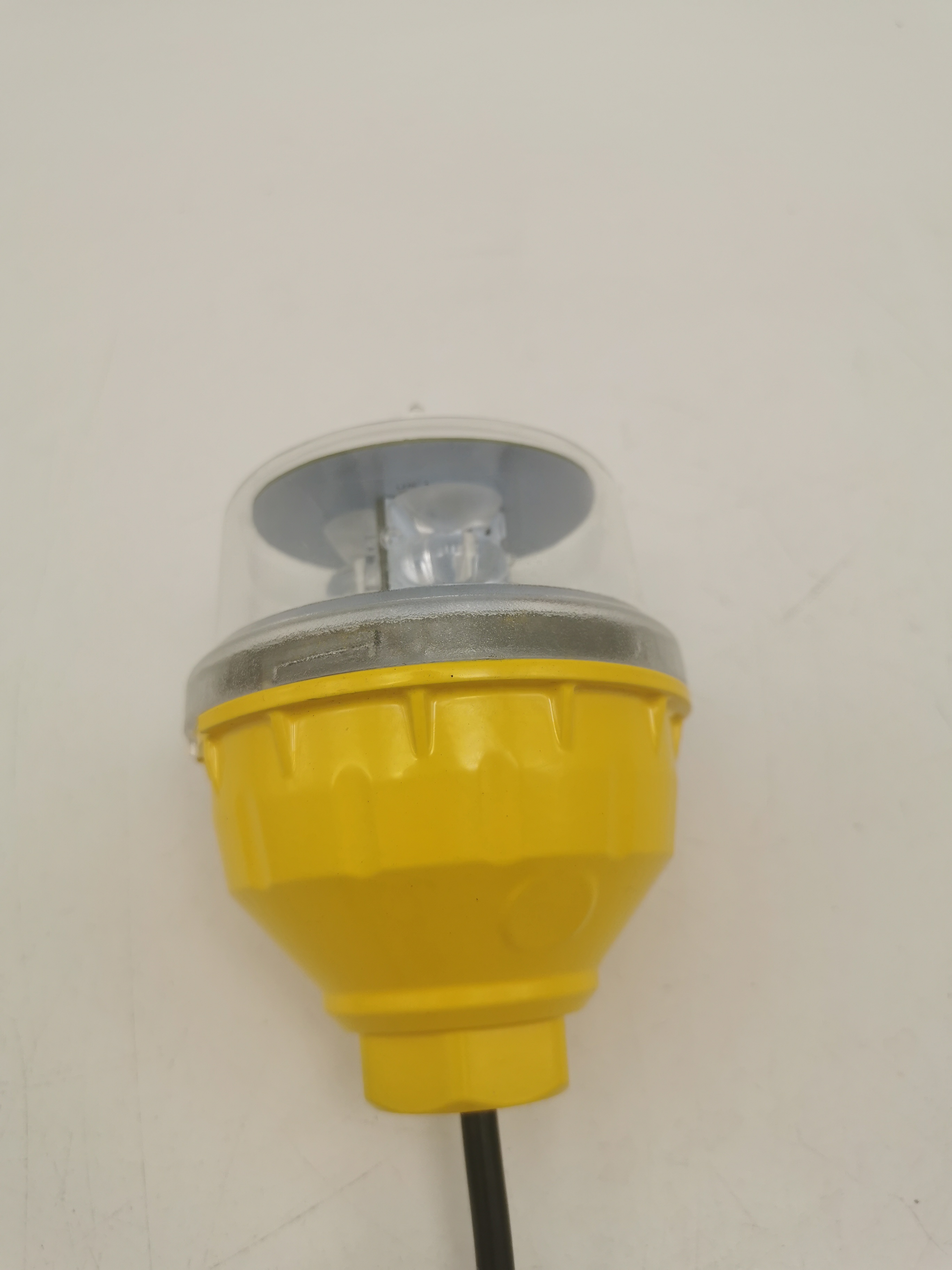

JV-LI-B2 LED Low-intensity Single Aviation Obstruction Light For Sale
This Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.
| SPECIFICATIONS | JV-LI-B2 Low-intensity L810 Single Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | 3 high power CREE LED |
| Emitting Color | Red |
| Intensity(cd) | >32cd, others are optional |
| Horizontal Output(degrees) | 360 |
| Vertical beam spread(degrees) | ≥10 |
| Flash Characteristics | Steady-burning/20/30/60 adjustable |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| 24hours operation as option | |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 48VDC and AC110-240VAC, 12VDC |
| Power(W) | 2.5 |
| Circuit Protection | Integrated |
| Surge/Lightning Protection | IEC61000-4-5 L- L 2kV 4kV |
| Physical Characteristics | |
| Body/Cover Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | 3/4-inch pipe thread |
| Dimension(mm) | 90×90×130 |
| Weight(kg) | 0.3 |
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
| Ambient Temperature (℃) | -55~70 |
| Humidity | 10%-95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Flammability class | UL94-V0 |
| Certificate | |
| ICAO (Issue by Intertek) | |
| ISO 9001-2015 | |
| Options Available | |
| NVG (Night Vision Goggles) compatible LED | |
| Dry contact alarm (NO COM NC) |
