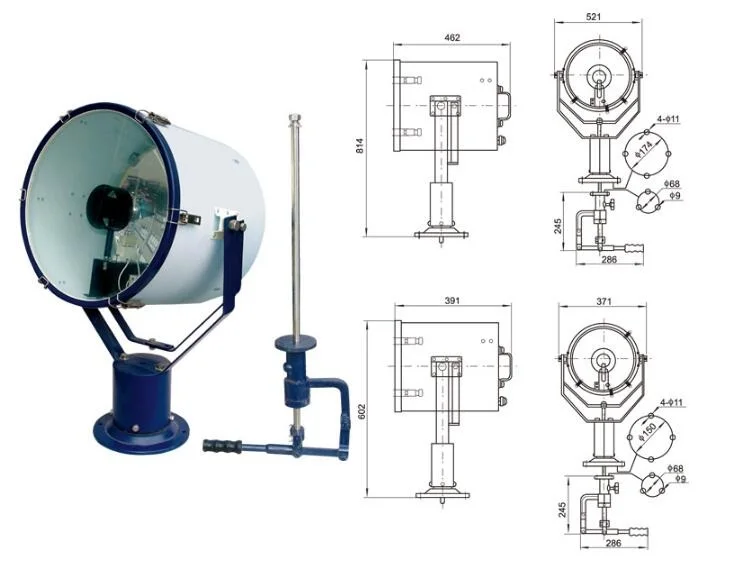

300W 500W stainless steel boat marine signal search light fixture
Features
1. The shell is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lampshade. aluminium base;
2. The lamp bend for ± 30 degrees by joy stick, adjust 350 degrees horizontally, equipped joy stick;
3. Parallel light-beam. far illumination distance. concentrated light;
4. Conform to grade entry and building norms for steel ships;
Technical Parameter
Name | Search light |
| ||
Model | TG71 | TG72 | TG73 | |
Power | 300W | 500W | 1000W | 2000W |
Voltage | AC 220V 50/60Hz | |||
Shine distance | 1175m | 1240m | 1500m | 2030m |
Outside diameter of cable | Φ12-Φ14 | |||
Lamp holder | GY9.5 | GX9.5 | GY16 | |
Light source | Tungsten halogen lamp | |||
Luminous flux | 6900Lm | 12500Lm | 23000Lm | 53000Lm |
Protection class | IP56 | |||
Material | Stainless steel | |||
Weight | 16.2kg ± 5% | 16.2kg ± 5% | 16.2kg ± 5% | 33.7kg ± 5% |
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
