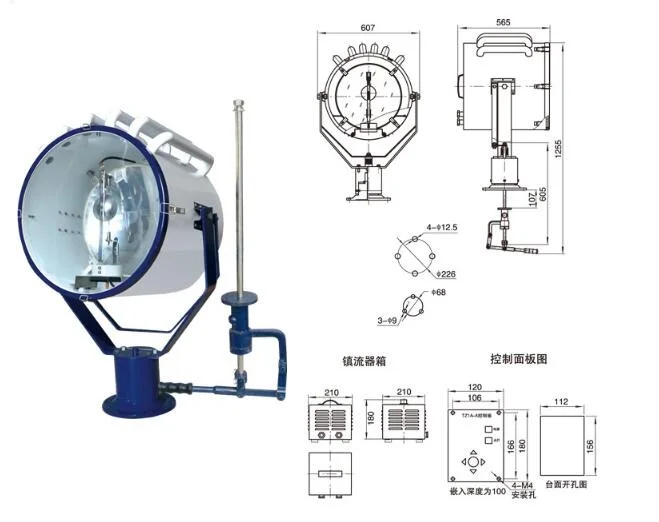

mercury-xenon bulb 1000W marine search light with joystick
Feature
1. This series of searchlights are spherical mercury-xenon light source luminaries, equipped with special ballast and trigger,and in the searchlight there are spherical toughened glass reflector and focal distance adjustment device which can adjust the focal distance flexibly up and down On front and back.These lights possess such features as high luminous strength and far illumination distance. which are specially suitable in remote illumination and target search for night navigation of ship, life safeguard and alarm etc. TZ1 has cast aluminum and steel shell,ball plate mounted on base, also equipped with lifting gear which can control the light body by hand to rotate for 180 degrees horizontally and bend for 30 degrees vertically.
2. TZ1 -A has stainless steel shell, a micro motor is mounted in base for controlling up and down or front and back, and L TZ1 -A is equipped with a special control box which can be used on control table to operate the light body to rotate for 180 degrees horizontally and bend for 30 degrees vertically.
Technical Parameter
Name | Search light |
Model | TZ1A |
Power | 1000W |
Voltage | AC 220V |
Shine distance | >1800m |
Outside diameter of cable | Φ12-Φ14 |
Lamp holder | For special use |
Current | 5.68A |
Luminous flux | 60000Lm |
Protection class | IP56 |
Material | Stainless steel |
Weight | 56.5kg ± 5% |
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
