Home > Products > boat yacht vertical drum capstan hydraulic windlass JVHP1011H
boat yacht vertical drum capstan hydraulic windlass JVHP1011H
Click on the image to view the original image
Product： views：5boat yacht vertical drum capstan hydraulic windlass JVHP1011H
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:59
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
JVHP1011H
Power Source:
Hydraulic
Application:
Boat
Product name:
boat yacht vertical drum capstan hydraulic windlass
Max Pressure(bar):
200
Max.Pull(kg):
3500
Flow Rate(l/min):
28-60
Max.Line Speed(m/min):
10-20
Working Load(kg):
2800
Line Speed:
10-20m/min
Chain Size(AM2):
12.5mm
No Load Absorption:
30A
Material:
Stainless Steel 316
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Netural packing
Port
Shanghai/Ningbo/Guangzhou/Shenzhen
Lead Time:
Quantity(Sets)1 - 30 >30
Est. Time(days)7To be negotiated
Product Description

boat yacht vertical drum capstan hydraulic windlass

ModelMax. Pull (kg)Line SpeedChain SizeLift Working Load
(kg)

Max Pressure

(bar)

Flow Rate (l/min)
JVHP1011H180010-20m/min12.5mm120020020-40
JVHP1012H200010-20m/min14mm150025-50
JVHP1013H260010-15m/min16mm200028-60
JVHP1014H35008-15m/min17.5mm280028-60



Features:

1. Stainless steel vertical windlass.

2.  Available in high or low profile, with different drives and recommended for boats up to 70m.

3. Can use chains up to 20.5mm with stud link in diameter.

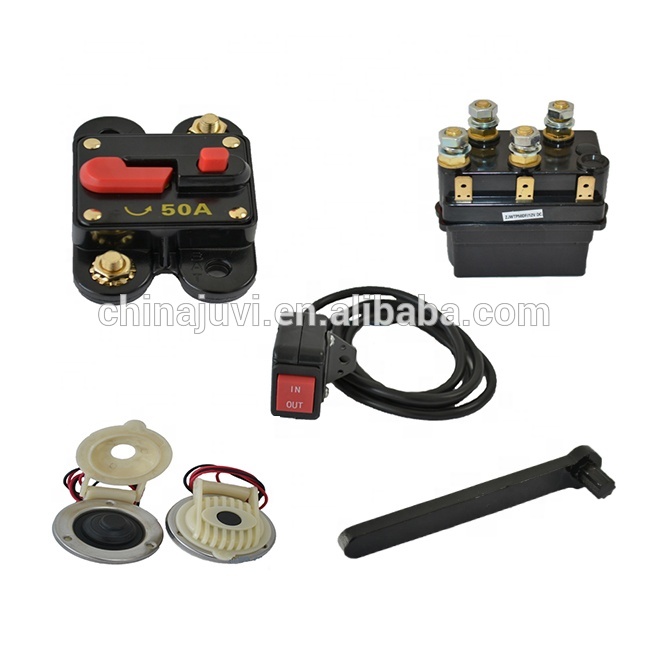

4. Optional accessories: on-off valve, pressure relief valve, flow control valve, foot switch.

Other products

Company Information

1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.

2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)

3. Marine deck mooring: Anchor, Anchor chain.

4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.

5. Customized products according to customers" request.







Advantages





Customers Visiting



FAQ

Q1: Why we choose you?

  11 professional engineers can provide overall solution services.

  13 years specialising in marine deck equipment .

  18 long-term cooperation supporting factories.

  24 hours a day after-sale technical support .

Q2: What kind of payments do you accept?

T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..

Q3: How about the Delivery Time?

  We could finish the production within 30 days

Q4: What"s the MOQ?

   MOQ is 1 set.
