| Sailing Winch | Model | Gear Ratio | Power Ratio | SWL (kg) | Weight (kg) | Line Entry (mm) | Line Size (mm) | ||
| 1st | 2st | 1st | 2st | ||||||
| JVSW-001 | 2: 1 | 16: 1 | 570 | 3.8 | 58 | 8-12 | |||
| JVSW-002 | 2: 1 | 4.5: 1 | 14.2: 1 | 29: 1 | 690 | 5.5 | 69 | 8-12 | |
| JVSW-003 | 1.8: 1 | 6: 1 | 13.5: 1 | 40.5: 1 | 790 | 6.4 | 79 | 8-12 | |
| JVSW-004 | 2.5: 1 | 7.8: 1 | 13.8: 1 | 44.6: 1 | 1200 | 9.5 | 84 | 8-14 | |
| JVSW-005 | 2.8: 1 | 9.2: 1 | 13.8: 1 | 48.8: 1 | 1250 | 16.5 | 86 | 8-14 | |
| JVSW-006 | 3: 1 | 11.5: 1 | 13.9: 1 | 55: 1 | 1480 | 19.5 | 115 | 8-16 | |
| JVSW-007 | 3.2: 1 | 15: 1 | 13.5: 1 | 65: 1 | 1700 | 23 | 122 | 8-18 | |

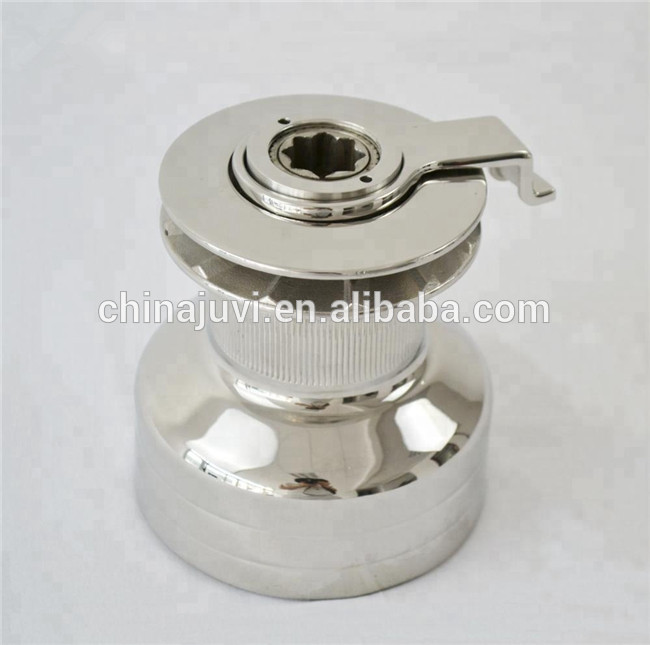

Designed for boatbuilders and sailors. Winches feather mirror-polished drums with stainless steel tops, self-sailing jaws. And we’ve completely covered the winch tops so clothing or fingers donot get caught in moving parts. Available in 1 or 2 speed self-sailing styles.
Features:
Simple servicing: No tools are required to service the winches.
Gripping surface drum: The drum’s gripping surface is shaped for each winch size and drum material and features ribs to maximize gripping power and greatly reduce line wear.
Whole mirror-polished: The whole winch mirror-polished, whole stainless steel.
Wave spring jaw and feeder arm: The cast stainless steel feeder arm position can be adjusted to smoothly feed the rope out of the jaws and into the cockpit.
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
