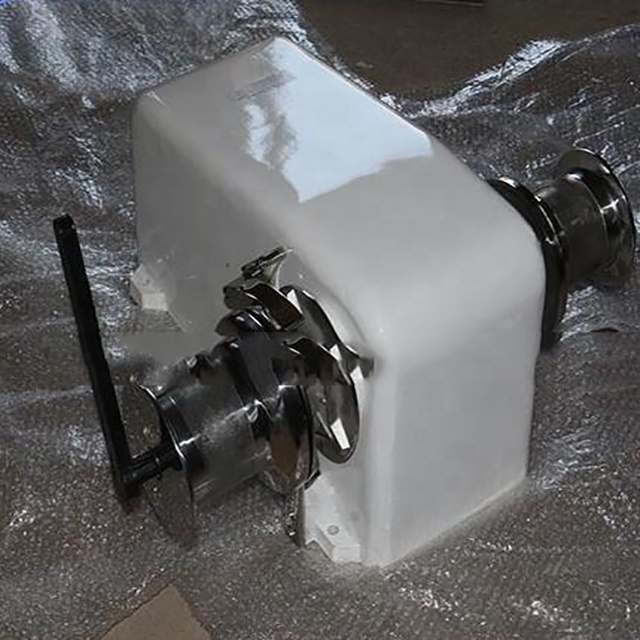

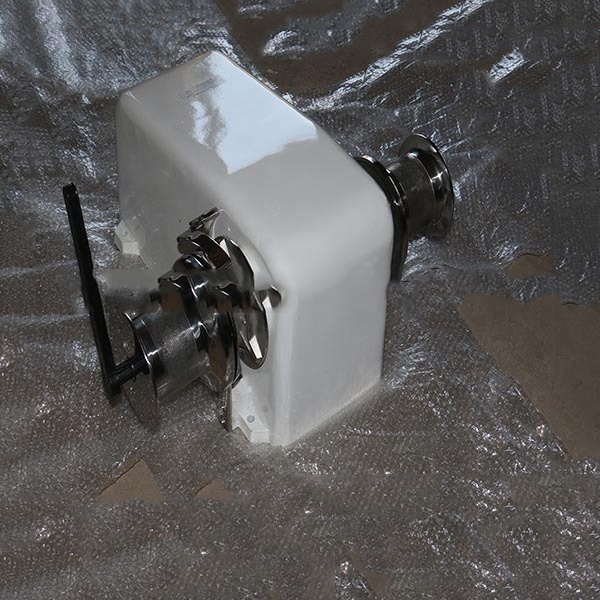

220V/380V 2200W big boat ship ssel yacht horizontal windlass
| Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| SH400 | 13.5 | 12V/24V | 600W | 600 | 22m/min | 6/7mm | |||
| SH1000 | 18 | 1000W | 750 | 25m/min | 8mm | ||||
| JVH-011 | 16 | 12V/24V | 600W | 50A | 190 | 600 | 30m/min | 12-14mm | 6-7mm |
| JVH-012 | 25.5 | 1000W | 90A | 350 | 750 | 25m/min | 14-16mm | 8-10mm | |
| JVH-013 | 32 | 1400W | 125A | 520 | 1100 | 25m/min | 18-20mm | ||
| JVH-014 | 34 | 1600W | 140A | 660 | 1400 | 20m/min | 20-24mm | 10-12mm | |
| JVH-015 | 36 | 220V/380V | 2000W | 6A | 900 | 2000 | 10-13mm | ||
| JVH-016 | 38 | 3000W | 9A | 1200 | 2500 | 10-13mm | |||
| EB2000 | 8.5 | 12V/24V | 6 feet/min | ||||||
| EB3000 | 11 | ||||||||
| GB001H | 160 | 2200W | 190 | 600 | 30m/min | 12.5mm | |||
| GB002H | 260 | 3500W | 350 | 750 | 25m/min | 14mm | |||
| GB003H | 320 | 4000W | 520 | 1100 | 16mm | ||||
| GB004H | 410 | 5000W | 660 | 1400 | 20m/min | 17.5mm | |||
| GB005H | 490 | 6000W | 900 | 2000 | 19mm | ||||
| GB006H | 530 | 7500W | 1200 | 2500 | 20.5mm |
Features:
1.Twin gypsy, twin brakes, one capstan, but you also choose twin capstans.
2.Independent operation of capstans and gypsy by declutching the drive.
3.Simple deck mounted installation with no under deck parts.
4.Simplified maintenance with ability to strip the running gear (chain-wheel and drum) from the windlass without disturbing the windlass mounting.
5.1800 days warranty.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
