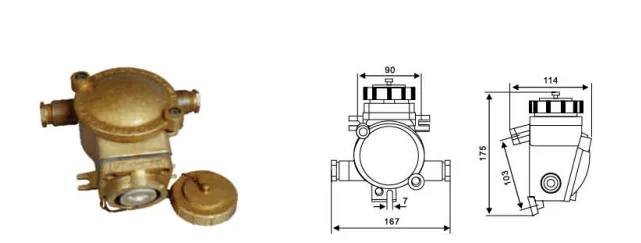

250V 16A Brass marine explosion-proof socket for ship sailing IP56
Specifications
| Code | Name | Weight | Material | Explosion-proof mark | Protection class | Adopted standard | Voltage/Current |
| 5516/ST | dCTH202-3 Explosion-proof plug | 1.25g | Brass | Exd IICT6 | IP56 | IEC60079 | 25OV /16A |
| 5516/L | dCZH202 Explosion-proof socket | 2.6kg | Brass | ||||
| 5516/R | dCZH202-2 Explosion-proof socket | 2.6kg | Brass | ||||
| 5516/D | dCZH202-3 Explosion-proof socket | 2.7kg | Brass |
Features
1. Fit for electric appliances connecting and circuit breaking in ships, sea petroleum, chemical industry site etc.
2.The shell adopts precision brass casting, it has the feature of fine sealing function and fine electric function.
3.This series of products have passed the Examination of National Explosion-proof Electrical Test Center, and was Approval by CCS(China Classification Society).
certificate number 0051SQ20619ROM.
4.Fit for armored cable 10-12.5mm.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
