Home > Products > TZ5 Marine Suez Canal Searchlight Halogen search lamp 2000W 3000W on boat

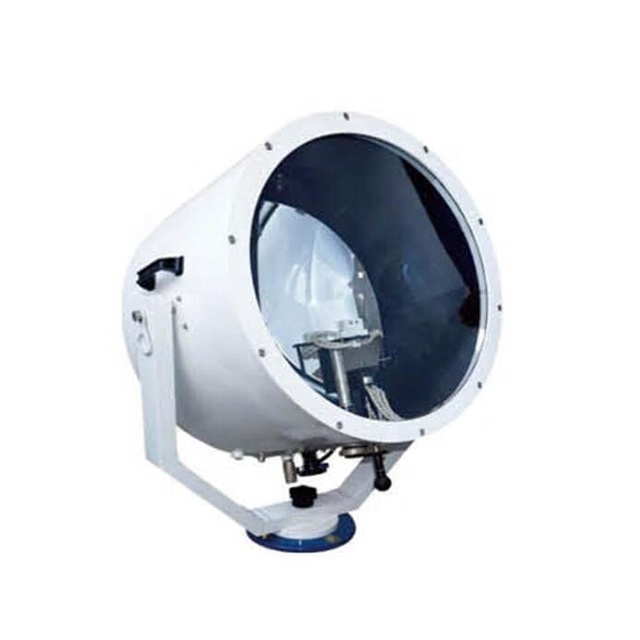

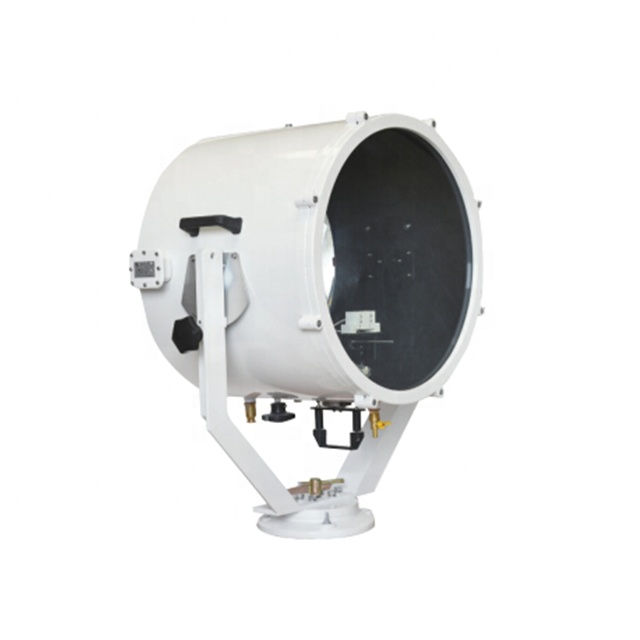

TZ5 Marine Suez Canal Searchlight Halogen search lamp 2000W 3000W on boat
Click on the image to view the original image
Product： views：8TZ5 Marine Suez Canal Searchlight Halogen search lamp 2000W 3000W on boat
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:59
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
220
Lamp Power(W):
2000
Lamp Luminous Flux(lm):
53000
Working Temperature(℃):
-30 - 300
Working Lifetime(Hour):
8888
IP Rating:
IP56
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Product Name:
arine Suez Canal Searchlight Halogen search lamp 2000W 3000W on boat
Power:
2000W
Voltage:
220V
Protection class:
IP56
Cable outside Diameter:
14-16mm
Luminous flux:
23000
Lamp holder:
GY16
Material:
stainless steel
Illuminant:
Tungsten halogen light
Weight:
30kg
Item Type:
Searchlights
Light Source:
Halogen Bulbs
Color Temperature(CCT):
PURE WHITE
Lamp Body Material:
Stainless Steel
Certification:
ce
Base Type:
GY16
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Netural packing
Port
Shanghai/Ningbo/Shenzhen/Guangzhou
Lead Time:
Quantity(Pieces)1 - 30 >30
Est. Time(days)7To be negotiated
Product Description

 2marine Suez Canal Searchlight Halogen search lamp 2000W 3000W on boat



The scope of application

Applied to illuminations of ship pass through the Suez Canal and the narrow sea-route when night navigation, can search and illuminate the obstacle on the surface.

Products characteristic:

1. The lamp body adopts good quality aluminium alloy, the weight is light, good quality toughened glass lampshade.

2. Design with two bulbs structure, has rotary switch inside, can change between the bulbs under the electricity

3. Two hemisphere reflector, can adjust the reflect effect between the + 50 horizontally on.

4. Equipped safe vent-valve under the lamp canister, can ensure the air pressure balance in and out the lamp canister.

5. The lamp can bend for ± 30° , adjust ± 180° horizontally.

6. Parallel light-beam, far illumination distance.

7. Conform to (GRADE ENTRY NORMS FOR STEEL SHIPS )and the request of (SUEZ CANAL NAVIGATION RULES)

8. Patent No.: 201520694772.X

 Specifications

Type Voltage Illuminant

Lamp holder

PowerLuminous flux

Irradiate

distance

Protection
 class

Cable outside

diameter

Weight
TZ5220V/50Hz
220V/60Hz		Tungsten
 halogen light 		GY16110V 2000W
110V 3000W		530001m ≥1800mIP56 φ14-φ1629kg
