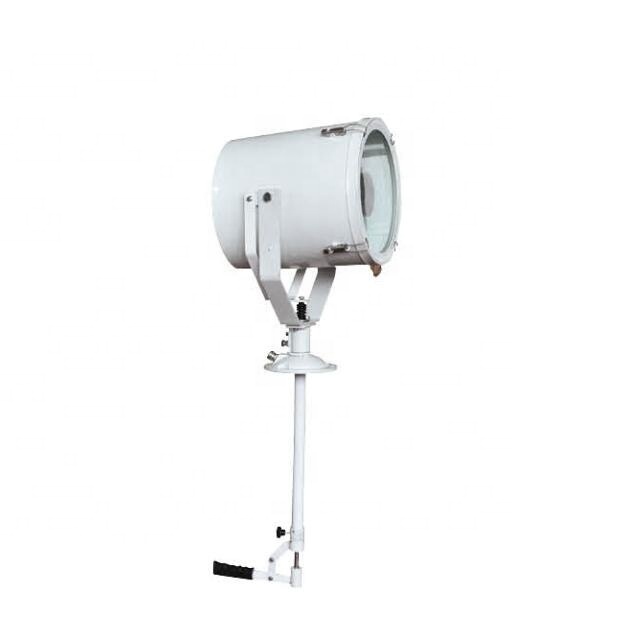

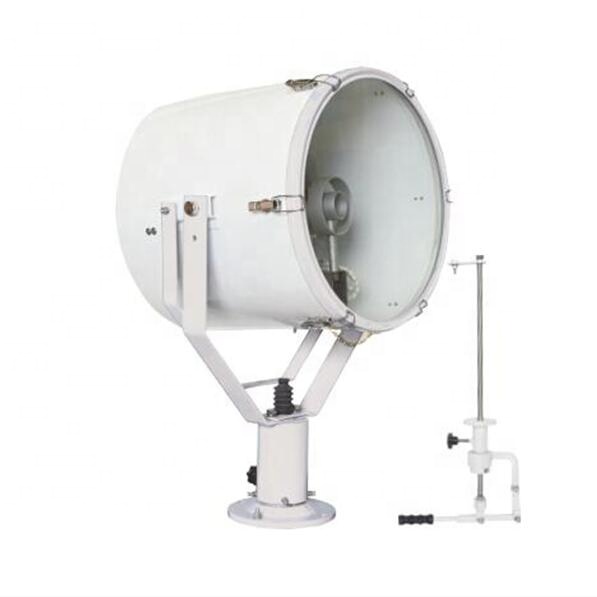

marine searchlight lamp 1000W remote control search light lighting navigation
The scope of application
1. Applied to far distance illumination and searching when night navigation, especially for illumination of sea-route and two banks and
surface search when across the complex water area, such as narrow channel and the inland river riverway etc..
2. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
Products characteristic:
l. The shell is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lampshade,
high quality stainless steel 304 base, adopt import electrical machine.
2. The lamp can adjust up 20° , down 50° by operating box, adjust far distance of 350.horizontally, equipped operating box.
3. Parallel light-beam, far illumination distance, concentrated light.
4. Conform to GRADE ENTRY NORMS FOR STEEL SHIPS .
5. Products with wireless remote control, can control the operation of the wireless 100 m lamp assembly, the leading domestic Line level,
and through product design patents.
6. Patent No.: ZL 201420804513.3.
Specifications
| Type | Voltage | Power | Luminous flux | Lamp holder | Illuminant | Cable outside diameter | Protection class | Weight |
| TG26-B | 220V/50HZ 220V/60HZ | 300W | 6900 | GY9.5 | Tungsten halogen light | φ10-φ12 | IP56 | 40kg |
| 500W | 12500 | |||||||
| TG27-B | 1000W | 23000 | GX9.5 | 40kg | ||||
| TG28-B | 2000W | 53000 | GY16 | 70kg |
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
