- Input Voltage(V):
- 220V/50Hz220V/60Hz
- Lamp Luminous Flux(lm):
- 53000
- CRI (Ra>):
- 11
- Working Temperature(℃):
- -25 - 50
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP56
- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Item Type:
- Searchlights
- Light Source:
- Halogen Bulbs
- Color Temperature(CCT):
- Warm White
- Lamp Body Material:
- Stainless Steel
- Lamp Luminous Efficiency(lm/w):
- 98
- Product Name:
- Marine searchlight
- Certificate:
- CCS
- Application:
- Ship,marine,boat
- Cable outside diamter:
- 10-12mm
- Weight:
- 31.5kg
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 50X30X30 cm
- Single gross weight:
- 30.0 kg
- Package Type:
- Neutral packing
- Lead Time:
Quantity(Piece) 1 - 20 >20 Est. Time(days) 1 To be negotiated
TG28 110v 220v stainless steel outdoor waterproof 2000W long-range high lumen powerful lighting marine rotary searchlight

The scope of application
1. Applied to far distance illumination and searching when night navigation, especially for illumination of sea-route and two banks and surface search when accrose the complex water area, such as narrow channel and the inland river riveway etc.
2. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
Products characteristic
1. The shell is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lampshade, high quality brass base.
2. The lamp bend for +30° degrees by joy stick, adjust 350°degrees horizontally, equipped joy stick.
3. Parallel light-beam, far illumination distance, concentrated light.
4. Conform to<GRADE ENTRY NORMS FOR STEEL SHIPS>.
Specifications
| Name(Type) | Voltage | Power | Luminous flux | Lamp holder | Illuminant | Cable outside diameter | Protection class | Weight |
TG26 SEARCH LIGHT | 24V | 250W | 5600 | G6.35 | Tungsten halogen light | 10-12mm | IP56 | 20.5kg |
| 220V/50Hz 220V/60Hz | 300W | 6900 | GY9.5 | |||||
| 500W | 12500 | |||||||
TG27 SEARCH LIGHT | 1000W | 23000 | 20kg | |||||
TG28 SEARCH LIGHT | 2000W | 53000 | GY16 | 31.5kg |

1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.

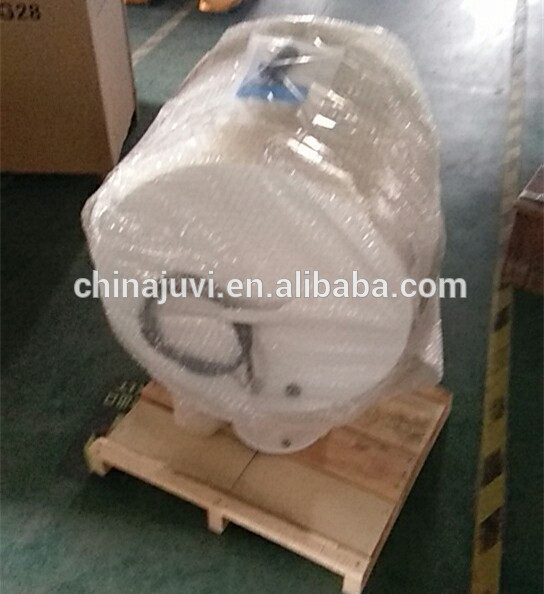

I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.

Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
