Home > Products > mini 12v electric winch drum capstan winch 2500W anchor rope JVW-015

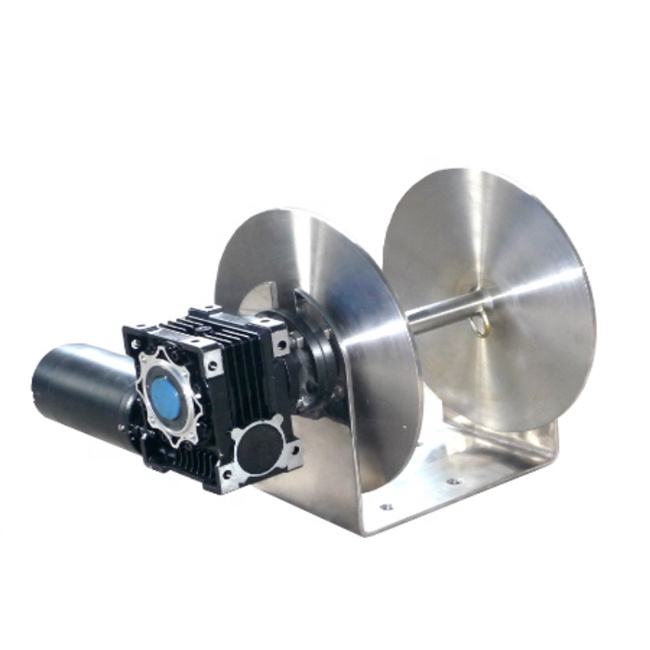

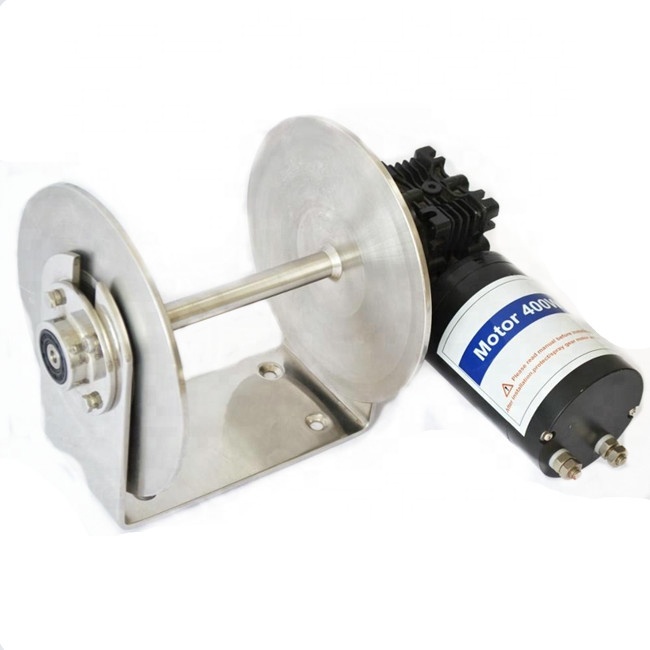

mini 12v electric winch drum capstan winch 2500W anchor rope JVW-015
Click on the image to view the original image
Product： views：5mini 12v electric winch drum capstan winch 2500W anchor rope JVW-015
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
JVW-015
Power Source:
Electric
Application:
Boat
Product name:
mini 12v electric winch drum capstan winch 2500W anchor rope
Max Pressure(bar):
2500W
Flow Rate(l/min):
20-40
Max.Line Speed(m/min):
20m/min
Max. Load (kg):
980
Max. Pull (kg):
1800
Rope Size:
24-30mm
Power supply:
48V/24V
No Load Absorption:
105A
chain size:
10-13mm
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Neutral packing
Port
Shanghai/Guangzhou/Shenzhen
Lead Time:
Quantity(Pieces)1 - 30 >30
Est. Time(days)7To be negotiated
Product Description

1mini 12v electric winch drum capstan winch 2500W anchor rope

Model

Net Weight

(kg)

Power SupplyMotorNo Load Absorption

Max. Load

(kg)

Max. Pull

(kg)

Line SpeedRope SizeChain Size
JVW-010912V/24V400W30A12032030m/min6mm5-6mm
JVW-01116600W50A19060030m/min6-8mm5-6mm
JVW-012201000W90A35075025m/min8-10mm6-8mm
JVW-013301400W120A48090020m/min10-14mm8-10mm
JVW-014431600W135A680120020m/min10-14mm8-10mm
JVW-01511524V/48V2500W105A980180020m/min24-30mm10-13mm
JVW-010S1212V/24V400W30A12032030m/min6mm5-6mm
JVW-011S17.5600W50A19060030m/min6-8mm5-6mm
JVW-012S221000W90A35075025m/min8-10mm6-8mm
JVW-013S351400W120A48090020m/min10-14mm8-10mm
JVW-014S441600W135A680120020m/min10-14mm8-10mm
JVW-015S11924V/48V2500W105A980180020m/min24-30mm10-13mm



1.The fully sealed gearbox is driven by a vertically mounted, permanent magnet motor.

2.Gearbox housing are marine grade alloy and drum is stainless steel.

3.The speed of retrieval increases with each revolution.

4.The rope and chain does not twist and tangle causing the unit to malfunction.

5.The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well.

6.To protect the motor, the circuit breaker will trip out if there is a power overload (for example if the anchor is stuck on the bottom).

7.Easily disassembled for servicing.

8.Fit include hand-switch, solenoid, circuit breaker.
