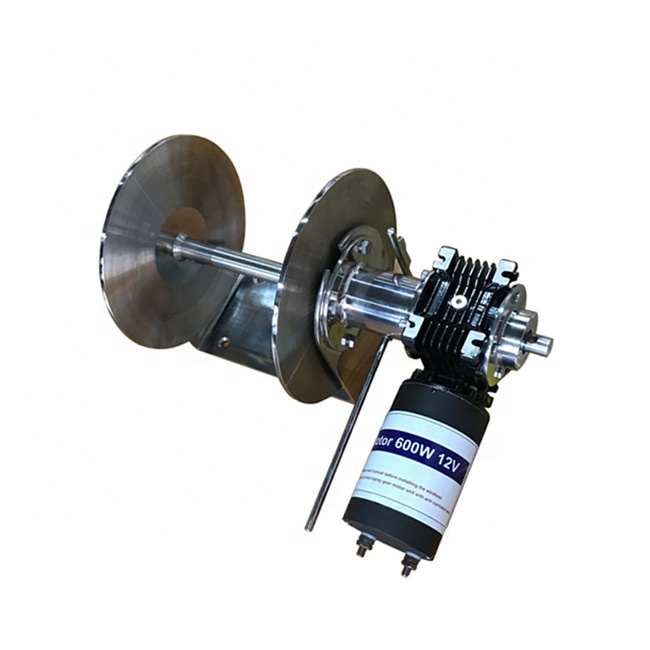

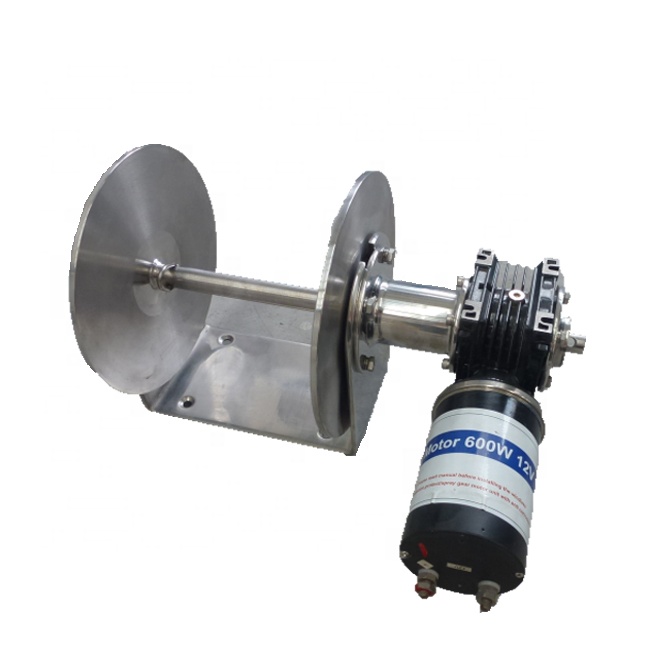

m400W drum boat 12 volts with gearbox 6mm rope
| Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| JVW-010F | 12 | 12V/24V | 400W | 30A | 120 | 320 | 30m/min | 6mm | 5-6mm |
| JVW-011F | 17 | 600W | 50A | 190 | 600 | 30m/min | 6-8mm | 5-6mm | |
| JVW-012F | 25 | 1000W | 90A | 350 | 750 | 25m/min | 8-10mm | 6-8mm | |
| JVW-013F | 35.5 | 1400W | 120A | 480 | 900 | 20m/min | 10-14mm | 8-10mm | |
| JVW-014F | 46 | 1600W | 135A | 680 | 1200 | 20m/min | 10-14mm | 8-10mm |
Product features
1.No need to tie off the rope at anchorage.
2.The speed of retrieval increases with each revolution.
3.All rope and chain is spooled on and off the drum at a rate of 80 and 90 feet per minute.
4.The rope and chain does not twist and tangle causing the unit to malfunction.
5.With the flick of a switch the anchor is raised and lowered.
Freefall at up to 600 feet/minute which is a real advantage when you fish in depths greater than 20 meters.
6.Tthe drum can only free spool whilst where is weight pulling down so once the anchor hits the seabed the drum will automatically stop which
totally eliminates the risk of an over run which
happens when too much rope is spooled out when anchoring.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
