Click on the image to view the original image
- Input Voltage(V):
- 220V 110V
- Lamp Power(W):
- 20
- IP Rating:
- IP56
- Working Lifetime(Hour):
- 20000
- Working Temperature(℃):
- -30 - 135
- Place of Origin:
- Chongqing, China
- Base Type:
- Fa6
- Brand Name:
- JUVI
- Model Number:
- CFY21-2
- Name:
- 20W high power aluminum explosion proof industrial light
- Voltage:
- 220V 110V
- Weight:
- 5.8kg
- Holder Lamp:
- Fa6
- Protection class:
- IP56
- Illuminant:
- Fluorescent
- Power:
- 2*20W
- Cable outside Diameter:
- 11-13
- Explosion-proof mark:
- Exd IICT4
- Material:
- PC+stainless steel
- Item Type:
- Explosion-proof Lights
- Light Source:
- Fluorescent
- Color Temperature(CCT):
- COOL WHITE
- Certification:
- ce
- Lamp Body Material:
- PC+stainless steel
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 69.2X17.7X14.6 cm
- Single gross weight:
- 5.8 kg
- Package Type:
- Netural packing
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50 >50 Est. Time(days) 7 To be negotiated

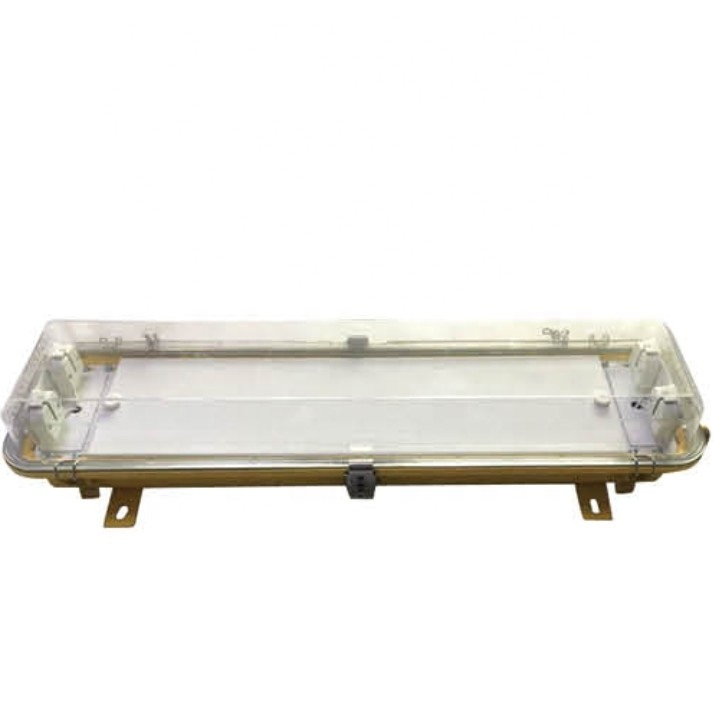

20W 40W Marine Fluorescent Explosion Proof Light Fa6 lamp holder CFY21-2
The scope of application
Applied to ship oil exploit platform,chemical product and explosive gas place zone 1 or zone 2.
Products characteristic
1. The Integral shell is type made clip,high of good protection quality grade. steel,the lampshad is good quality transparence PC.
2. Integral type clip protection grade.
3. Flameproof safety type structure.
Production authentication
Conform to International IEC standard and GB3836,GB7000.

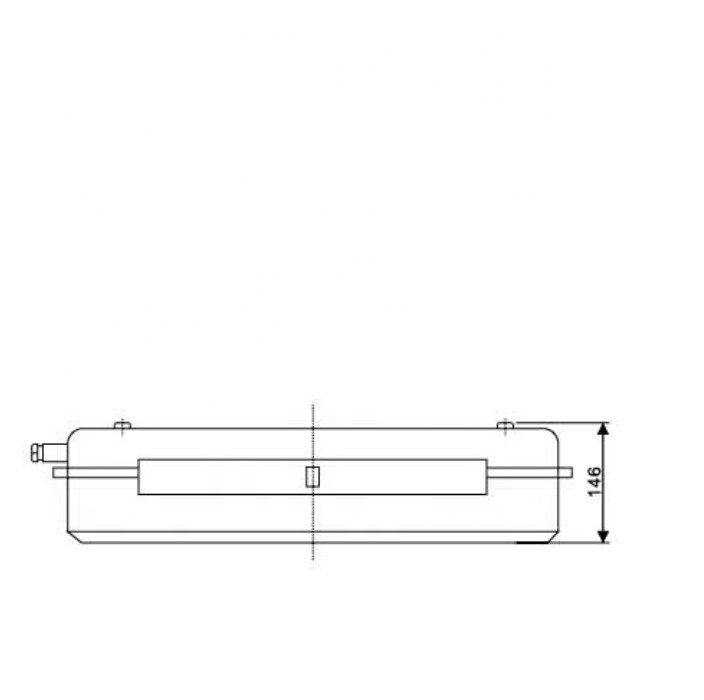

Specifications
| Type | Explosion-proof Mark | Voltage | Power | Lamp Holder | Cable outside diameter | Protection class | Weight |
| CFY21-2 | Exd IICT4 | 220V /5OHz 220V /60Hz 110V /60Hz | 2×20W | Fa6 | φ11-φ13 | IP65 | 5.8kg |
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
