Home > Products > E40 500w marine spot light Explosion proof spot light CFT1

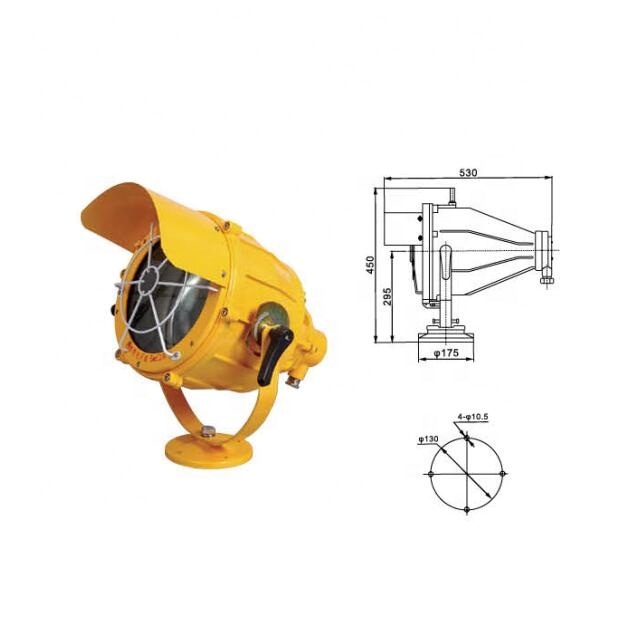

E40 500w marine spot light Explosion proof spot light CFT1
Click on the image to view the original image
Product： views：2E40 500w marine spot light Explosion proof spot light CFT1
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:00
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
110V
Lamp Power(W):
300
IP Rating:
IP56
Working Lifetime(Hour):
20000
Working Temperature(℃):
-30 - 350
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Name:
500w marine spot light
Weight:
10kg
Holder Lamp:
E40
Power:
300W/400W/450W/500W
Illuminant:
Incandescent/mercury light/self-ballast mercur light
Cable outside Diameter:
12-14.5
Explosion-proof mark:
Exd IIBT2
Material:
aluminum
Voltage:
220V 110V
Model:
CFT1
Item Type:
Explosion-proof Lights
Light Source:
Incandescent Bulbs
Color Temperature(CCT):
PURE WHITE
Certification:
ce
Base Type:
E27
Lamp Body Material:
cast aluminum
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Neutral packing
Port
Shanghai/Guangzhou/Shenzhen/Ningbo
Lead Time:
Quantity(Pieces)1 - 50 >50
Est. Time(days)7To be negotiated
Product Description



EE40 500w marine spot light Explosion proof spot light CFT1

 The scope of application

Applied to the explosive gas place zone 1 zone 2 with the temperature group T1-T4,also suitable for remote illumination.

Products characteristic

Good quality aluminium shell ,brass net shield,toughened glass .The light body can rotate 350° horizontally and 45°up and down.

Production authentication

1. Passed the examination of National Explosion-proof Safety Supervisal and Inspection station for Luminaire.

1. Approval by CCS(China of National Classification Explosion-proof Society Safety ), certificate number 00515Q20619ROM

Specifications

TypeExplosion-proof MarkVoltagePowerIlluminant

Lamp

Holder

Protection
 class		Cable outside
 diameter		MaterialWeight
CFT1Exd IIBT2

100V/200V

220V
50Hz/60Hz

300wHigh-prassure mercury light E40IP56φ12-φ14.5Aluminium10kg
400W High-prassure mercury light
450W Self-ballast mercur bulb
500w

Incandescent
