The scope of application:

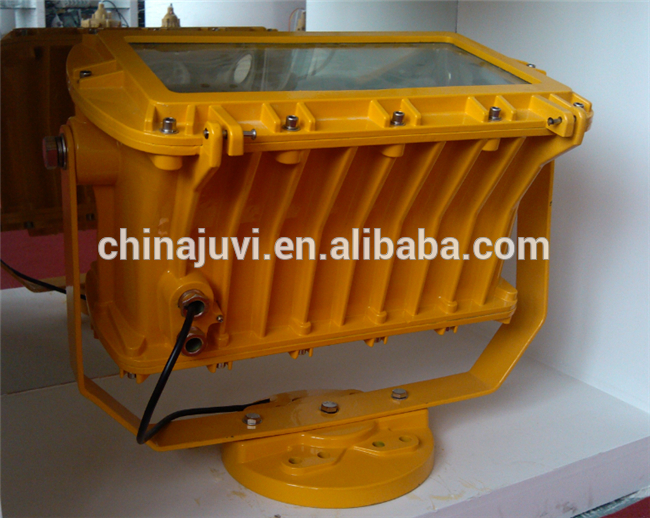

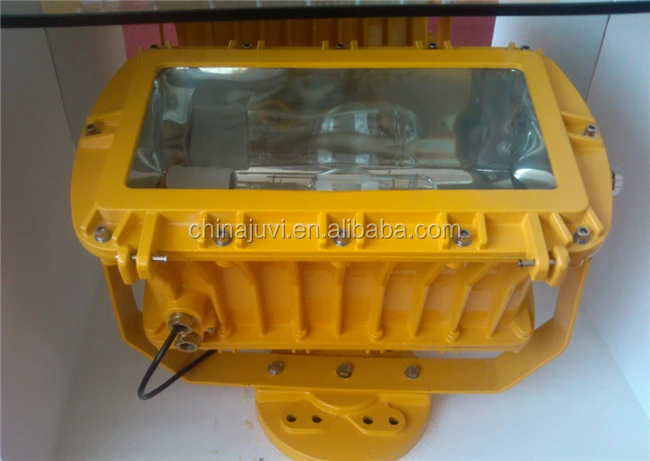

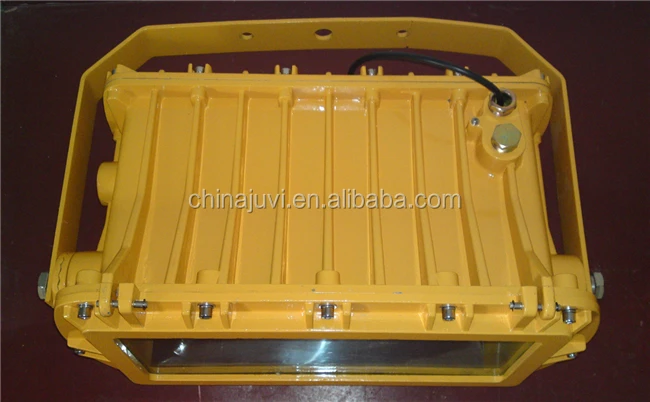

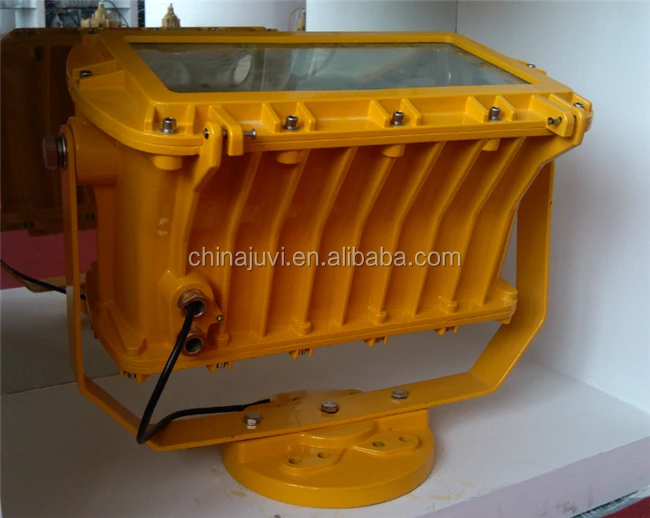

1. The shell adopts good quality cast down alumnium, good quality toughened glass lampshade. The lamp body can adjust up and down 45..
2. The lamp body adopts seal structure, has high waterproof performance and anticorrosive performance.
3. Equipped ballast inside, no need to equipped ballast box (except the vollage is 110V/60Hz).
4. Conform to GRADE ENTRY NORMS FOR STEEL SHIPS and national standard GB3836-2000, GB12045, En50014, En50018, En60079.
Specification:
|
| Power | Voltage | Weight | Protection class | Lamp | Illuminant | Cable outside Diameter | Explosion-proof mark | LM Luminous flux |
flood light | CFT2 | 250W | 220V/50Hz 220V/60Hz 110V/60Hz | 24.5kg | IP56 | E40 | High-pressure sodium lamp | 11 ~ 13 | Exd IIBT3 | 26000 |
metal halide lamp | 20500 | |||||||||
400W | High-pressure sodium lamp | Exd IIBT2 | 47000 | |||||||
metal halide lamp | 36000 |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label,Color Inner Box,etc |
| Delivery | By Courier,By Air,By Sea |
| Port | Ningbo,Shanghai,Guangzhou |
ChongQing Juvi Marine Equipment Co.,Ltd, can supply wide range of marine equipment for shipbuilding,ship repairing, ocean engineering and offshore projects etc.
Our main products include:
1, Marine life-saving and fire-fighting equipment: Lifeboat and davit,liferaft,lifejaket and lifebuoy etc.
2, Marine deck machineries: Anchor electic winch,Mooring Winch, Capstan,Steering gear etc
3, Marine deck mooring fittings: Anchor, Anchor chain, Panama chock, Roller fairlead,Bollard,Chain stopper etc.
4, Marine power and propulsion equpment: Rudder system,Shaft system, Propeller,Rudder propeller,Bow thruster,Emergecy generator set etc.
5, Marine cabin machinery: Marine pump, Ventilation fan,Boiler,Incinerator,Oily water separator, Hydrophone tank, Sewage treatment unit, Galley and laundry equipment etc.
6, Marine outfitting: Marine door,window,side scuttle,small hatch cover,manhole cover, accommodation ladder,gangway ladder,wharf ladder, marine sacrifical anode,pipes and fittings etc
6, Rubber product: Rubber fender, Pneumatic(Yokohama) fender, rubber packing/rubber seal for hatch cover, air bag for ship grading, rubber air pontoon
7, Boat and yacht hardward: Stainless steel anchor, anchor chain,bollard, chock,fairlead, wheel,ladder,shackle,thimble,hook etc.
8, Other industrial product: Elevator balance compensating chain, air filter, Panel filter,Bag/Pocket filter, HEPA/ULPA air filter etc.
