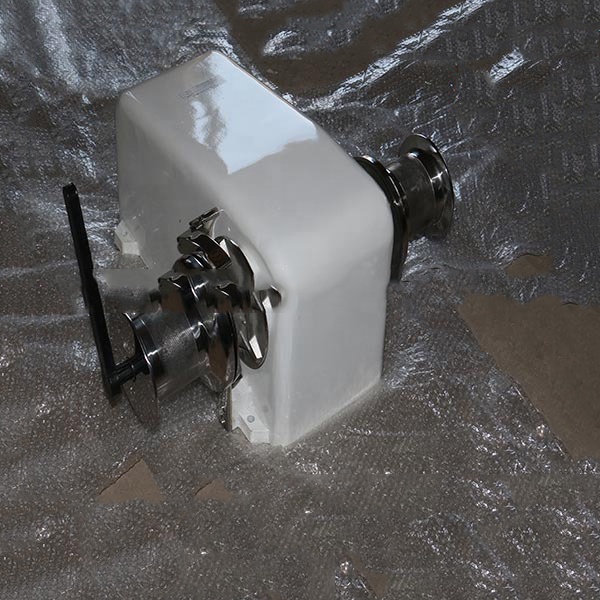

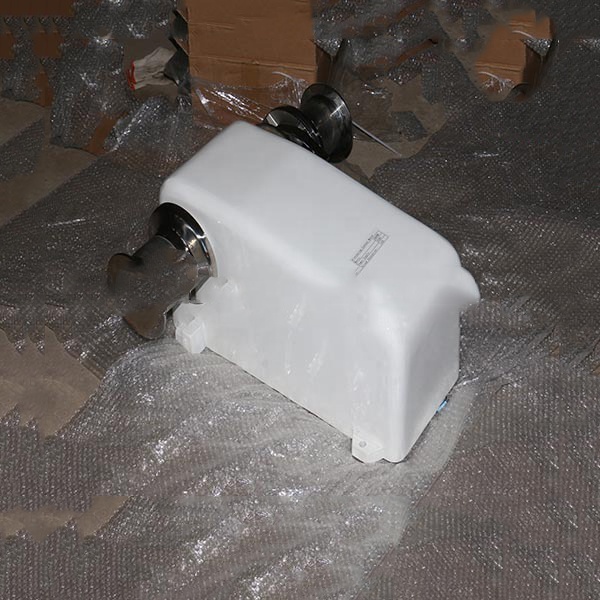

Stainless steel anchor windlass DC 3500W horizontal windlass GB002H
Click on the image to view the original image
Product： views：3Stainless steel anchor windlass DC 3500W horizontal windlass GB002H
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
GB002H
Power Source:
Electric
Application:
Boat
Product name:
Stainless steel anchor windlass DC 3500W horizontal windlass
Motor power:
3500W
Max. Load (kg):
350
Max. Pull (kg):
750
Power supply:
220V 380V
Weight:
320kg
chain Size:
14mm
Usage:
Cable Pulling Machine
Max.Line Speed(m/min):
25m/min
usage:
boat/ship/yacht/marine
Supply Ability
Supply Ability:
10000 Pair/Pairs per Month
Packaging & Delivery
Packaging Details
Standard packing
Port
Shanghai/Ningbo/Shenzhen/Guangzhou
Lead Time:
Quantity(Pieces)1 - 30 >30
Est. Time(days)7To be negotiated
Product Description

Stainless steel anchor windlass DC 3500W horizontal windlass

Model

Net Weight

(kg)

Power

Supply

Motor

No Load

Absorption

Max. Load

(kg)

Max. Pull

(kg)

Line SpeedRope SizeChain Size
SH40013.512V/24V600W  60022m/min6/7mm
SH1000181000W  75025m/min8mm
JVH-0111612V/24V600W50A19060030m/min12-14mm6-7mm
JVH-01225.51000W90A35075025m/min14-16mm8-10mm
JVH-013321400W125A520110025m/min18-20mm
JVH-014341600W140A660140020m/min20-24mm10-12mm
JVH-01536220V/380V2000W6A900200010-13mm
JVH-016383000W9A1200250010-13mm
EB20008.512V/24V    6 feet/min
EB300011
GB001H160 2200W 19060030m/min 12.5mm
GB002H260 3500W 35075025m/min 14mm
GB003H320 4000W 5201100 16mm
GB004H410 5000W 660140020m/min 17.5mm
GB005H490 6000W 9002000 19mm
GB006H530 7500W 12002500 20.5mm



Features:

1.Twin gypsy, twin brakes, one capstan, but you also choose twin capstans.

2.Independent operation of capstans and gypsy by declutching the drive.

3.Simple deck mounted installation with no under deck parts.

4.Simplified maintenance with ability to strip the running gear (chain-wheel and drum) from the windlass without disturbing the windlass mounting.

5.1800 days warranty.
