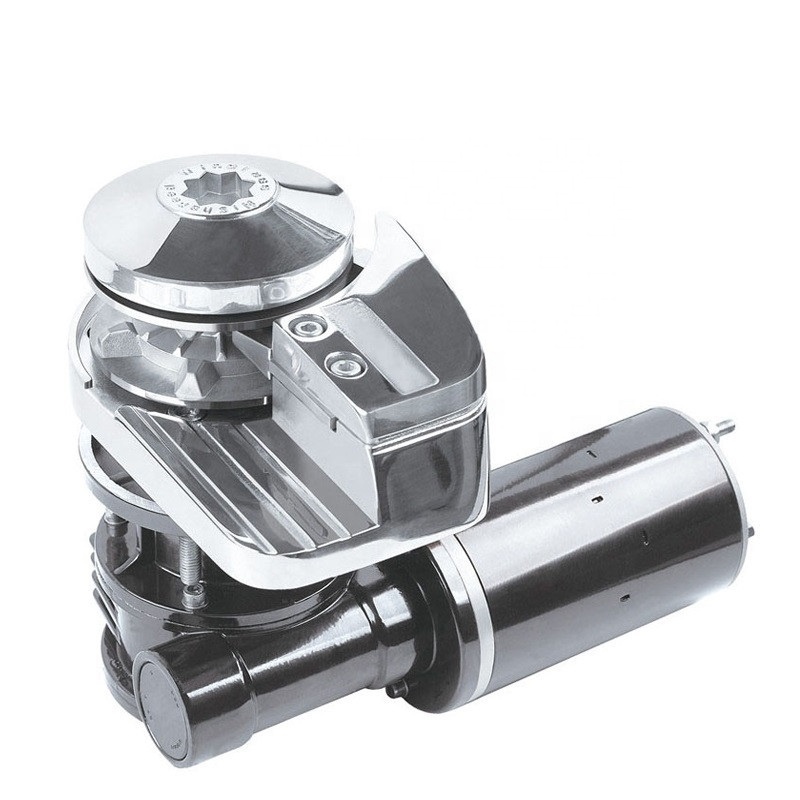

JVS912 12V 900W AISI SS316 windlass anchor electric winch for boat yacht
Click on the image to view the original image
Product： views：2JVS912 12V 900W AISI SS316 windlass anchor electric winch for boat yacht
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
JVS912
Power Source:
Electric
Application:
Boat
Capacity:
540/1200kgs/lbs
Product name:
SS316 windlass anchor electric winch
Motor:
900W
Power Supply:
12V
Max. Load:
250/550kgs/lbs
Max. Pull:
750/1650kgs/lbs
max line speed (m/min)/(ft/min):
35/115
Weight:
weight (kgs/lbs)
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Packaging
Port
Shanghai/Guangzhou/Shenzhen
Lead Time:
Quantity(Sets)1 - 20 >20
Est. Time(days)3To be negotiated
Product Description

JVS912 12V 900W AISI SS316 windlass anchor electric winch for boat yacht



ModelMotorVoltage

Current

Draw

Max.

Working

Load

(kgs/lbs)

Max. Pulling Power

(kgs/lbs)

Material
JVS612600W12V20A180/400540/1200

AISI 316

stainless steel

JVS912900W12V35A250/550750/1650
JVS612600W12V33A150/330450/990
JVS912900W12V55A220/484660/1452
JVC612C600W12V33A150/330450/990
JVC912C900W12V55A220/484660/1452
JVC10121000W12V55A250/550750/1650
JVC1012C1000W12V55A250/550750/1650
JVC12121200W12V85A400/8801100/2420
JVC15121500W12V115A485/10671200/2640
JVC15241500W24V65A485/10671200/2640
JVC1212C1200W12V85A400/8801100/2420
JVC1512C1500W12V115A485/10671200/2640
JVC1524C1500W24V65A485/10671200/2640
JVC25242500W24V100A900/19802000/4400
JVC2524C2500W24V100A900/19802000/4400



Features:

  • Max. line speed (m/min)/(ft/min): 35/115
  • Weight (kgs/lbs) : 14/31
  • Alt.1-chain (DIN766) : 6mm
  • Alt.2-chain/rope (DIN766-HT G4) : 6mm-1/4inch
  • Alt.3-chain/rope (DIN766-HT G4) : 8mm-5/16inch
  • Alt.2-rope (mm-inches) : 12mm-1/2inch
  • Alt.3-rope (mm-inches) : 14mm-9/16inch
  • With control units solenoids, circuit breaker, switch panel, foot switch.
  • Suitable for boats from 20ft to 35ft.
