Click on the image to view the original image
- Properties:
- Medical X-ray Equipments & Accessories
- Brand Name:
- WINCOM
- Model Number:
- XRY-500B
- Place of Origin:
- CHINA
- Instrument classification:
- Class II
- Product name:
- 500mA XRAY Radiograph System With Full Accessories
- Model:
- XRY-500B
- Output power:
- 40kW
- Inverter Frequency:
- 50HZ
- Tube current:
- 32~500mA
- Tube voltage:
- 44kV-125kV
- Expose time:
- 0.020s~4.000s
- Grids cassette holder movement:
- ≥500mm
- Warranty:
- one year
- Feature:
- 500mA XRAY Radiograph System With Full Accessories
- Supply Ability:
- 6000 Piece/Pieces per Month
- Packaging Details
- 500mA XRAY Radiograph System With Full Accessories with safe wooden packing
- Port
- Shanghai/Shenzhen/Guangzhou
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 >1 Est. Time(days) 10 To be negotiated

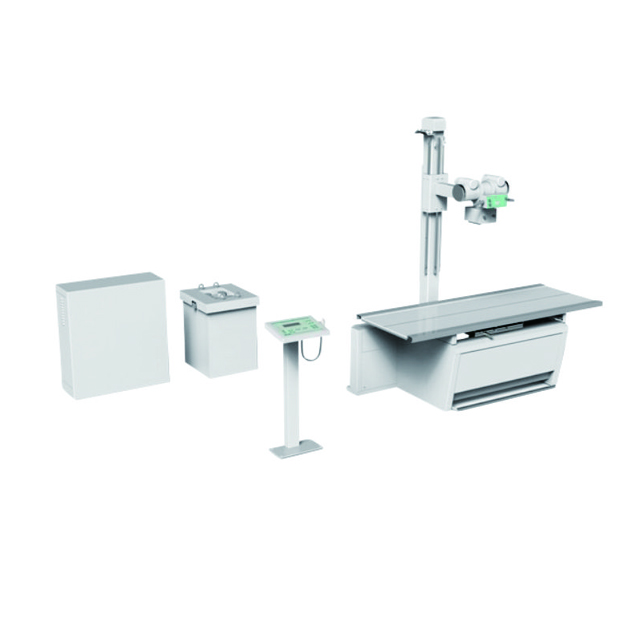

500mA XRAY Radiograph System With Full Accessories
500mA XRAY Radiograph System With Full Accessories | ||
Art. No. | XRY-500B | |
Output power | 40kW | |
Inverter Frequency | 50HZ | |
X-ray tube | Rotary anode, dual-focus, large focus: 2.0mm, small focus: 1.0mm, Tube thermal capacity: 140kJ | |
Tube current | 32~500mA | |
Tube voltage | 44kV-125kV | |
Expose time | 0.020s~4.000s | |
Power supply | 380V±38V50/60Hz, Capacity: ≥40kVA | |
Table size | 2000×760mm | |
Table height | ≤700mm | |
Table transverse movement | ≥220mm | |
Table longitudinal movement | ≥900mm | |
Grids cassette holder movement | ≥500mm | |
X-ray tube assembly rotation | ±90° | |
Rotation of the pillar | 4×90° | |
SID | 500-1280mm | |
Pillar movement along the table | ≥1300mm | |
Film size | 5×7-14×17 | |
Bucky stand up&down movement | 470~1468mm | |
Features | 500mA XRAY Radiograph System With Full Accessories | |
Warranty | one year | |
WINCOM is a professional leading enterprise specializing in manufacturing and supply of Laboratory & Medical Equipments. We are the member of China Chamber of Commerce of Medicines & Health Products. With rich experience of international business for about 20 years, we have established business relationship with 50 countries and regions in Africa, America, Europe and Asia, and awarded high reputation in the international market.
Products
We have more than 3000 products supplied by our own factories, joint venture factories and agreement factories. You will save time, save cost to buy all the equipments from Allfine with full warranty.
Quality
Comply with ISO9001:2008 Quality Management System,we are responsible to supply you the best quality products.
Prices & Services
Base on the strong relationship and agreement with more than 500 factories in China, we can supply you with the best competitive prices.
