- Properties:
- Medical X-ray Equipments & Accessories
- Brand Name:
- WINCOM
- Model Number:
- XRY-HF200B
- Place of Origin:
- CHINA
- Instrument classification:
- Class II
- Product name:
- High Frequency XRAY Radiograph System Machine with 200mA
- Output power:
- 25KW
- Inverter Frequency:
- 40KHZ
- Tube current:
- 200mA
- Tube voltage:
- 40-125KV
- Power supply:
- 380V 50Hz, Capacity:≥ 40k VA
- Table size:
- 2000*760mm
- Table height:
- ≤700mm
- Table transverse movement:
- ≥210mm
- Warranty:
- one year
- Supply Ability:
- 6000 Piece/Pieces per Month
- Packaging Details
- High Frequency XRAY Radiograph System Machine with 200mA with safe wooden packing
- Port
- Shanghai/Shenzhen/Guangzhou
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 >1 Est. Time(days) 10 To be negotiated

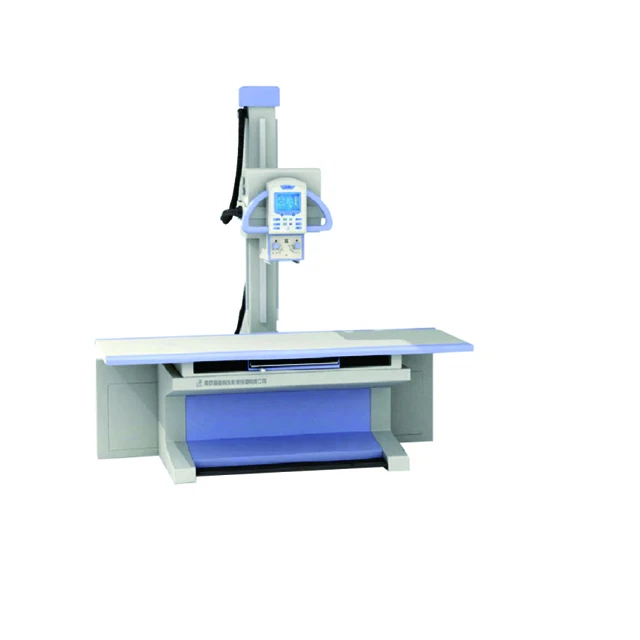

High Frequency XRAY Radiograph System Machine with 200mA
High Frequency XRAY Radiograph System Machine with 200mA | ||
Art. No. | XRY-HF200B | |
Output power | 25KW | |
Inverter Frequency | 40KHZ | |
X-ray tube | Rotary anode, dual-focus, | |
Large focus: 1.3mm,Small focus: 0.6mm | ||
Tube thermal capacity:900kJ | ||
Tube current | 200mA | |
Tube voltage | 40-125KV | |
Power supply | 380V 50Hz, Capacity:≥ 40k VA | |
Table size | 2000×760mm | |
Table height | ≤700mm | |
Table transverse movement | ≥210mm | |
Table longitudinal movement | ≥900mm | |
Grids cassette holder movement | ≥560mm | |
X-ray tube assembly rotation | ≥±90° | |
Rotation of the pillar | 4×90° | |
SID | 450-1200mm | |
Pillar movement along the table | ≥1370mm | |
Film size | 5×7-14×17 | |
Bucky stand up&down movement | 472~1470mm | |
Warranty | one year | |
