Horizontal Cylindrical Pressure Steam Sterilizer

Click on the image to view the original image

Product：	views：2Horizontal Cylindrical Pressure Steam Sterilizer
Branch：	OEM/WINCOM
Type：	Pressure Steam Sterilization Equipments
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:06

Product Details

Overview

Quick Details

Type:: Pressure Steam Sterilization Equipments

Brand Name:: OEM/WINCOM

Model Number:: SS-H150A

Place of Origin:: Shanghai, China

Instrument classification:: Class II

Sterilizing volume:150L:: Working pressure:0.22Mpa

Working temperature:134℃:: Time for sterilization:0-60min

automatic sterilization controlled:: With drying function

over-temperature/pressure auto-protect:: stainless steel chamber

Supply Ability

Supply Ability:: 100 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1pcs in one wooden case.,or per customer request

Port: ShangHai

Product Description

Horizontal Cylindrical Pressure Steam Sterilizer
Art.No.	SS-H150A	SS-H200A	SS-H280A
Sterilizing volume	150L (φ440x1000mm)	200L (φ515x1000mm)	280L（φ600×1000mm）
Working pressure	0.22Mpa	0.22Mpa	0.22Mpa
Working temperature	134℃	134℃	134℃
Time for sterilization	0-60min	0-60min	0-60min
Power	AC380V.50HZ/9KW	AC380V.50HZ/9KW	AC380V.50HZ/12KW
1. Sterilizing course automatic sterilization controlled,easy to operate.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can't be started on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.

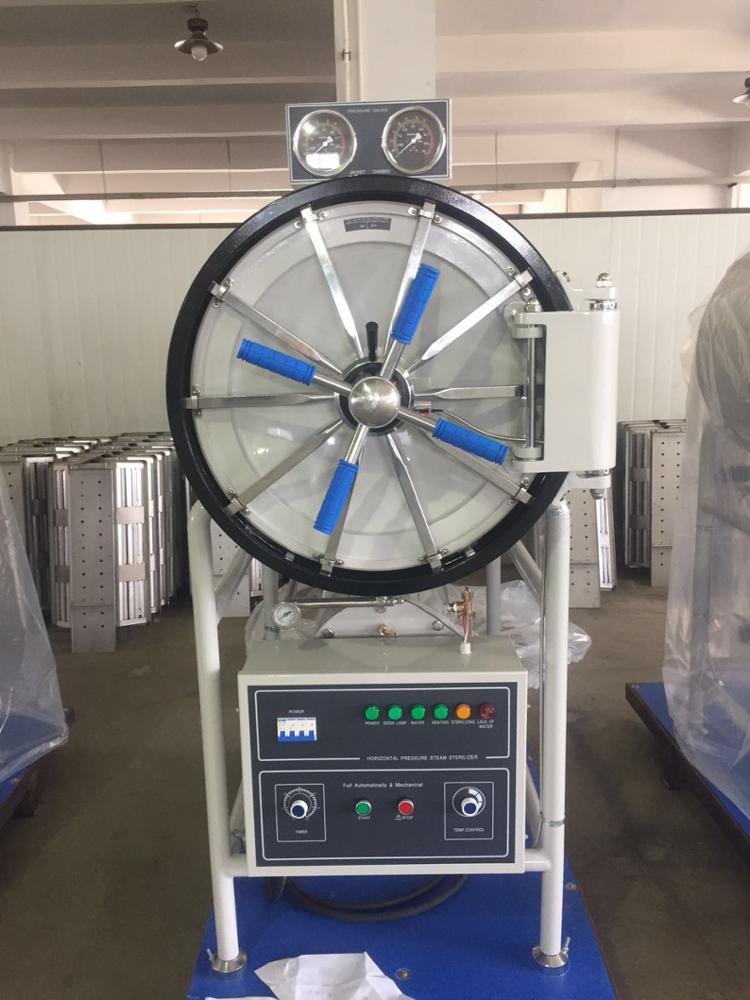

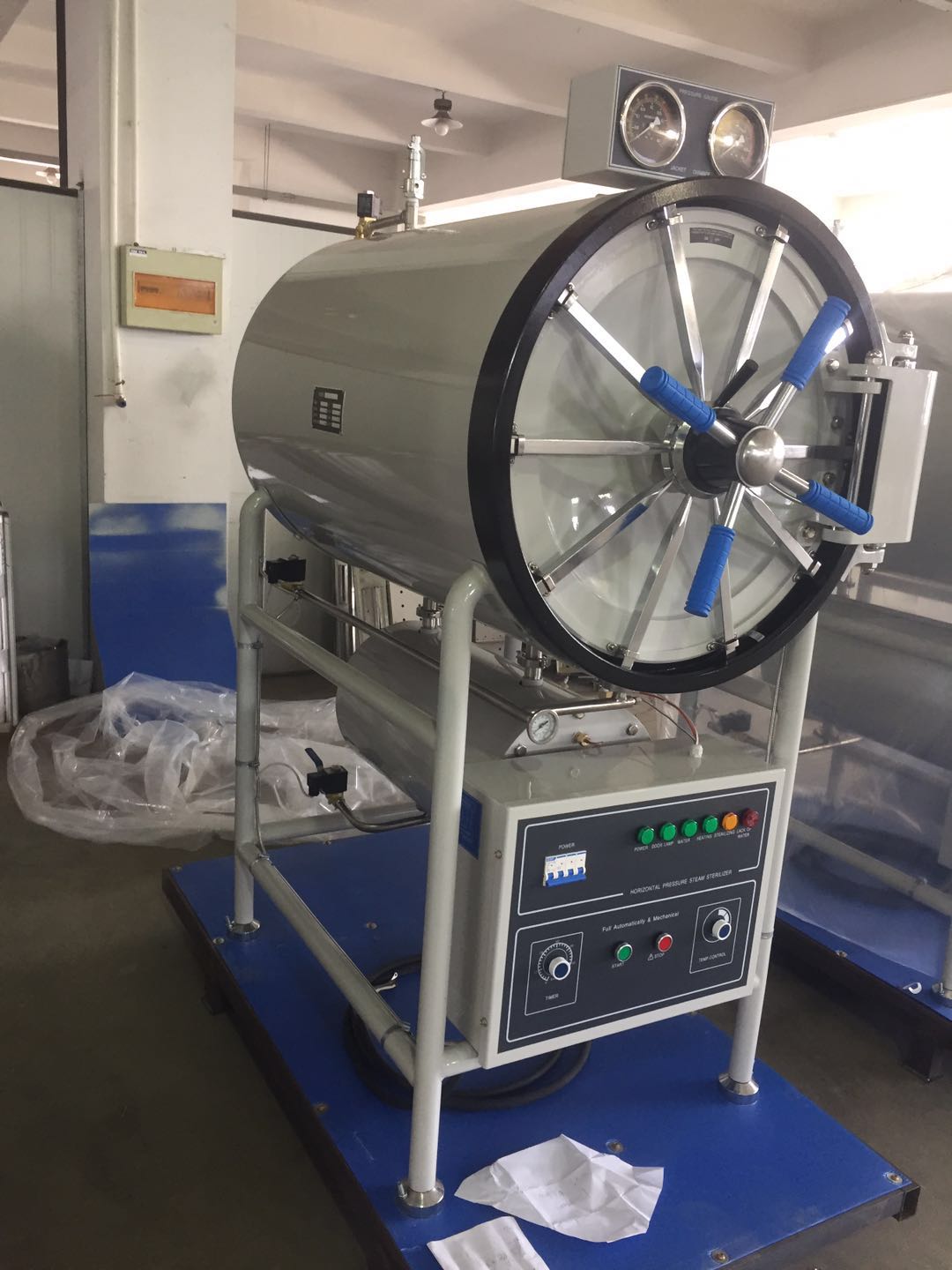

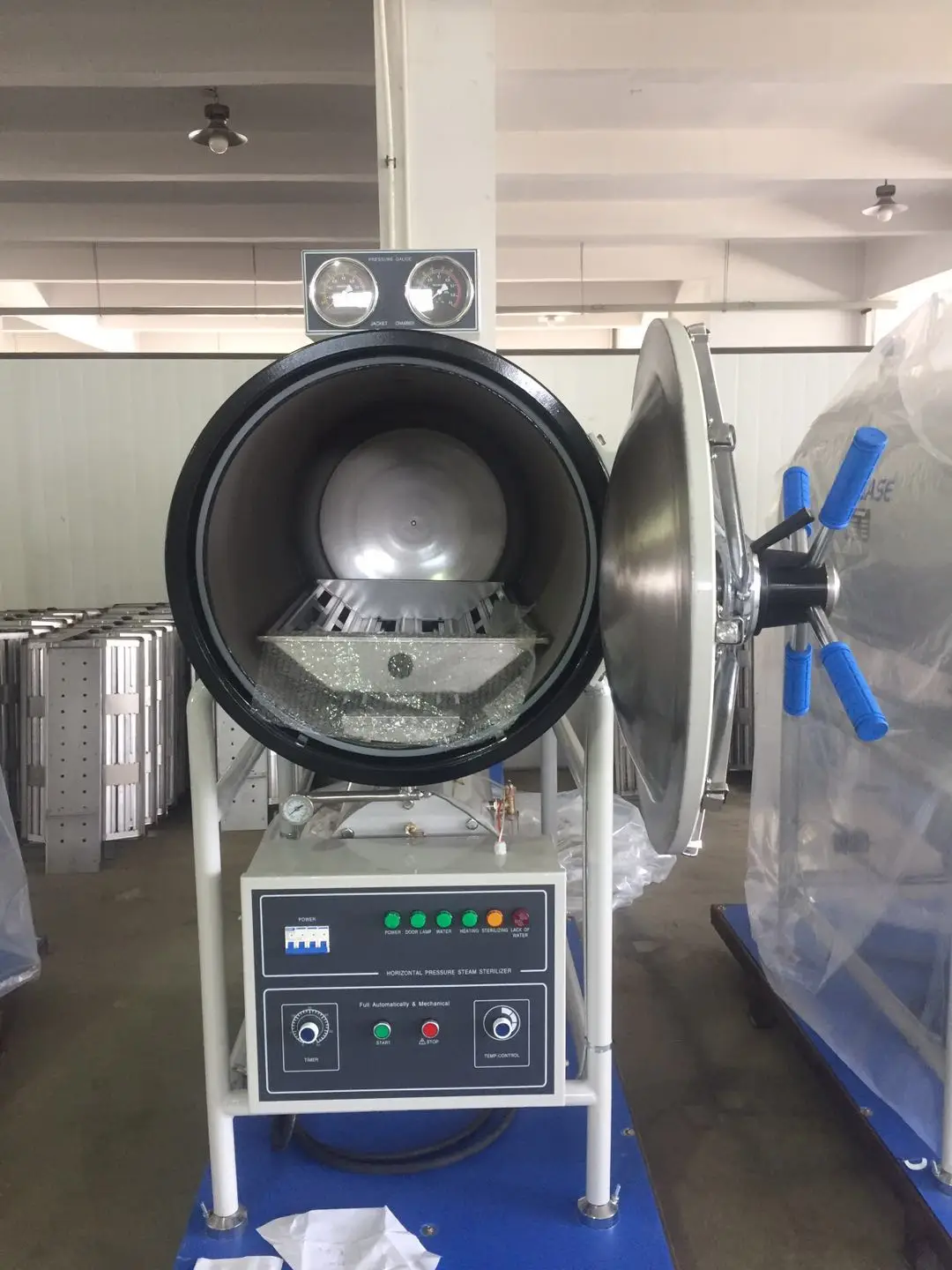

Detailed Images
