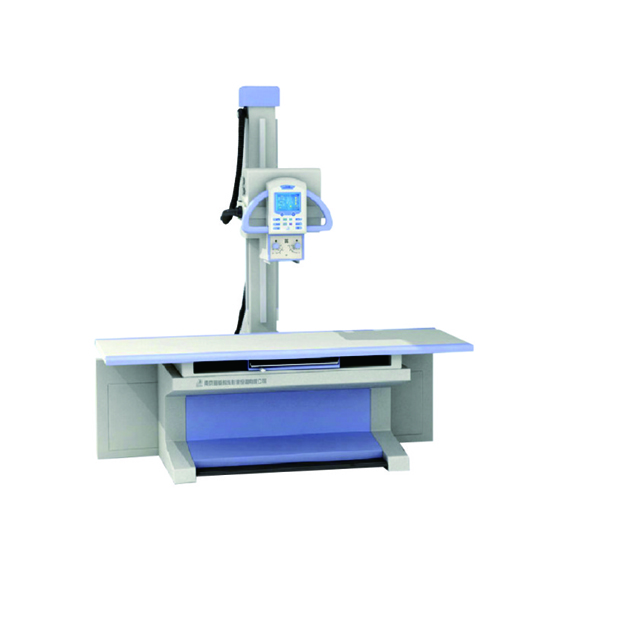

| High Frequency X-ray Radiograph System(200mA) | |
| Art. No. | XRY-HF200B |
| Output power | 25KW |
| Inverter Frequency | 40KHZ |
| X-ray tube | Rotary anode, dual-focus, |
| Large focus: 1.3mm,Small focus: 0.6mm | |
| Tube thermal capacity:900kJ | |
| Tube current | 200mA |
| Tube voltage | 40-125KV |
| Power supply | 380V 50Hz, Capacity:≥ 40k VA |
| Table size | 2000×760mm |
| Table height | ≤700mm |
| Table transverse movement | ≥210mm |
| Table longitudinal movement | ≥900mm |
| Grids cassette holder movement | ≥560mm |
| X-ray tube assembly rotation | ≥±90° |
| Rotation of the pillar | 4×90° |
| SID | 450-1200mm |
| Pillar movement along the table | ≥1370mm |
| Film size | 5"×7"-14"×17" |
| Bucky stand up&down movement | 472~1470mm |
Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply
of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality products.We have 20 years exporting experience ,and established business relationship with 50 countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.
Our products including three ranges, please kindly find the details as below:
1)Laboratory Equipments: Microscope,Centrifuge,Water Bath,Stirrer Hotplate,Autoclave&sterilizer,
(UV, VIS, UV/VIS) Spectrophotometer, Incubator & Oven and so on.
2)Medical Equipments:Infant Incubator and Warmer, Xray Machine, Ultrasound Scanner, Anesthesia
Machine, Medical Ventilator, Suction Apparatus,ECG Hematology Analyzer and so on.
3)Medical Furnitures: Operating Table, Hospital & Examination Bed, Wheel Chair, Bedside Cabinet,
Trolley, Arm Crutches, Stretcher and so on.
We"ll attended MANY MEDICAL FAIRS in many countries every year, such as Singapore, Dubi,
Amercia, like Medical Fair Asia ,Medical West Africa , FIME and so on.
Q:Are you trading company or manufacturer?
A:We are both manufacturer and trading company located in Changsha city,China.
Q:How long is your delivery time?
A:Generally it is 5-7 working days if the goods are in stock,or according to your quantity,it"s ≤30 working days.
Q:Do you provide 1 unit sample machine?
A:Yes,we could offer 1 unit sample machine,and make a PI for you including machine cost and shipping charge.
Q:What is your ways of payment?
A:T/T,L/C,Paypal,Western union,moneygram are all acceptable for us.
Q:How about your quality warranty?
A:Yes,of course,we have 1 year"s quality warranty.
